AirTAC JQK Base-Plate Clamp Cylinders

JQK is a base-plate clamp cylinder for fixture work. Confirm pull direction, guide-pin size, workpiece hole, platform height, clamp thickness, sensor option and mounting before RFQ.

Request type

AirTAC originalModel matchingChina-source alternative

Start RFQ Send photo / label

JQKPin and Locking Cylinders

JQK base-plate clamp cylinder family reference — Verified product-family reference image.

Ordering code matching

Match each code segment

Send a photo if the code is incomplete

Code format

JQK [bore] [R] [guide pin] L45 T[thickness] [K/KN] [PT/G]Published JQK code layout

JQK 32 17 L45 T16 KJQK 63 R 24 L45 T16 KN G

①Bore (mm)	②Pull direction	③Guide pin / workpiece hole	④Platform height	⑤Clamp thickness	⑥Sensor / thread
32, 63	Blank normal; R reverse.	17/18, 19/20, 24/25, 29/30 mm published pairs.	L45: 45 mm.	T field; confirm published combination.	Blank none/PT; K PNP; KN NPN; G G thread.

About JQK

JQK is a fixture clamping assembly with a base plate and guide pin, not a plain linear cylinder. Match the pull direction, guide-pin and workpiece-hole combination, platform height and clamp thickness as one installed assembly.

Product matching reference

Compare the photo, drawing, and measurable details first

Identify from the photo

Full JQK code or readable label
Bore 32 or 63 mm and normal or reverse pull direction
Guide-pin diameter and matching workpiece-hole diameter
L45 platform height, clamp thickness and sensor option
Port thread and installed fixture dimensions

Drawing reference

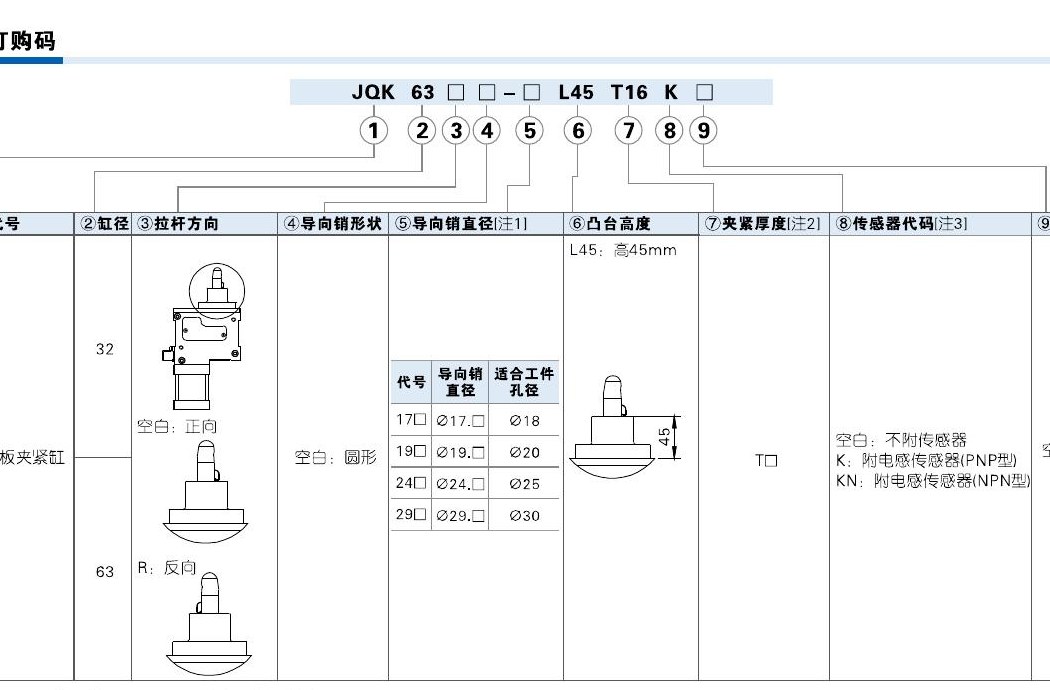

JQK base-plate clamp cylinder ordering code reference

Open drawing

Confirm JQK base-plate clamping construction and normal or reverse pull direction
Compare bore, guide-pin diameter, workpiece hole, platform height, clamp thickness, sensor option and fixture mounting

Key details for matching

Model patterns

JQK
JQK32
JQK63
JQK-63-R-L45-T16-K-G

Reference details

Product type: Base-plate clamp cylinder for fixture work
Published bores: 32, 63 mm
Published clamping force at 0.6 MPa: 1,800 N (32 mm); 3,300 N (63 mm)
Published maximum holding force at 0.6 MPa: 2,500 N (32 mm); 3,800 N (63 mm)
Published operating pressure: 0.3–0.8 MPa (43–116 psi)
Reference pages: PDF pages 1–2

Matching Questions

Can JQK be matched by clamping force alone?

No. Pull direction, guide-pin/workpiece-hole pair, platform height, clamp thickness and fixture mounting are all material. Send the full code plus a...
