AirTAC HFCQ Dustproof Pneumatic Grippers

HFCQ is a dustproof parallel two-jaw pneumatic gripper. Confirm the gripper size, jaw form, opening and closing stroke, gripping force, sensor requirement and mounting interface before RFQ.

Request type

AirTAC originalModel matchingChina-source alternative

Start RFQ Send photo / label

HFCQPneumatic Grippers

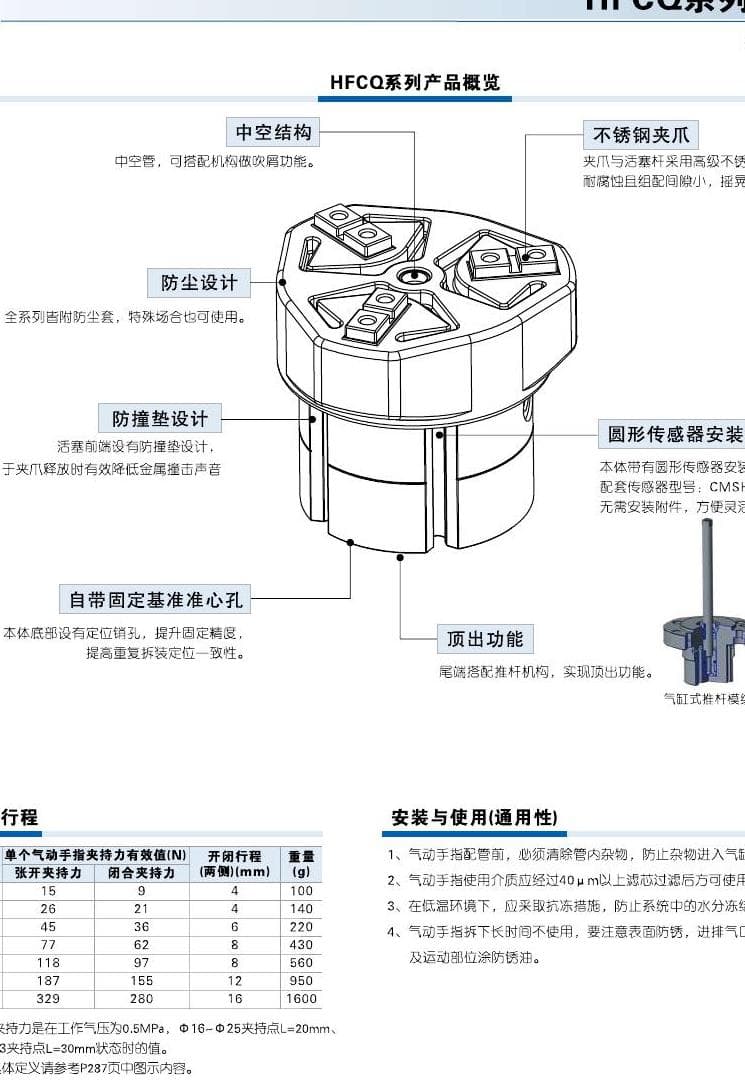

HFCQ dustproof parallel pneumatic gripper reference — Verified product-family reference image.

Read the model code

If the label is incomplete, send the readable parts together with a photo.

HFCQ 32 E

HFCQSeries

Dustproof parallel two-jaw gripper.

16 ... 63Size

Published gripper size.

EJaw form

Published jaw-form selection; compare the installed jaw geometry.

About HFCQ

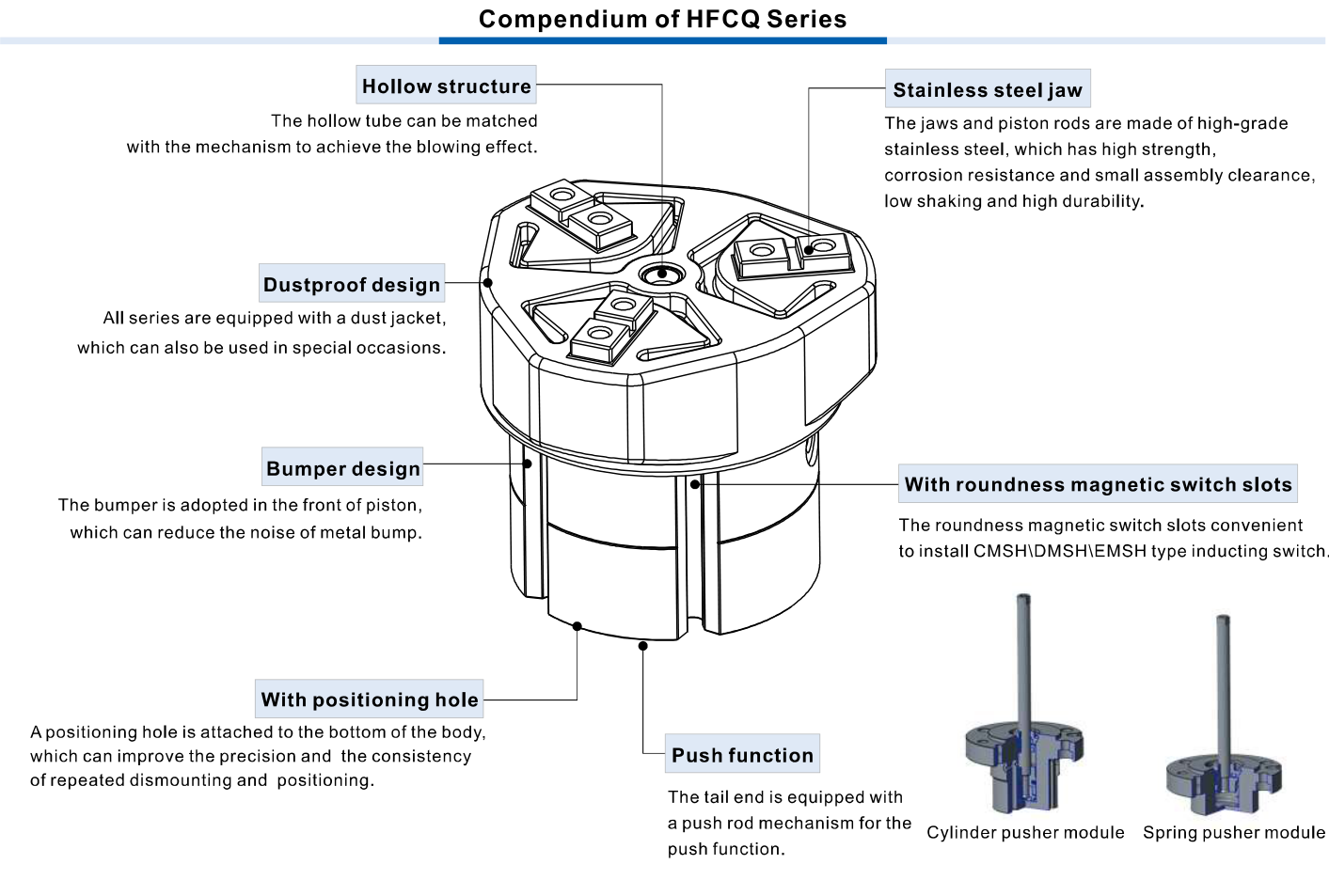

HFCQ is a parallel two-jaw gripper with a dustproof construction, hardened stainless-steel jaws and sensor-mounting provision. It must be matched as a gripper assembly: jaw form and travel, gripping force, workpiece geometry and mounting are as important as nominal size.

Product matching reference

Compare the photo, drawing, and measurable details first

Identify from the photo

Full HFCQ code or readable nameplate
Size: 16, 20, 25, 32, 40, 50, or 63
Jaw form and opening/closing direction
Required gripping force, stroke and workpiece geometry
Sensor option, jaw/mounting interface and installed clearance

Drawing reference

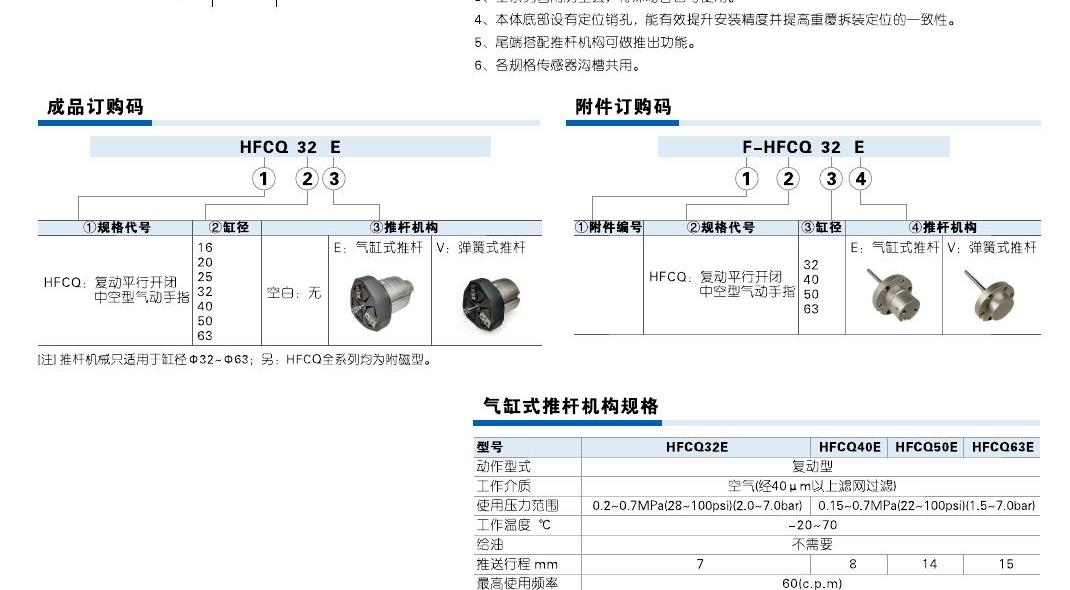

HFCQ pneumatic gripper ordering code reference

Open drawing

Confirm the HFCQ parallel two-jaw dustproof structure and jaw form
Compare bore, opening/closing stroke, gripping force, sensor option, jaw interface and installed clearance

Key details for matching

Model patterns

HFCQ
HFCQ 32 E
HFCQ32E
HFCQ-63

Reference details

Product type: Dustproof parallel two-jaw pneumatic gripper
Published sizes: 16, 20, 25, 32, 40, 50, 63
Published operating pressure: 0.2–0.7 MPa; refer to the selected size table
Published temperature range: -20–70 °C
Reference pages: PDF pages 1–2

Matching Questions

Can HFCQ be selected from nominal size alone?

No. Match the jaw form, stroke, gripping force, workpiece geometry, sensor arrangement and mounting face with the size. Send the complete code and a...
