Identify from the photo
- Full HLF code or label
- Table size and required stroke
- Guide/table mounting-hole pattern
- Sensor option, load direction and installed clearance

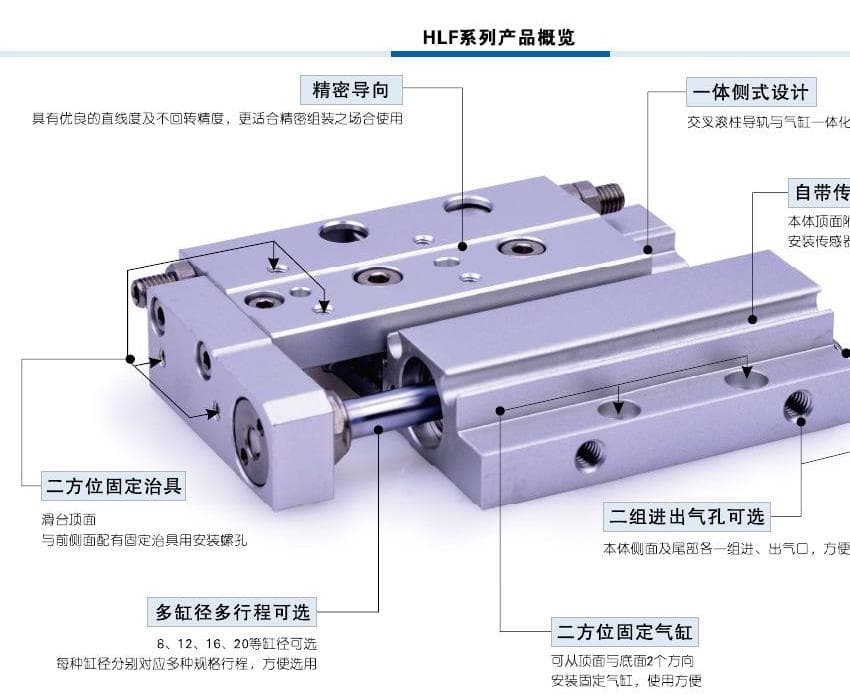

AirTAC HLF Thin Precision Slide-Table Cylinders
HLF is a low-profile precision slide-table actuator. Match the table dimensions, stroke, guide configuration, mounting pattern, sensor option and load direction as one assembly before RFQ.
Request type
AirTAC originalModel matchingChina-source alternative
HLFPrecision Slide Table Cylinders
About HLF
HLF is selected as a slide-table assembly, not by cylinder bore alone. Its low-profile table geometry and guide arrangement are primary replacement checks.
Product matching reference
Compare the photo, drawing, and measurable details first

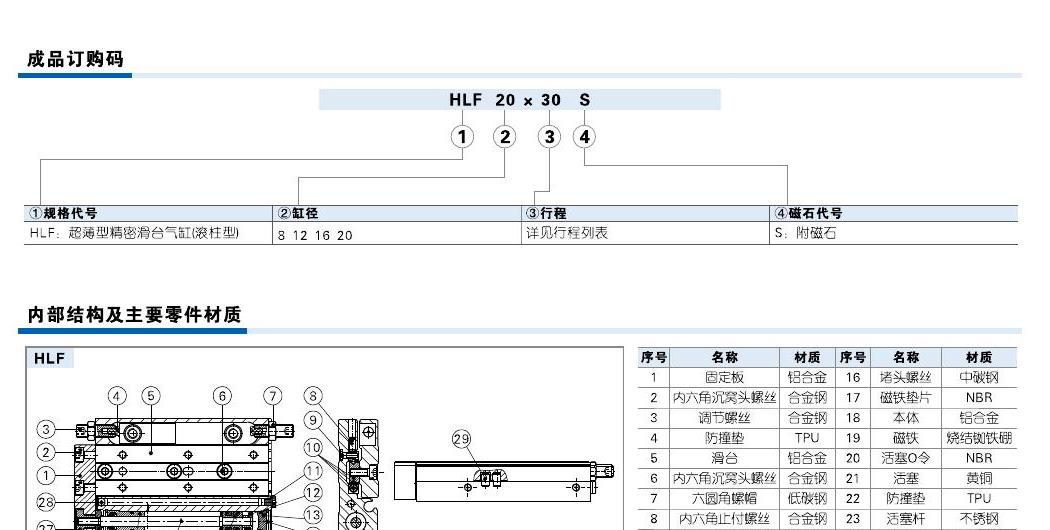

Drawing reference
- Confirm HLF low-profile slide-table size and stroke
- Compare table geometry, mounting holes, guide structure, load direction and installed clearance
Key details for matching
Model patterns
- HLF
Reference details

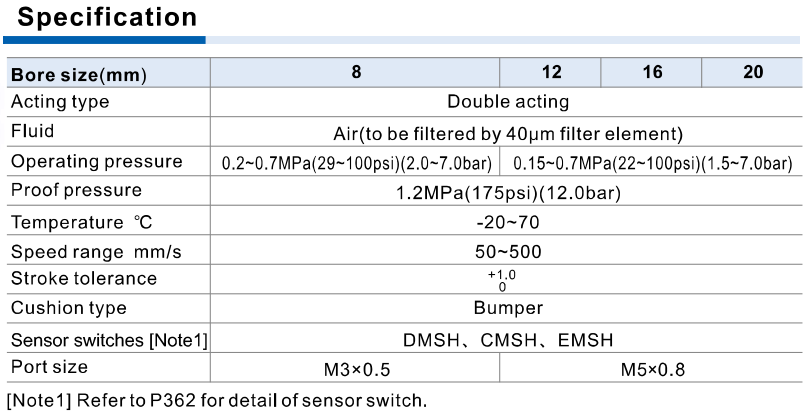

- Product type: Thin precision slide-table actuator
- Reference pages: PDF pages 1–2
Matching Questions
What must be checked for HLF replacement?
Confirm the complete code, table dimensions, stroke, mounting pattern, guide arrangement and load direction. A plain-cylinder comparison is not...
HLF
Include this series in a project RFQ
HLF Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
