HLH is a side-rail precision slide-table cylinder with an integrated miniature recirculating-ball linear guide. Match the table and rail assembly, bore, stroke, mounting pattern, ports,...
Ordering code matching

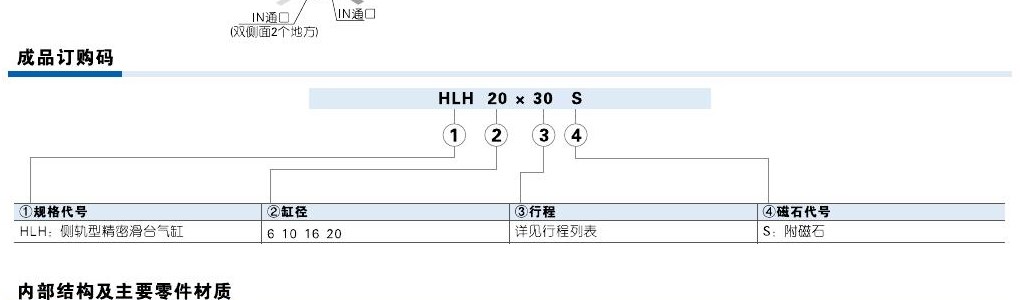

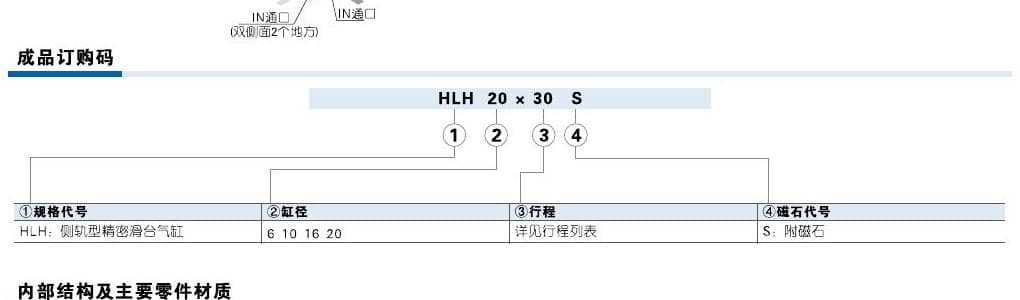

Code format
HLH [bore] × [stroke] [S]Published HLH code layoutHLH 6 × 5HLH 10 × 20HLH 20 × 30 S| ①Series | ②Bore (mm) | ③Stroke (mm) | ④Magnetic option |
|---|---|---|---|

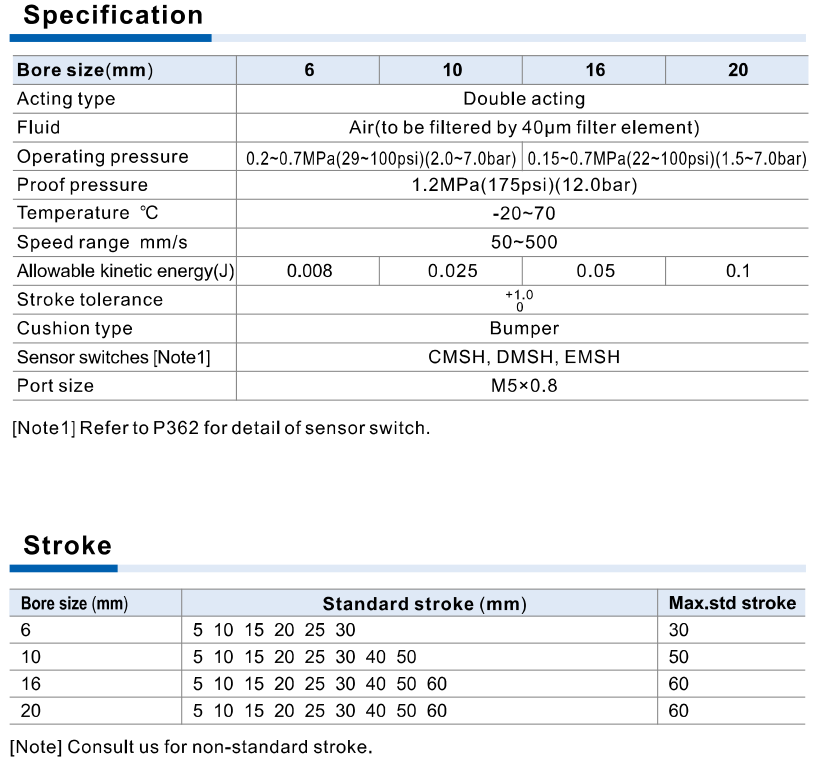

| HLH: side-rail precision slide-table cylinder. | 6, 10, 16, 20 | Ø6: 5–30; Ø10: 5–50; Ø16/20: 5–60, using the published increments. | S: built-in magnet option where required. |
If the label is incomplete, send the readable parts together with a photo.
HLH 20 × 30 SHLHSeries
Side-rail precision slide-table cylinder.
20Bore
Published bore: 6, 10, 16, or 20 mm.
30Stroke
Select from the published stroke table for the chosen bore.
SMagnetic option
S denotes the built-in magnet option in the published code.

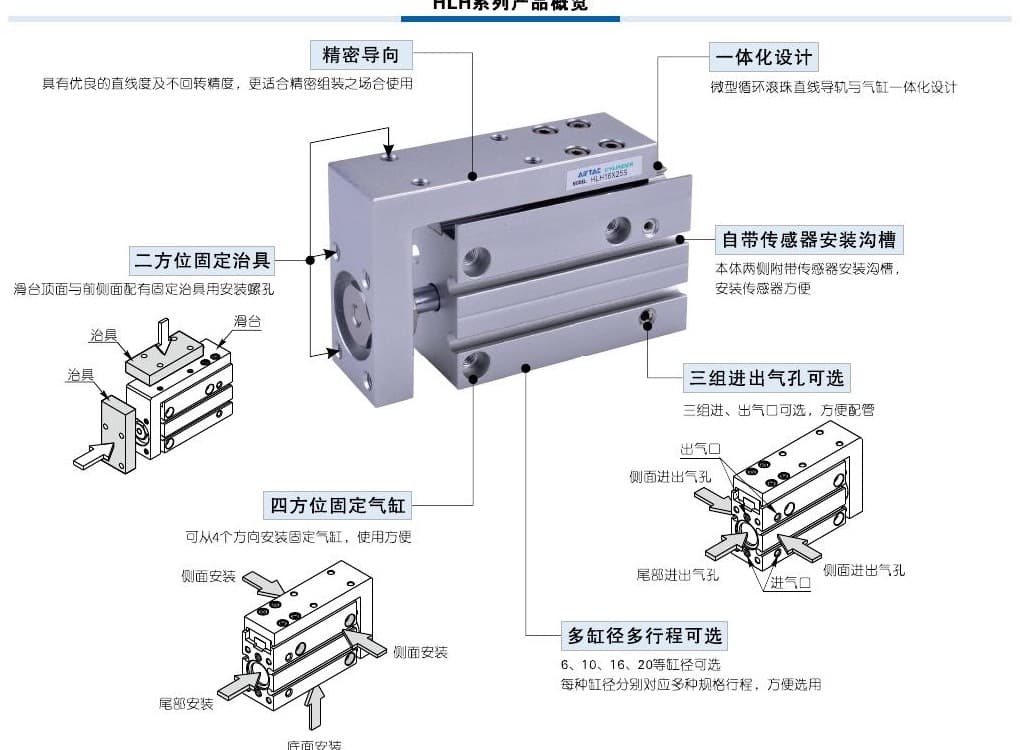

HLH is selected as a complete guided slide-table assembly, not as a plain pneumatic cylinder. The published structure combines the cylinder with miniature recirculating-ball side rails; table geometry, rail layout and load direction are therefore part of the match.
Product matching reference
HLH combines the cylinder and recirculating-ball side rails into one slide-table assembly. Stroke and bore alone do not establish fit; compare the...
