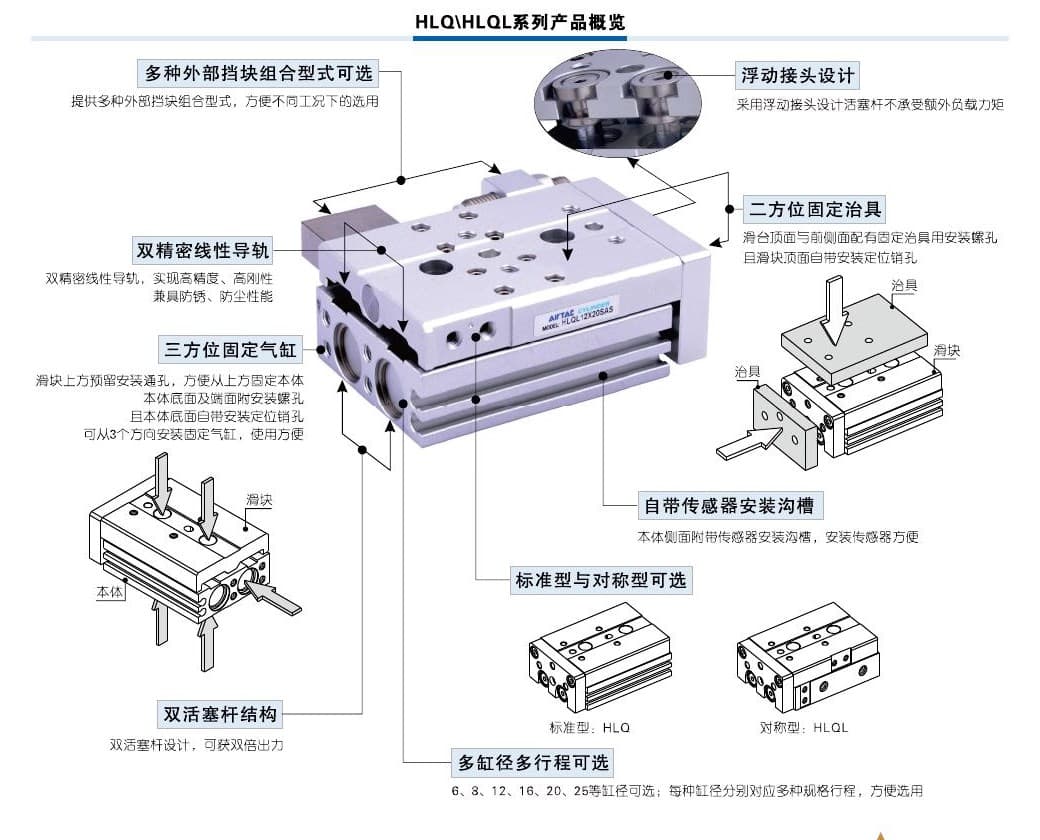

HLQ and HLQL are dual-axis precision slide-table cylinders with dual recirculating-ball linear rails. Select the HLQ standard or HLQL symmetrical arrangement first, then match bore,...

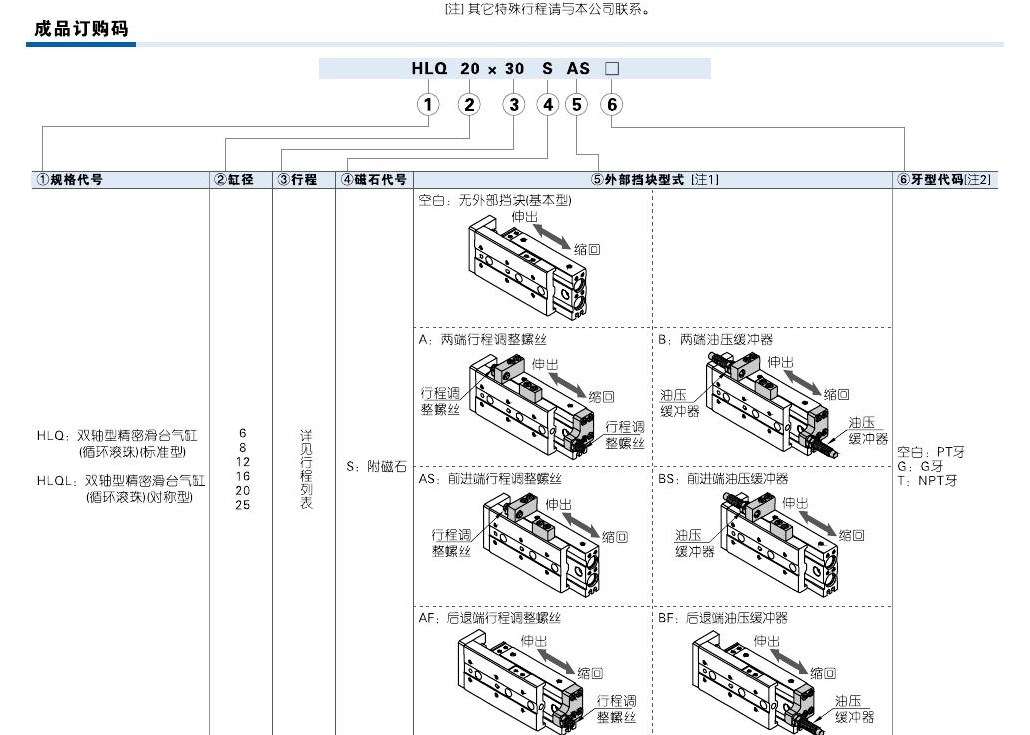

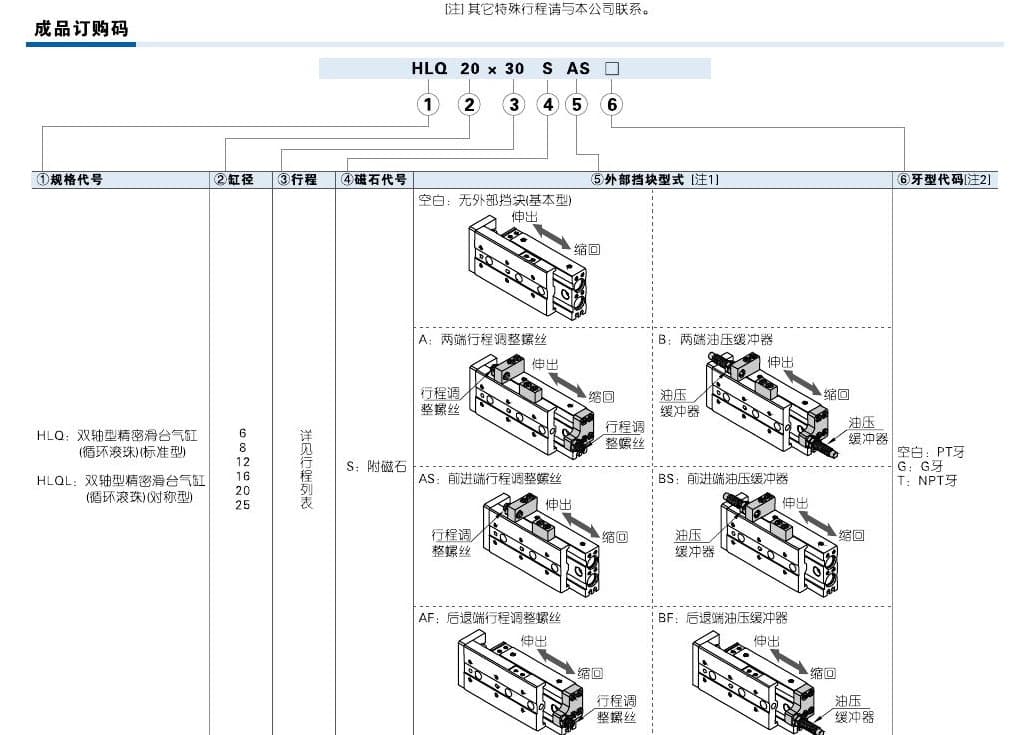

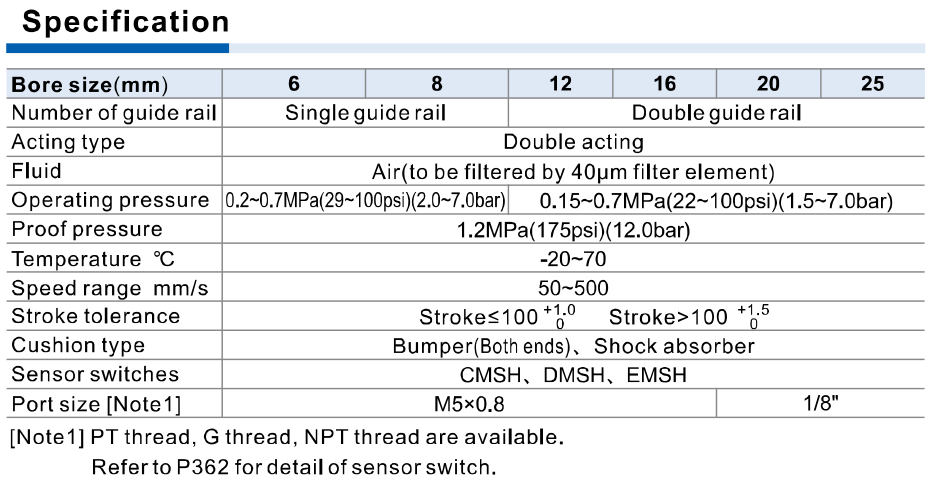

Ordering code matching
Code format
HLQ / HLQL [bore] × [stroke] [S] [A/B/AS/BS/AF/BF] [G/T]Published HLQ/HLQL code layoutHLQ 20 × 30 S ASHLQL 20 × 30 S BF| ①Structure | ②Bore (mm) | ③Stroke (mm) | ④Magnetic option | ⑤External stop | ⑥Port thread |
|---|---|---|---|---|---|
| HLQ: standard; HLQL: symmetrical arrangement. | 6, 8, 12, 16, 20, 25 | Ø6: 10–50; Ø8: 10–75; Ø12: 10–100; Ø16: 10–125; Ø20/25: 10–150, using published increments. | S: built-in magnet option. | Blank, A, B, AS, BS, AF, or BF; match the stop/adjustment structure. | Blank: PT; G: G thread; T: NPT thread (blank where the published port is M5). |
A similar body does not guarantee the same function. Confirm the function and interface first, then compare size and installed dimensions.
HLQ
Standard dual-axis slide-table arrangement
HLQL
Symmetrical dual-axis slide-table arrangement
If the label is incomplete, send the readable parts together with a photo.
HLQ 20 × 30 S ASHLQ / HLQLStructure
HLQ is standard; HLQL is the symmetrical arrangement.
20Bore
Published bore: 6, 8, 12, 16, 20, or 25 mm.
30Stroke
Select from the published stroke table for the chosen bore.
SMagnetic option
S denotes the built-in magnet option.
ASExternal-stop option
AS: front travel-adjustment screw; verify any A/B/AS/BS/AF/BF option against the installed assembly.
HLQ/HLQL is a dual-rail slide-table assembly, not a plain cylinder. HLQ is the standard arrangement; HLQL is the symmetrical arrangement. The source also publishes external-stop choices, so the table structure and stop option need confirmation with the code.
Product matching reference
No. They share the dual-rail family and ordering-code system, but HLQ is the standard arrangement and HLQL is the symmetrical arrangement. Confirm...
HLQ
