HLS and HLSL are dual-axis precision slide-table cylinders using cross-roller rails. Select the HLS standard or HLSL symmetrical arrangement first, then match the rail structure, bore,...

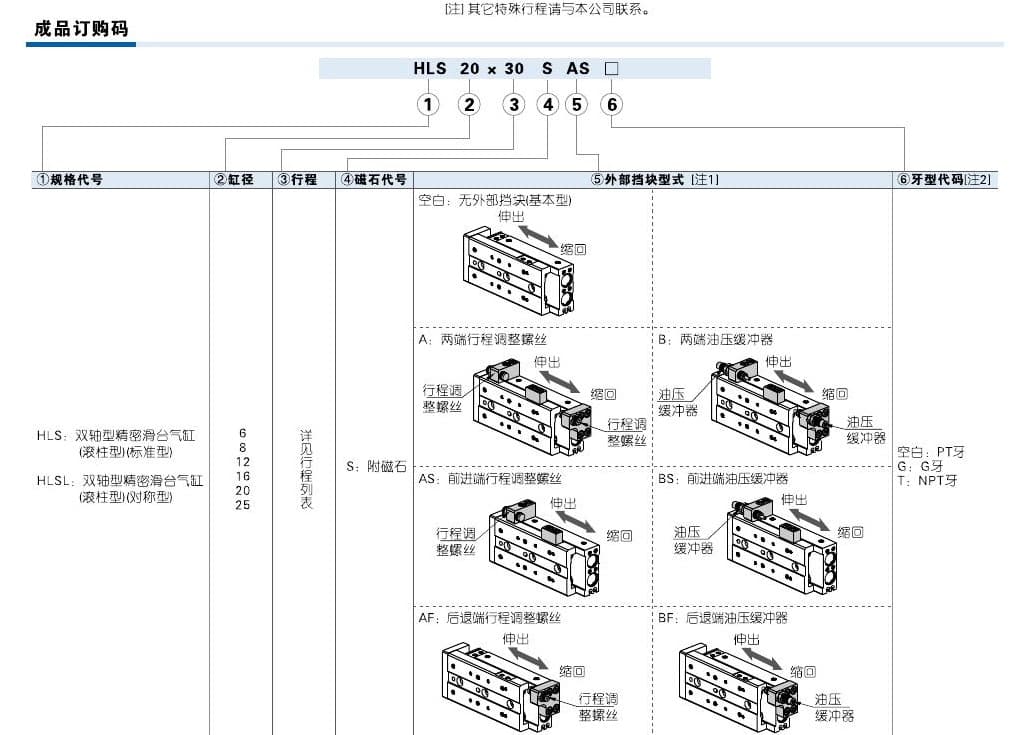

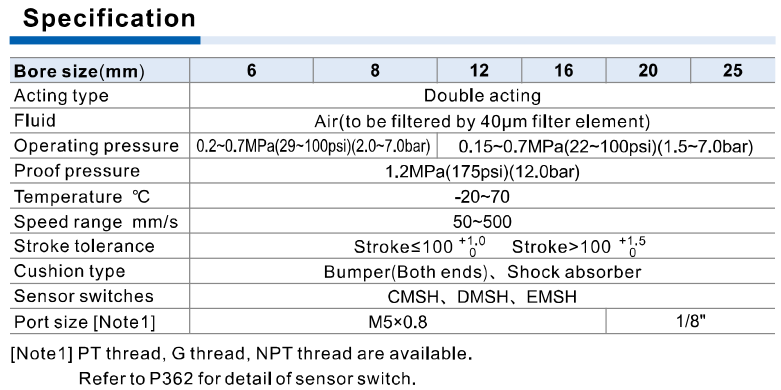

Ordering code matching
Code format
HLS / HLSL [bore] × [stroke] [S] [A/B/AS/BS/AF/BF] [G/T]Published HLS/HLSL code layoutHLS 20 × 30 S ASHLSL 20 × 30 S BF| ①Structure | ②Bore (mm) | ③Stroke (mm) | ④Magnetic option | ⑤External stop | ⑥Port thread |
|---|---|---|---|---|---|
| HLS: standard; HLSL: symmetrical cross-roller arrangement. | 6, 8, 12, 16, 20, 25 | Ø6: 10–50; Ø8: 10–75; Ø12: 10–100; Ø16: 10–125; Ø20/25: 10–150, using published increments. | S: built-in magnet option. | Blank, A, B, AS, BS, AF, or BF; match the stop/adjustment structure. | Blank: PT; G: G thread; T: NPT thread (blank where the published port is M5). |
A similar body does not guarantee the same function. Confirm the function and interface first, then compare size and installed dimensions.
HLS
Standard cross-roller slide-table arrangement
HLSL
Symmetrical cross-roller slide-table arrangement
If the label is incomplete, send the readable parts together with a photo.
HLS 20 × 30 S ASHLS / HLSLStructure
HLS is standard; HLSL is the symmetrical arrangement, both with cross-roller rails.
20Bore
Published bore: 6, 8, 12, 16, 20, or 25 mm.
30Stroke
Select from the published stroke table for the chosen bore.
SMagnetic option
S denotes the built-in magnet option.
ASExternal-stop option
AS: front travel-adjustment screw; verify any A/B/AS/BS/AF/BF option against the installed assembly.

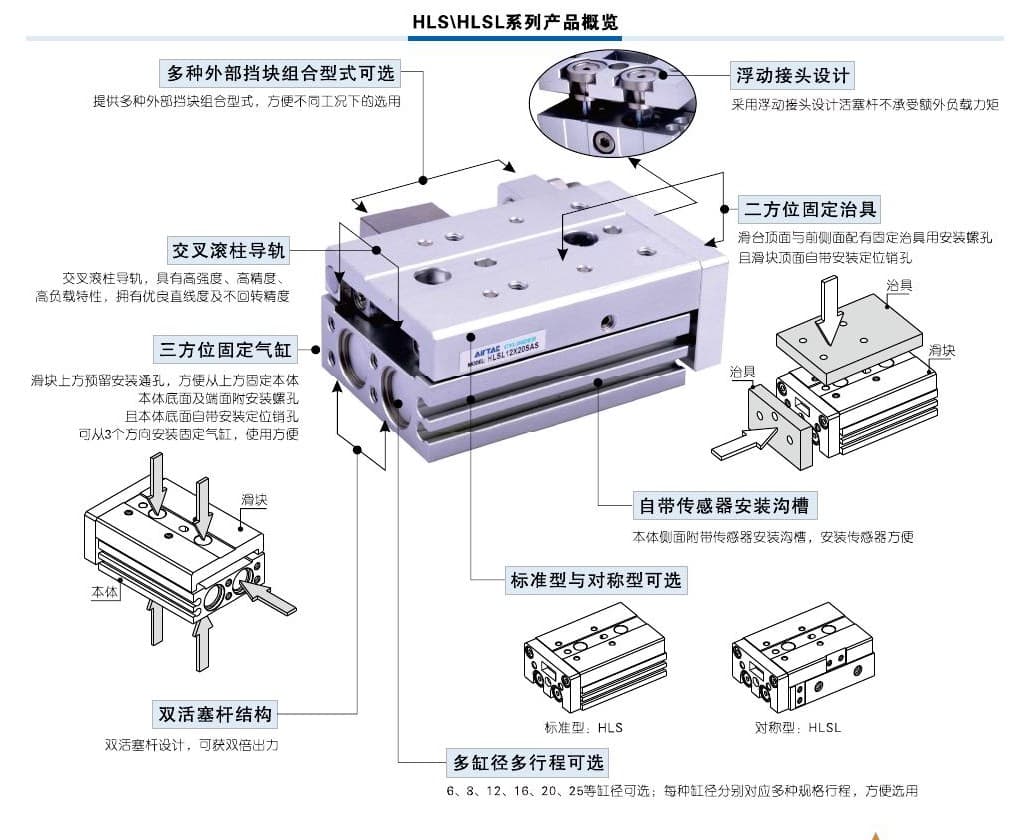

HLS/HLSL is a cross-roller slide-table assembly, not an interchangeable label for the HLQ ball-rail family. HLS is standard and HLSL is symmetrical; confirm the cross-roller rail structure and external-stop configuration with the installed assembly.
Product matching reference
No. HLS uses cross-roller rails, while the related HLQ family uses recirculating-ball rails. Confirm the guide structure, table geometry,...
