Choose the STW family first
A similar body does not guarantee the same function. Confirm the function and interface first, then compare size and installed dimensions.
STWA
Fixed-plate mounting
STWB
Body-fixed mounting
AirTAC STW Slide-Table Cylinders
STW is a double-acting slide-table cylinder with dual guide rods, integrated sensor mounting and selectable fixed-plate or body-fixed mounting. Match STWA or STWB, bore, stroke, ports,...
Request type
AirTAC originalModel matchingChina-source alternative
STWPrecision Slide Table Cylinders
Ordering code matching
Match each code segment
Code format

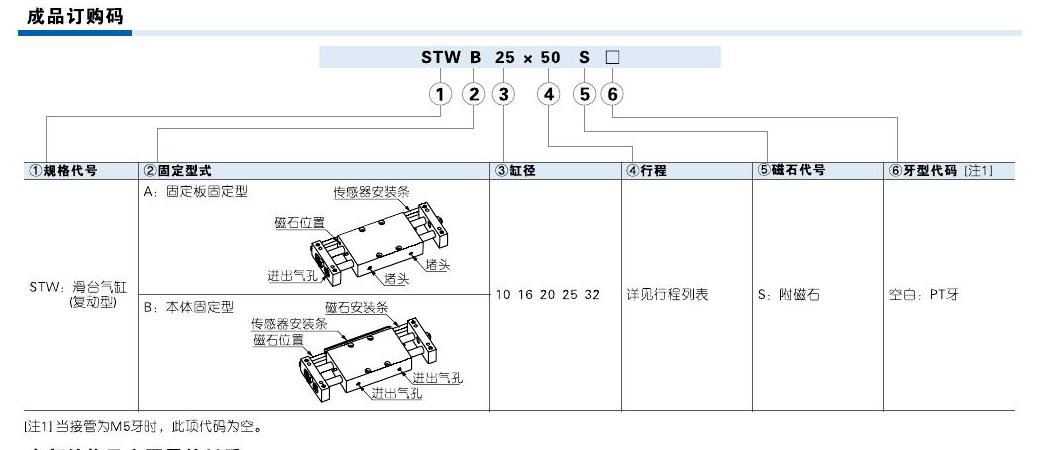

STW [A/B] [bore] × [stroke] [S] [PT/G/NPT]Published STW code layoutSTW A 16 × 25 SSTW B 25 × 50 S| ①Series | ②Mounting | ③Bore (mm) | ④Stroke | ⑤Magnetic option | ⑥Port thread |
|---|---|---|---|---|---|
| STW: guided slide-table cylinder. | A: fixed plate; B: body fixed. | 10, 16, 20, 25, 32 | Use the published stroke table. | S: magnetic option. | Blank: PT; G/NPT options follow the published code. |

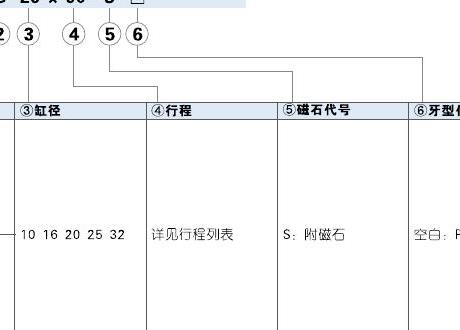

Read the model code
If the label is incomplete, send the readable parts together with a photo.
STW B 25 × 50 SSTWSeries
Guided double-acting slide-table cylinder.
A / BMounting
A: fixed-plate type; B: body-fixed type.
25Bore
Published bore: 10, 16, 20, 25, or 32 mm.
50Stroke
Select from the published stroke table.
SMagnetic option
S denotes the magnetic option.
About STW

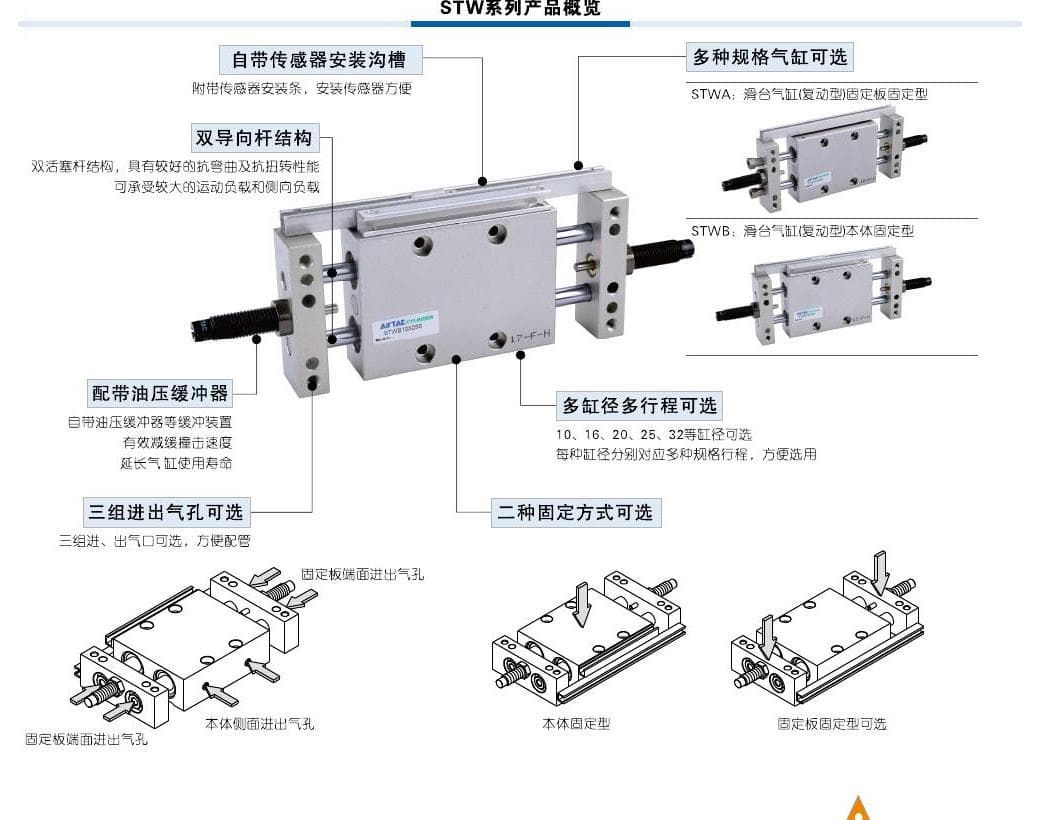

STW is a guided slide-table assembly rather than a plain cylinder. STWA fixes the plate and STWB fixes the body; both use a dual-guide-rod structure and the source shows oil-buffer and sensor options. Keep these choices in the model context instead of creating a page for every bore or stroke.
Product matching reference
Compare the photo, drawing, and measurable details first
Identify from the photo
- STW code or label with STWA/STWB mounting type
- Bore: 10, 16, 20, 25, or 32 mm
- Required stroke and table travel
- Dual-guide-rod, fixed plate/body mounting and mounting-hole pattern
- Oil buffer, sensor strip, port arrangement and installed clearance

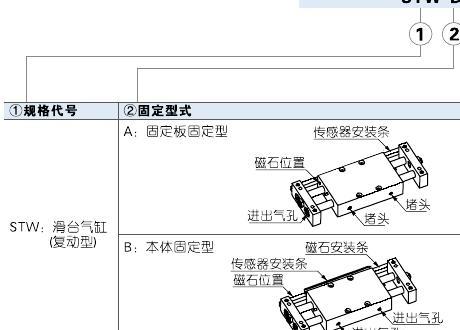

Drawing reference
- Select STWA fixed-plate mounting or STWB body-fixed mounting
- Compare dual-guide-rod structure, bore, stroke, oil buffer, sensor strip, port arrangement and installed clearance
Key details for matching
Model patterns
- STW
- STWA
- STWB
- STW B 25 × 50 S

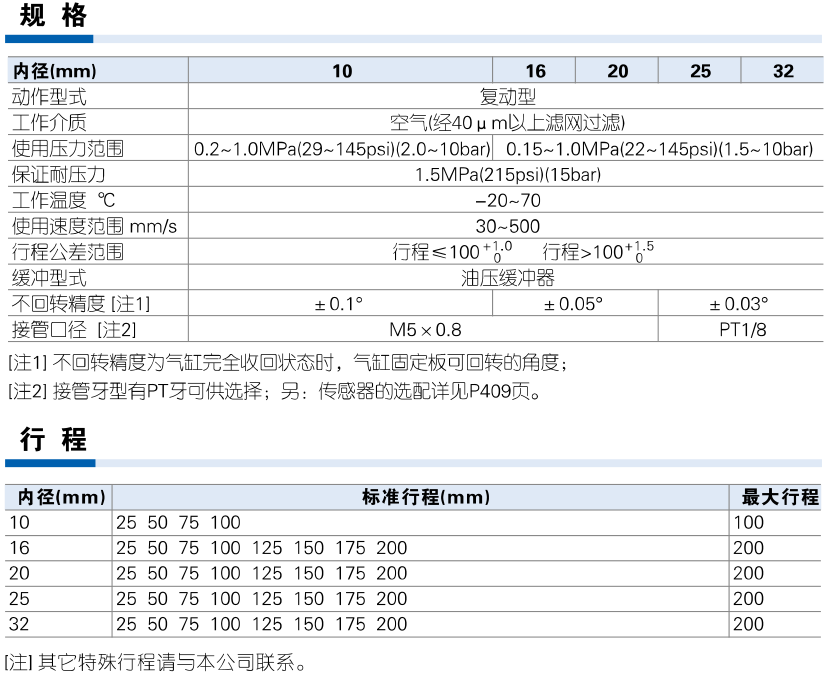

Reference details
- Product type: Double-acting guided slide-table cylinder
- Mounting types: STWA fixed plate; STWB body fixed
- Published bores: 10, 16, 20, 25, 32 mm
- Published pressure: 0.15–1.0 MPa (bore-dependent)
- Published speed: 30–500 mm/s
- Reference pages: PDF pages 1–2
Matching Questions
What is the difference between STWA and STWB?
STWA is the fixed-plate mounting type, while STWB is the body-fixed mounting type. Confirm the mounting interface and drawing along with bore and...
STW
