DPH is a digital pressure-sensor family with NPN or PNP switching and analogue output. Confirm the output type, pressure range, connection, port and cable before RFQ.

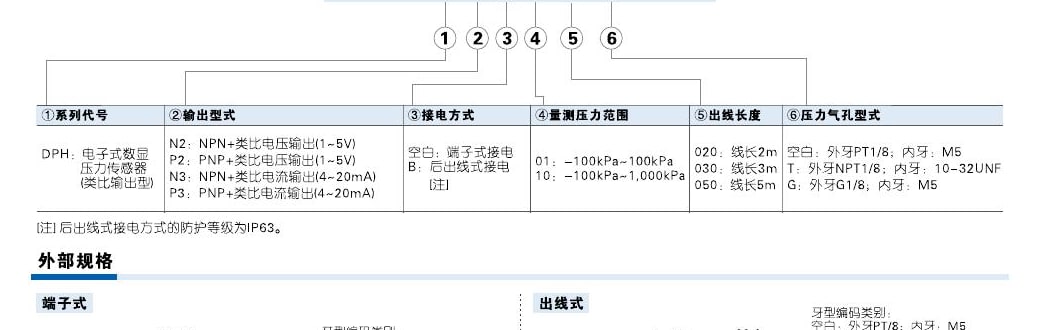

Ordering code matching
Code format
DPH [N2/P2/N3/P3] [terminal/lead] - [01/10] [020/030/050] [port]Published DPH code layoutDPH N2 □-01 020 □DPH P3 □-10 050 G| ①Output | ②Connection / range | ③Lead / port |
|---|---|---|
| N2/P2: NPN/PNP plus 1–5 V; N3/P3: NPN/PNP plus 4–20 mA. | Blank terminal or B lead connection; 01 −100 to 100 kPa, 10 −100 to 1,000 kPa. | 020/030/050 identify 2/3/5 m lead; match PT1/8, G1/8 or M5 internal port code. |
DPH combines a digital display, NPN or PNP switching output and a published 1–5 V or 4–20 mA analogue output. The 01 and 10 codes identify different measurement ranges; output form, terminal/lead connection, cable length and pneumatic port must be matched from the complete code.
Product matching reference
No. The source publishes different measurement ranges for 01 and 10. Confirm the full output code, range, connection, port and cable before RFQ.
DPH
DPH Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
