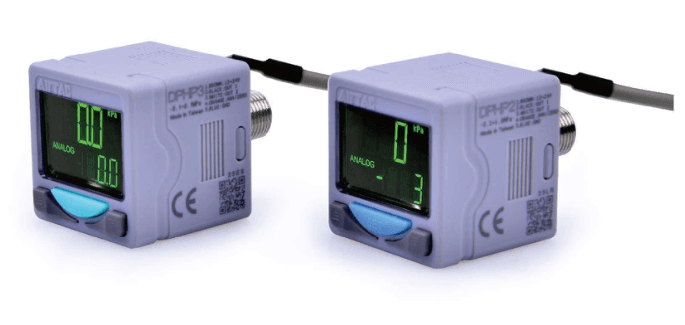

Two NPN/PNP switch outputs plus1–5 V or4–20 mA analog. Two compound-pressure ranges and three piping threads. Send the full model,photo or parts list for a quote.
Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.
Choose a type; send a model or photo if unsure.
DPHN2
2 × NPN +1–5 V ·01/10 range
DPHP2
2 × PNP +1–5 V ·01/10 range
DPHN3
2 × NPN +4–20 mA ·01/10 range
DPHP3
2 × PNP +4–20 mA ·01/10 range
Send the model, quantity and destination. For multiple items, attach a parts list or BOM.

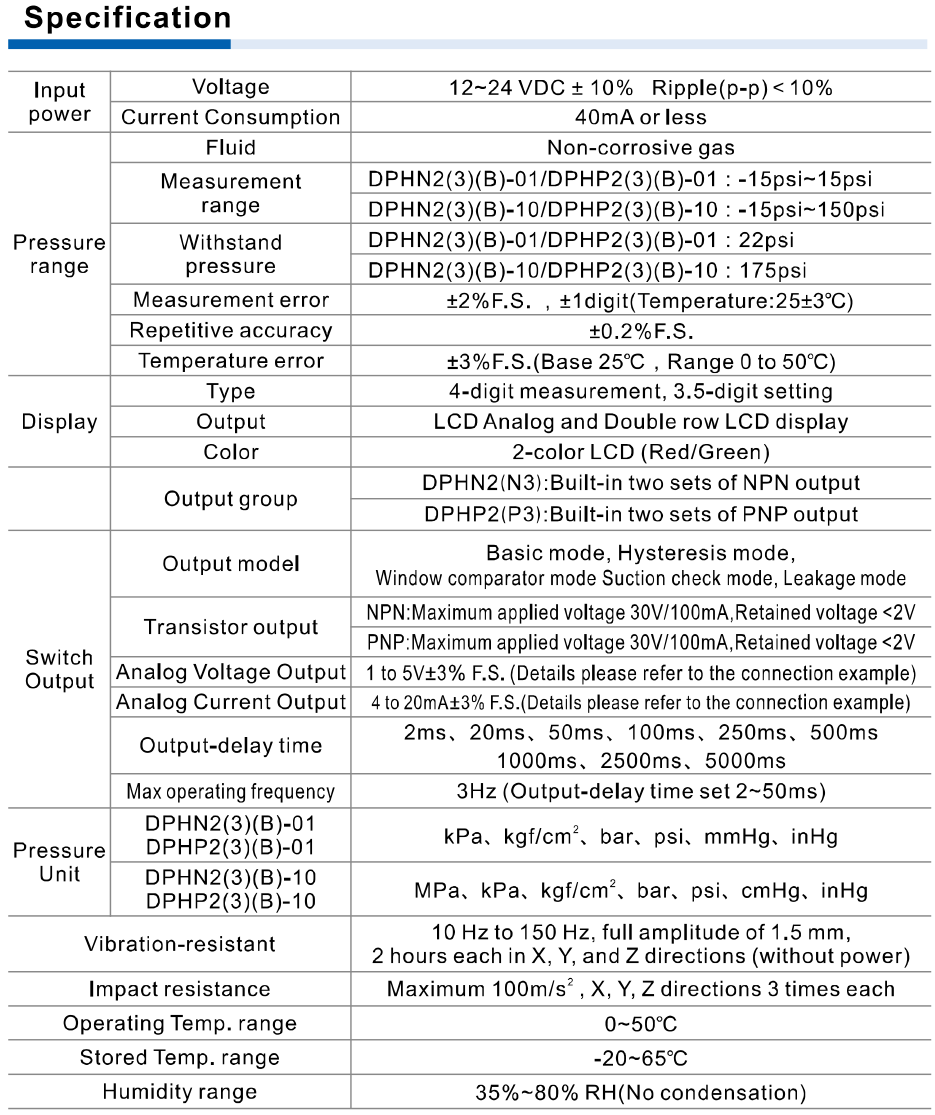

DPH measurement range supply output and environmental specifications
Helpful for Model Matching:
| Fluid | Non-corrosive gas / nicht korrosives Gas |
| Supply | 12–24 VDC ±10%;ripple <10% |
| 01 measurement range | −100–100 kPa |
| 10 measurement range | −100–1,000 kPa |
| Measurement error | ±2% FS ±1 digit (25±3°C) |
| Repeatability | ±0.2% FS |
| Operating temperature | 0–50°C |
| Storage temperature | −20–65°C |
| Humidity | 35–80% RH (no condensation) |
| Transistor outputs | 2 × NPN /2 × PNP;max30V/100mA |
| Residual voltage | <2 V |
| Pre-wired protection only | IP63 |
| Withstand pressure01 /10 | 22 /175 psi |
| Analog output | N2/P2:1–5 V;N3/P3:4–20 mA (±3% FS) |
| Current consumption | ≤40 mA |
Ordering code matching
Code format
DPH[N2/P2/N3/P3][blank/B]-[01/10][020/030/050][blank/G/T]Six ordering fieldsDPHN2-01020DPHN3B-10030G| ①–②Sensor and outputs | ③–⑤Entry,range and lead | ⑥Piping threads |
|---|---|---|
| N2=2 × NPN +1–5 V; P2=2 × PNP +1–5 V; N3=2 × NPN +4–20 mA; P3=2 × PNP +4–20 mA | Blank plug-in;B pre-wired.01=−100–100kPa;10=−100–1,000kPa.020/030/050=2/3/5m. | Blank PT1/8 male +M5 female;G G1/8 male +M5 female;T NPT1/8 male +10-32UNF female. |
If the label is incomplete, send the readable parts together with a photo.
DPHN3B-10030GSensor and outputsSensor and outputs
N2=2 × NPN +1–5 V; P2=2 × PNP +1–5 V; N3=2 × NPN +4–20 mA; P3=2 × PNP +4–20 mA
Entry,range and leadEntry,range and lead
Blank plug-in;B pre-wired.01=−100–100kPa;10=−100–1,000kPa.020/030/050=2/3/5m.
Piping threadsPiping threads
Blank PT1/8 male +M5 female;G G1/8 male +M5 female;T NPT1/8 male +10-32UNF female.
DPH has two transistor switch outputs plus analog:N2/P2=1–5V,N3/P3=4–20mA;N is NPN,P is PNP. Ranges01:−100–100kPa and10:−100–1,000kPa are compound ranges,not only vacuum or only positive pressure. Non-corrosive gas;12–24VDC ±10%,ripple<10%;operating0–50°C,storage−20–65°C,humidity35–80%RH without condensation. Measurement error±2%FS ±1digit at25±3°C;repeatability±0.2%FS. PT1/8 or G1/8 male with M5 female;T=NPT1/8 male with10-32UNF female. Blank plug-in,B pre-wired;IP63 is stated only for pre-wired. Cable020/030/050=2/3/5m. Confirm the machine input type and mounting drawing;send code,quantity and destination. Consumption≤40mA;switch output30V/100mA maximum,residual<2V. Analog accuracy±3%FS;voltage output impedance about1kΩ,current load50Ω minimum and300Ω at12V/600Ω at24V maximum. Orange is Analog/Zero:match operating mode and wiring;do not connect direct DC voltage to the analog output. Basic,hysteresis,window,suction-check and leakage modes are published. Withstand pressure01:22psi,10:175psi;these are not operating ranges.
No.01 covers−100–100kPa;10 covers−100–1,000kPa. Match measurement range rather than withstand pressure.
The catalogue states IP63 for pre-wired B only. Protection for other entries must be confirmed;do not transfer this rating.
DPH provides two switch outputs plus1–5V or4–20mA analog. DPS provides two switch outputs without a published analog output;DPS adds bottom-entry/M08 options.
