AirTAC UCS Coiled Polyurethane Pneumatic Tubing
UCS is coiled polyurethane pneumatic tubing. The verified UCS range publishes standard and low-pressure tables; match the OD/ID pair, material length, free-end configuration, fitting form...
Request type
AirTAC originalModel matchingChina-source alternative
UCSPU Tubes
Ordering code matching
Match each code segment

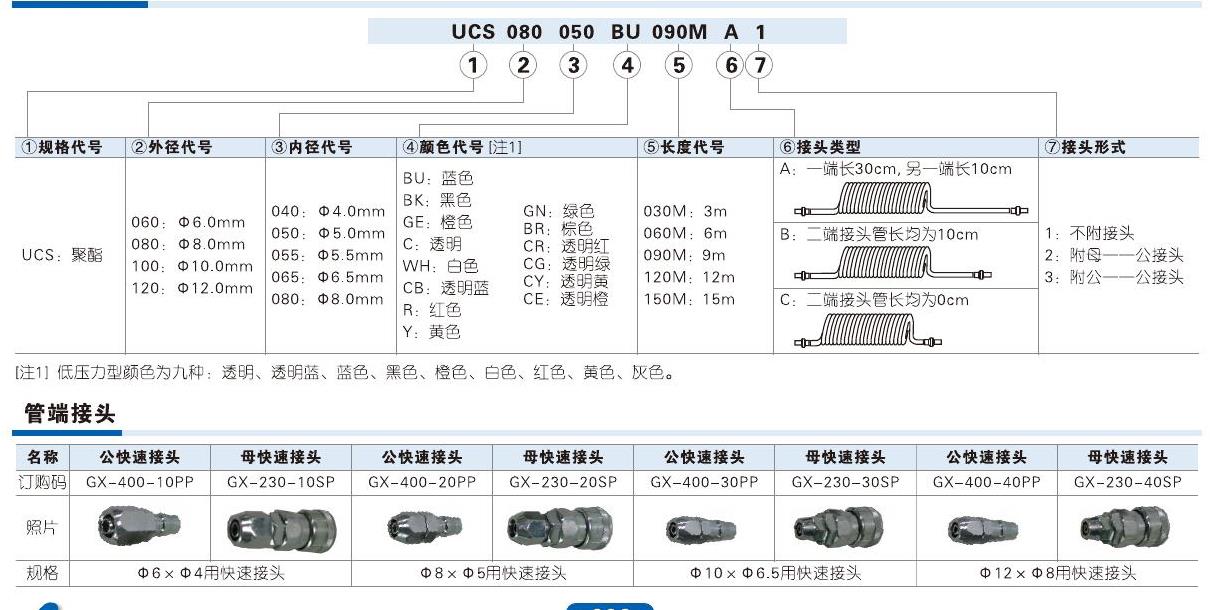

Code format
UCS [OD] [ID] [color] [material length] [end type] [fitting form]Published UCS code layoutUCS080050BU090MA1| ①Series | ②–③Tube dimensions | ④–⑤Colour and material length | ⑥–⑦End and fitting form |
|---|---|---|---|
| UCS: coiled polyurethane tube. | Published OD/ID pairs: 6/4, 8/5, 8/5.5, 10/6.5 or 12/8 mm. | Match the published colour and 3, 6, 9, 12 or 15 m material length. | A/B/C free-end type and 1/2/3 fitting form must match the published diagram. |
About UCS
UCS is the coiled polyurethane-tube form in the verified source. Its published code includes the tube dimensions, colour, material length, free-end type and fitting form, so it is not interchangeable with straight tubing by nominal diameter alone.
Product matching reference
Compare the photo, drawing, and measurable details first
Drawing reference
- Confirm UCS coiled form rather than straight tube
- Match the published OD/ID pair, standard or low-pressure table, material length, end type, fitting form and color
Key details for matching
Model patterns
- UCS080050BU090MA1
- UCS060040BU
- UCS

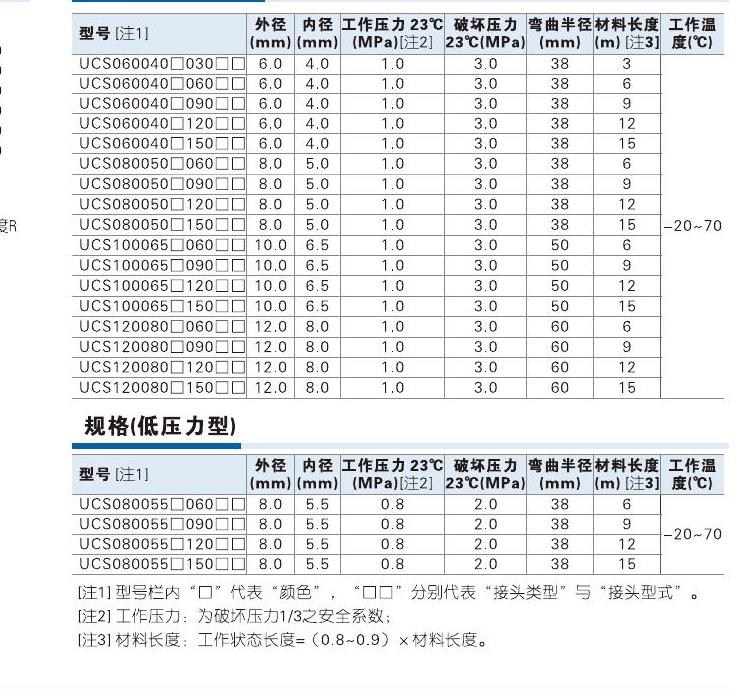

Reference details
- Product type: Coiled polyurethane pneumatic tubing
- Published standard working pressure: 1.0 MPa at 23 °C
- Published low-pressure working pressure: 0.8 MPa at 23 °C for UCS080055
- Published temperature range: −20 to 70 °C
- Reference page: PDF page 1
