AirTAC 083-JT2 Push-In and Threaded Fitting Range

083-JT2 covers tube-to-tube push-in forms, thread-to-thread fittings and BKC tube-to-thread lock-nut forms. Confirm the connection type before matching any code.

Request type

AirTAC originalModel matchingChina-source alternative

Start RFQ Send photo / label

083-JT2Push-In Fittings

083-JT2 tube-to-tube push-in fitting product forms — Verified product-family reference image.

Ordering code matching

Match each code segment

Send a photo if the code is incomplete

Code format

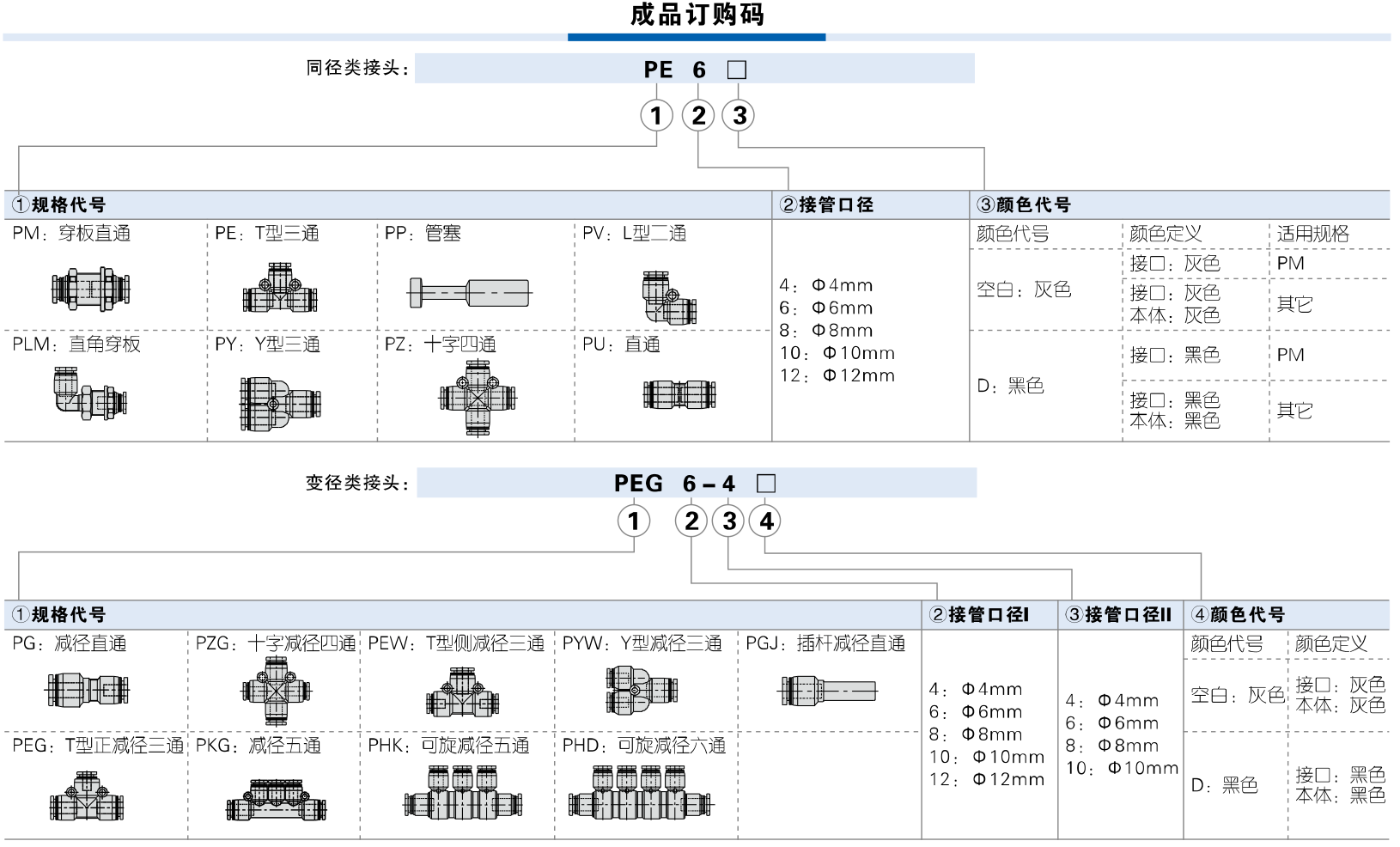

[PM / PE / PP / PV / PLM / PY / PZ / PU] [tube OD] [color]Published equal-tube code layout

[PG / PGJ / PEG / PZG / PEW / PYW / PKG / PHK / PHD] [tube OD I] [tube OD II] [color]Published reducing / multi-port code layout

[BB / BD / BU] [thread I] [thread II] or BZ [thread]Published thread-to-thread code layout

BKC [tube OD] [tube ID] [thread]Published BKC lock-nut code layout

PE6PEG6-4PZG8-6BB0101BKC0604-01

①Connection group	②Tube size	③Thread
Tube-to-tube, thread-to-thread, or BKC tube-to-thread; do not cross-match group prefixes.	4, 6, 8, 10 or 12 mm, with second OD or ID where the published form requires it.	PT1/8, PT1/4, PT3/8 or PT1/2 for thread forms; BKC also publishes M3 and M5.

About 083-JT2

The source contains three distinct connection groups on their own page ranges: tube-to-tube push-in forms on pages 1–4, all-metal thread-to-thread BB/BD/BU/BZ forms on page 5, and BKC lock-nut tube-to-thread forms on page 6. They remain clearly separated in matching; this page is the source-range entry point, not evidence that the groups are interchangeable.

Product matching reference

Compare the photo, drawing, and measurable details first

Identify from the photo

Complete code or an installed-fitting photo
First identify tube-to-tube, thread-to-thread or BKC tube-to-thread geometry
For tube forms: each published tube OD; for threaded forms: both thread fields
Confirm the material group and use only that group’s published operating limits

Drawing reference

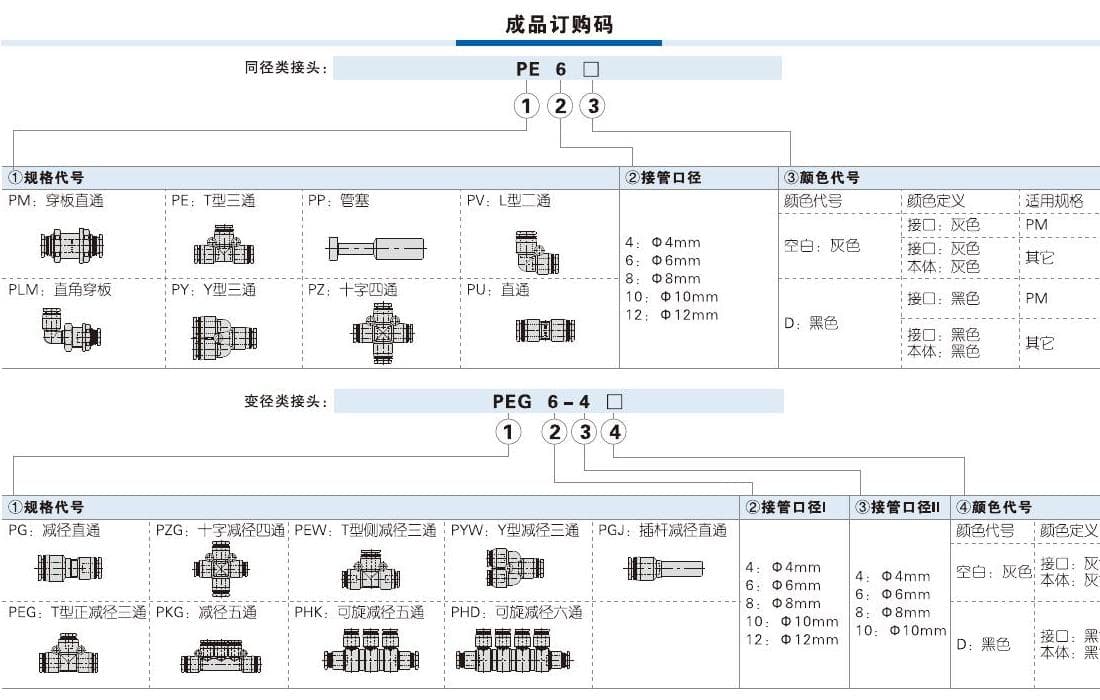

083-JT2 push-in fitting ordering-code layouts

Open drawing

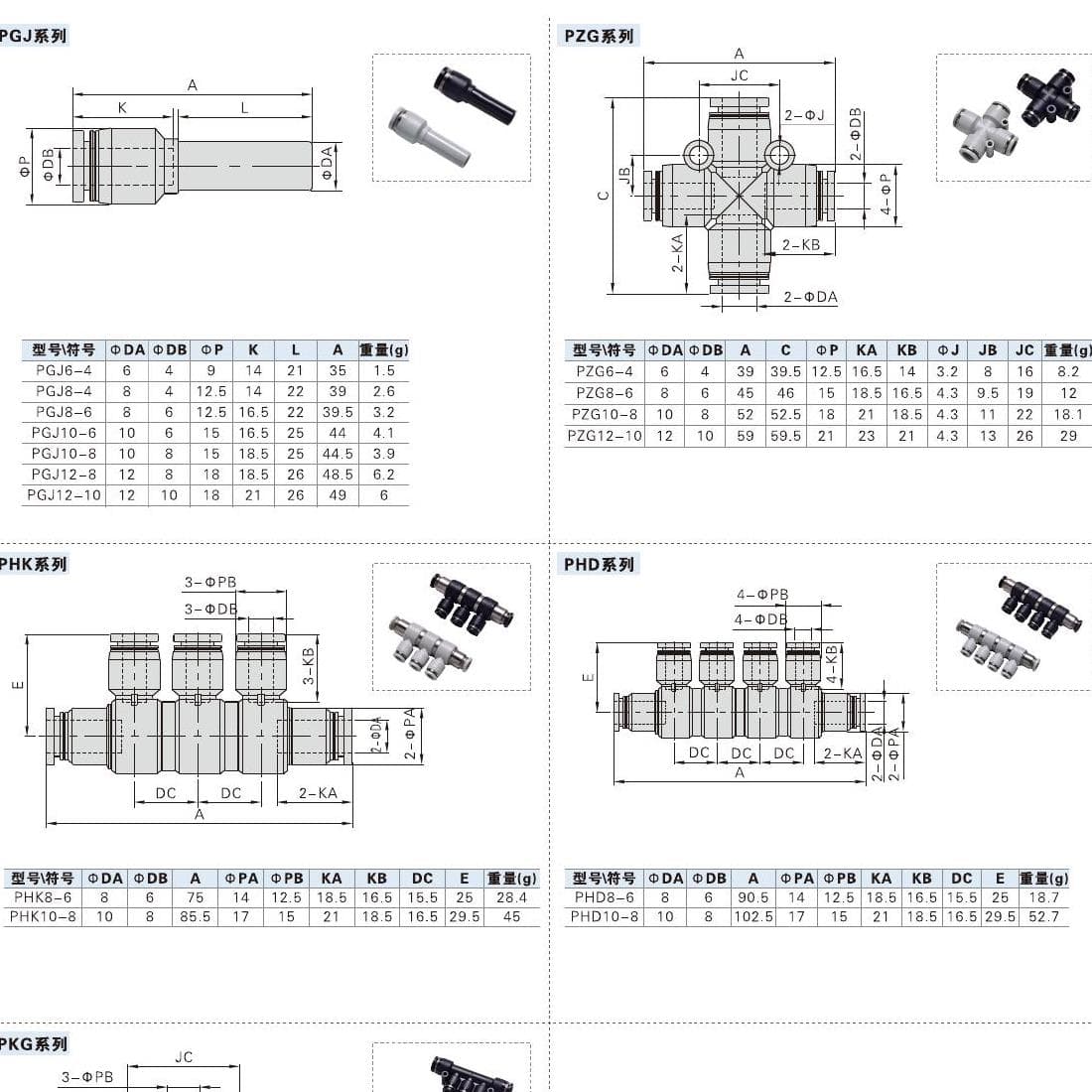

083-JT2 multi-port fitting dimension reference

Open drawing

Confirm whether the required connection is tube-to-tube, thread-to-thread or BKC tube-to-thread
Match every tube OD and thread field in the published table
Do not assume the operating limits of one material group apply to another

Key details for matching

Model patterns

083-JT2
PM
PE
PP

Reference details

Tube-to-tube group: Pages 1–4: 0–1.0 MPa, 1.5 MPa proof, −750 mmHg, −20 to 70 °C
Thread-to-thread group: Page 5: 0–1.0 MPa, 3.0 MPa proof, −750 mmHg, 0 to 150 °C
BKC lock-nut group: Page 6: 0–1.0 MPa, 3.0 MPa proof, −750 mmHg, 0 to 150 °C
Reference pages: PDF pages 1–6; limits are group-specific

Matching Questions

Can a tube-to-tube 083-JT2 fitting replace a threaded one?

No. The source places the connection groups on separate page ranges. Confirm whether both sides are tubing, both are threads, or the product is a...
