Identify from the photo
- Complete PHV code or a clear installed-valve photo
- 6, 8, 10 or 12 mm tube OD
- A three-port or B two-port handle marking
- Required inlet, outlet and exhaust orientation
AirTAC PHV Push-In Manual Valves
PHV is a manual push-in valve for 6, 8, 10 or 12 mm pneumatic tubing. Confirm the two-port or three-port handle marking and tube size before RFQ.
Request type
AirTAC originalModel matchingChina-source alternative
PHV-Push-In Fittings
Ordering code matching
Match each code segment

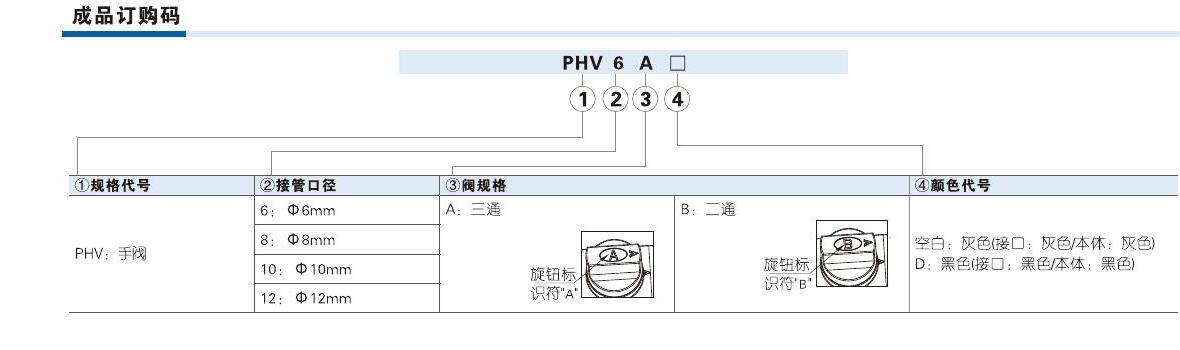

Code format
PHV [6 / 8 / 10 / 12] [A three-port / B two-port] [color]Published PHV code layoutPHV6APHV8BPHV10APHV12B| ①Tube size | ②Valve form | ③Color |
|---|---|---|
| 6, 8, 10 or 12 mm as published. | A: three-port; B: two-port, identified by the handle mark. | Grey or black as published. |
About PHV-
PHV is a manually operated push-in valve, not a passive tube fitting. The published A marking identifies the three-port form and B the two-port form. Tube size and black/grey colour remain code-level matching fields on this canonical family page.
Product matching reference
Compare the photo, drawing, and measurable details first

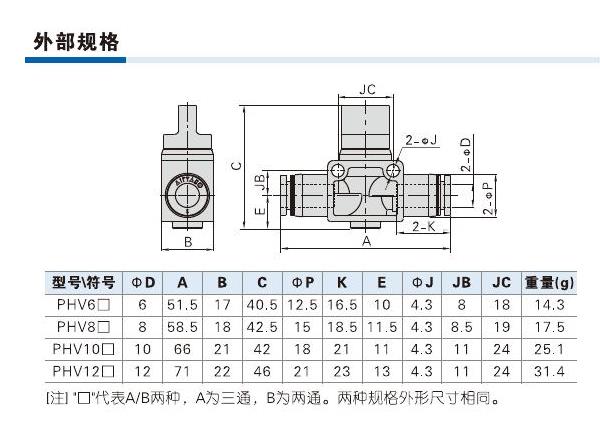

Drawing reference
- Confirm PHV manual valve rather than a passive push-in fitting
- Match 6, 8, 10 or 12 mm tubing
- Confirm A three-port or B two-port handle marking and the open/closed orientation
Key details for matching
Model patterns
- PHV6
- PHV8
- PHV10
- PHV12

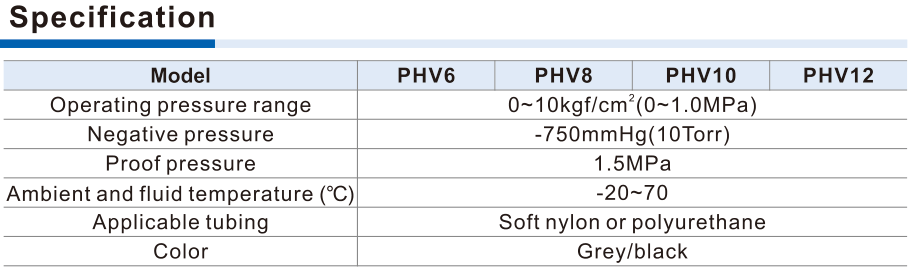

Reference details
- Product type: Manual push-in pneumatic valve
- Published working pressure: 0–1.0 MPa
- Proof pressure: 1.5 MPa
- Published vacuum: −750 mmHg (10 Torr)
- Published temperature range: −20 to 70 °C
- Reference page: PDF page 1
Matching Questions
What is the difference between PHV A and B?
The source identifies A as the three-port form and B as the two-port form. Confirm the handle marking and the required air path before requesting a...
