AirTAC PTL-M Mini Push-Lock Speed Controllers
PTL-M is the compact L-form push-lock speed-controller range for 4 or 6 mm tubing. Match the tube OD, M5 or PT1/8 thread, and A meter-out or B meter-in marking before RFQ.
Request type
AirTAC originalModel matchingChina-source alternative
PTL-M-202302280350040Push-In Fittings

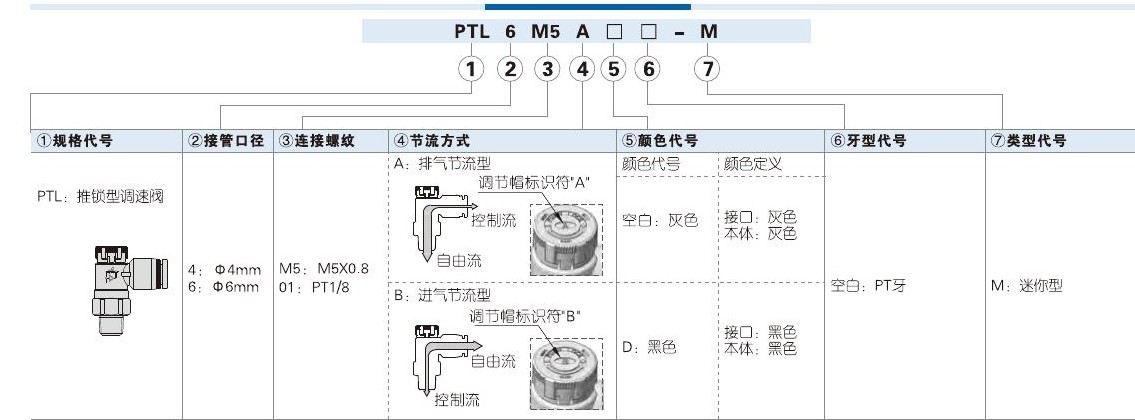

Ordering code matching
Match each code segment
Code format
PTL [4 / 6] [M5 / 01] [A / B] [color] - MPublished PTL-M code layoutPTL4M5A-MPTL401B-MPTL6M5A-MPTL601B-M| ①Tube and thread | ②Throttle direction | ③Configuration |
|---|---|---|
| 4 or 6 mm tube OD with M5 or 01 PT1/8 thread. | A: meter-out; B: meter-in. | M: mini PTL form. |
About PTL-M-202302280350040
PTL-M is the compact member of the published PTL range. It is limited to 4 and 6 mm tubing with M5 or PT1/8 connections; it is not the same size range as standard PTL. A identifies meter-out control and B meter-in control, so match the installed mark and circuit.
Product matching reference
Compare the photo, drawing, and measurable details first

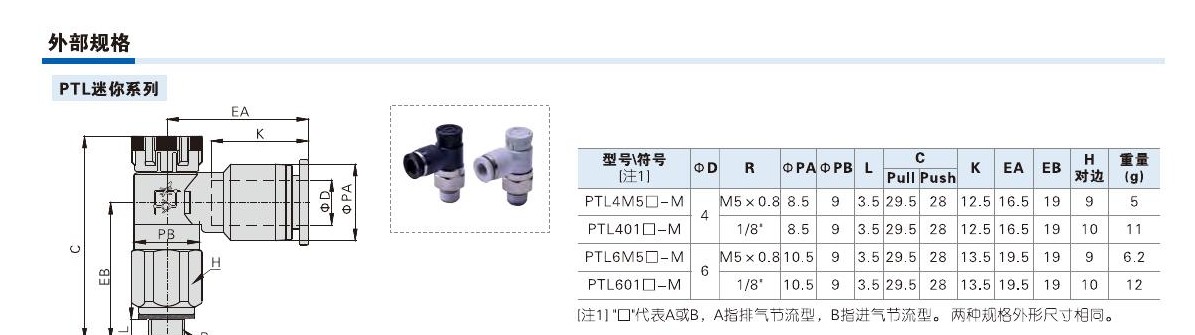

Drawing reference
- Confirm compact PTL-M rather than the 6–12 mm standard PTL range
- Match 4 or 6 mm tubing with M5 or PT1/8 thread
- Confirm A meter-out or B meter-in flow direction before RFQ
Key details for matching
Model patterns
- PTL4M5A-M
- PTL401A-M
- PTL6M5A-M
- PTL601A-M
Reference details
- Product type: Mini L-form push-lock speed controller
- Published working pressure: 0–1.0 MPa
- Proof pressure: 1.5 MPa
- Published vacuum: −750 mmHg (10 Torr)
- Published temperature range: −20 to 70 °C
- Reference page: PDF page 1
Matching Questions
How should I confirm the right AirTAC PTL-M-202302280350040 Push-In Fitting sourcing request?
Start with the installed label, dimensions, port or mounting details, and any current photo. These AirTAC sourcing or replacement push-in fitting...
Can I send photos or partial model codes only?
Yes. These pages are built for direct sourcing, replacement matching, or China-source alternative review when only photos, partial codes, or...
