HRS is a compact rack-and-pinion rotary cylinder with a 90 or 180 degree selection. Confirm the size, rotation angle, torque, worktable interface, thread and mounting condition before RFQ.
Ordering code matching

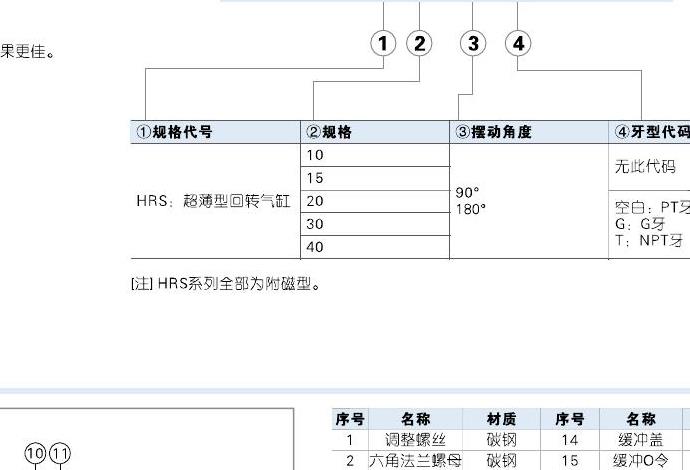

Code format
HRS [size]×[90°/180°] [PT/G/T]Published HRS code layoutHRS 20×90HRS 30×180 GHRS 10×90 T| ①Series | ②Size | ③Rotation angle | ④Port thread |
|---|---|---|---|
| HRS rotary cylinder. | 10, 15, 20, 30, 40 | 90° or 180°. | Blank PT; G G thread; T NPT thread. |
If the label is incomplete, send the readable parts together with a photo.
HRS 20×90 GHRSSeries
Rack-and-pinion rotary cylinder.
10 / 15 / 20 / 30 / 40Size
Published HRS platform size.
90° / 180°Rotation angle
Published mandatory angle selection.
GPort thread
Blank: PT thread; G: G thread; T: NPT thread.

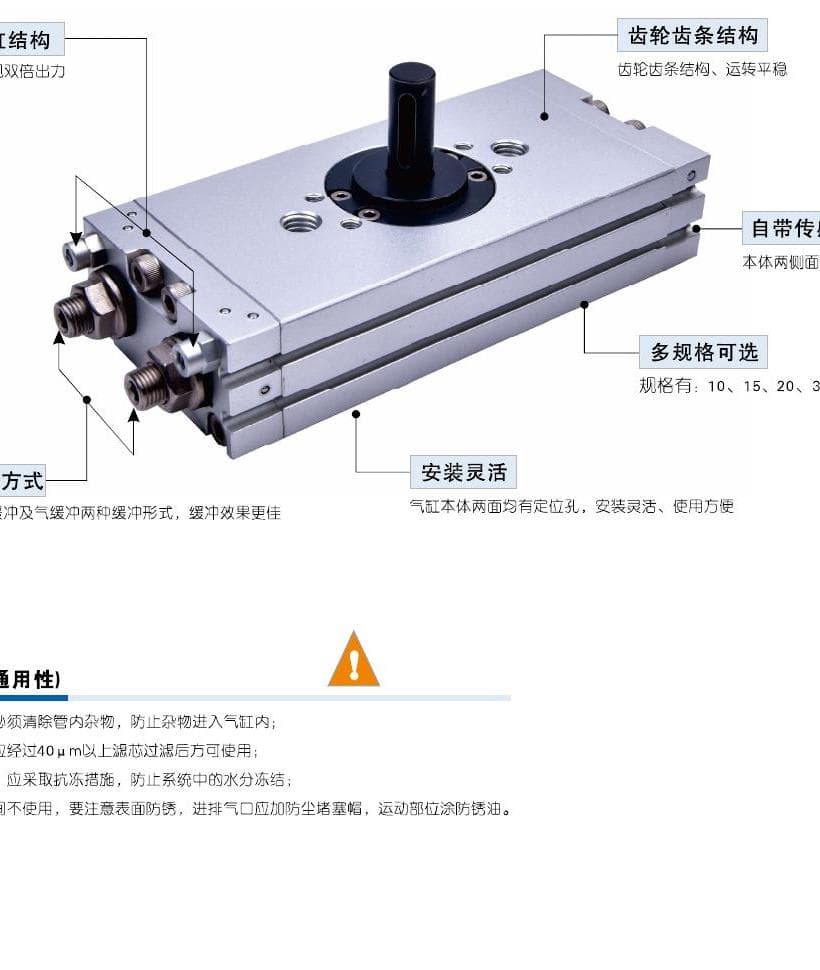

HRS is a compact rotary actuator assembly with rack-and-pinion transmission and dual-cylinder output. The 90 degree and 180 degree versions use different installed motion limits, so angle must be checked with the size and mounting interface rather than treated as a minor suffix.
Product matching reference
No. The rotation angle is a published ordering-code field and changes the movement limit. Confirm it together with the size, torque requirement,...
