AirTAC ACJ Adjustable Shock Absorbers
AirTAC ACJ adjustable shock absorbers. Confirm adjustable construction and published cap...
Official reference
Based on manufacturer documentation
Model support
For model confirmation
Parts lists
Code, photo, or BOM
Availability / lead time
By model and quantity
Sourcing route & inquiry details
AirTAC ACJ adjustable shock absorbers. Confirm adjustable construction and published cap option;ACJ has no ACA speed-code field. Send full code or label/drawing with impact mass,speed,operating cycle,mounting,quantity and destination for quotation.
Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.
Match an ACA / ACJ shock absorber
Part of the ACA Series family.

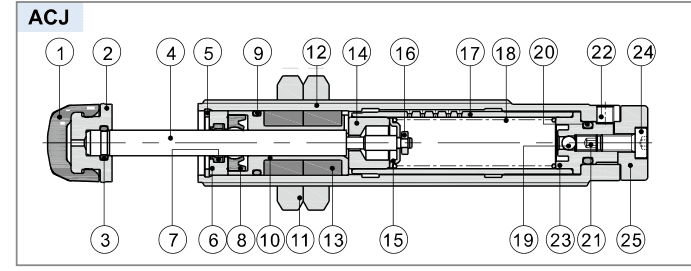

View family overview →Installation Drawings & Technical Specifications
AirTAC ACJ official ordering aca acj
Helpful for Model Matching:
- Complete ACA/ACJ code or installed label/drawing
- Body thread,stroke,cap and installed length
- ACA speed1/2/3 or ACJ adjustment
- Impact energy,mass,speed and cycles/hour
- Thrust/gravity energy,stop clearance,temperature
- Mounting accessory,quantity and destination
- Choose self-compensating ACA or adjustableACJ
- Match body/stroke,cap,length and mounting clearance
- Confirm impact energy/hourly capacity,mass,speed and cycles
- Use mechanical stop and verified accessory pairing
Catalogue Technical Specifications
| Family boundary | ACA self-compensating hydraulic impact shock absorber;ACJ manually adjustable hydraulic impact shock absorber. HR is an adjustable hydraulic speed controller, not this shock-absorber family. Body/stroke/speed/cap and mounting accessories remain matching fields, not separate series pages. |
| Ordering / thread | ACA[body][stroke]-[1/2/3][optionalN/F];ACJ[body][stroke][optionalN/F] with no speed-code field. Body male thread M8/M10/M12×1.0 and M14/M16/M20/M25/M27/M33/M36/M42×1.5;only published model pairs allowed. |
| ACA model pairs | 08×06;10×07;12×10/15;14×12/16/20;16×16/20/25;20×20/25/30/40;25×25/50;27×25/50;33×25/50;36×25/50 mm body/stroke code;22 published base models. ACA2725 is real;ACA2575 is not in this catalogue. |
| ACJ model pairs | 10×07;12×10;14×12;20×20;25×25/50;27×25/50;33×25/50;36×25/50;42×25/50/75 mm body/stroke code;15 published base models. No ACJ08/16 or ACJ1215. |
| ACA impact speed | 1 high speed/light load,2 medium speed/medium load,3 low speed/heavy load. Published maxima4/2/1m/s respectively;energy-speed curves define actual allowable region. Source recommends using20–80% of maximum absorbed energy. The 4m/s maximum does not apply to every ACA setting. |
| Cap options | Blank=plastic cap. ACA08–16 and ACJ10–14:blank/N no cap only. ACA/ACJ20–27:blank/F iron/N no cap. ACA33/36 and ACJ33/36/42:blank/F iron only,no publishedN. Cap changes installed end geometry;confirm source drawing. |
| Energy / effective mass | Per-impact energy J=N·m;hourly capacity J/h=N·m/h;max effective mass kg;impact speed m/s. All criteria and energy-speed curve must be satisfied together. Effective mass is not guaranteed payload. Include driven/propelling energy,not only kinetic energy;cycles/hour affects hourly heat capacity. |
| ACJ adjustment | Source wording scale0–9(8),factory6(4) is ambiguous;confirm scale and factory setting for the actual unit,do not assume universal4. Scale0 softest,9 hardest. Early rebound:soften toward0;end-of-stroke rebound:harden toward9. ACA rebound may require another speed type,not adjustment knob. Selection remains application-specific. |
| Installation / stop | Avoid lateral load;eccentric angle within3°.Securely lock body;do not use absorber as mechanical travel stop. Source says stop piston1mm before stroke end using positioning/precise adjustment stop. Multiple absorbers must act synchronously;moment force must remain within catalogue range. |
| Operating / handling | Published operating temperature−5 to70°C. Do not paint,weld or apply corrosive cleaning to body/rod. Scratched piston rod and external water/oil may reduce service life. No force increase or safety guarantee inferred from sealed body/QPQ claims. |
| Mounting torque | Maximum assembly torque N·m:ACA0806/M8=2;M10=3.5;M12=8;M14=11;M16=15;M20=24;M25=40;M27=63. Model33/36/42 not included in this torque table and require confirmation. ACA0806 female-thread prep note bottom diameter7.1(+0.1/0)mm;do not apply to other models. |
| Accessories / compatibility | F-ACA[size]LM stop collar,not shock absorber model or iron-capF. LM published08/10/12/14/16/20/25/27/33/36;FA flange36/42 only in source table. F-ACA08LM onlyACA0806;42FA onlyACJ4225/4250/4275. Shared F-ACA accessory prefix can fit ACJ by table;not blanket interchangeability. |
| Selection data to submit | Installed code/label/drawing;moving/effective mass;impact speed and direction;additional cylinder thrust/gravity/rotation energy;cycles per hour;available stroke/clearance;cap,stop collar/flange,temperature;quantity and destination. Catalogue no-load cylinder example at0.6MPa,size40/stroke12 gives9.04J;loaded example twice that is conditional,not universal doubling rule. |
| Representative ACJ ratings | ACJ1412:12mm stroke,20J,36000J/h,160kg,4m/s (different from ACA1412 18J). ACJ2020:20mm,60J,50000J/h,960kg,4m/s. ACJ3350:50mm,300J,110000J/h,4800kg;ACJ3625:25mm,220J,125000J/h,2500kg. ACJ4275:75mm,1050J,210000J/h,16800kg. ACA hourly-energy and effective-mass ratings do not apply to ACJ. |
Ordering Codes, Fit Verification & Specifications
Ordering code matching
Match each code segment
Code format
ACA [body][stroke]-[1/2/3][N/F] / ACJ [body][stroke][N/F]Size-specific cap options;no speed code onACJACJ2020ACJ2020NACJ4275F| 1Series | 2Body male thread | 3Stroke | 4ACA speed code | 5Cap |
|---|---|---|---|---|
| ACA self-compensating;ACJ adjustable. | Published size pairs only;thread pitch by size. | Use actual catalogue body/stroke matrix. | 1 high/light;2 medium/middle;3 low/heavy. ACJ omits this field. | Blank plastic,N none,F iron;allowed options depend on body size. |
Quick check
Can a matching model code confirm my load or let me substitute ACA and ACJ?
A matching code confirms published model fields only. ACA uses self-compensating speed types1/2/3;ACJ uses adjustable damping. Check per-impact and hourly energy,effective mass,speed,cap and mounting together. Send actual operating cycle and installed drawing;dimensions alone do not establish interchangeability.
