AirTAC HR hydraulic speed controllers for controlled feed motion: HR30 and HR60 have 30/60 mm maximum travel. Send the label, mounting dimensions, actual load and required feed speed with unit to confirm a suitable supply; the official speed-unit and drawing-label ambiguities require confirmation.
Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.
Match an HR hydraulic speed controller
AirTAC HR specification official Chinese reference
Helpful for Model Matching:
| Identity and model | HR is a hydraulic speed controller, not a pneumatic drive cylinder. Published ordering codes HR30 and HR60 mean 30 mm and 60 mm maximum travel. No bore, magnet, thread or shock-absorber suffix is published. |

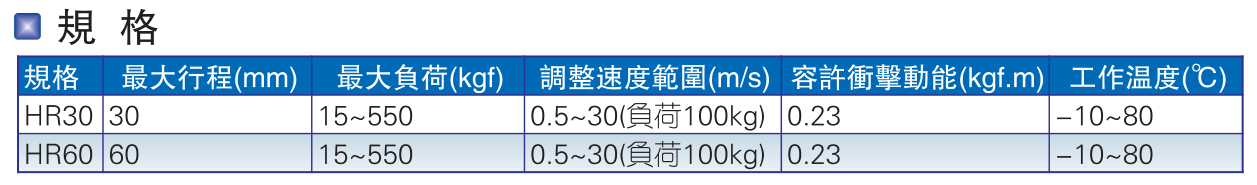

| Published load range | Both models: source table lists 15–550 kgf in its maximum-load column. Preserve kgf as force, not a universal 550 kg moving-mass approval. Confirm actual force, direction and drive arrangement. |
| Speed range needs unit confirmation | Source table literally prints adjustable speed 0.5–30 m/s at a 100 kg reference load. The unit/value needs confirmation before selection; do not silently convert it to mm/s, treat it as an assured operating-speed range or remove its reference load. |
| Impact energy is a separate source limit | The table includes permissible impact energy 0.23 kgf·m for both models. This does not change HR into a shock-absorber series or establish a complete impact-energy-per-cycle/per-hour selection method. Confirm the intended feed duty. |
| Temperature | Source working temperature −10 to 80 °C. Pneumatic working pressure, service interval and cycle life are not specified for this model; other cylinder or absorber ratings do not apply. |

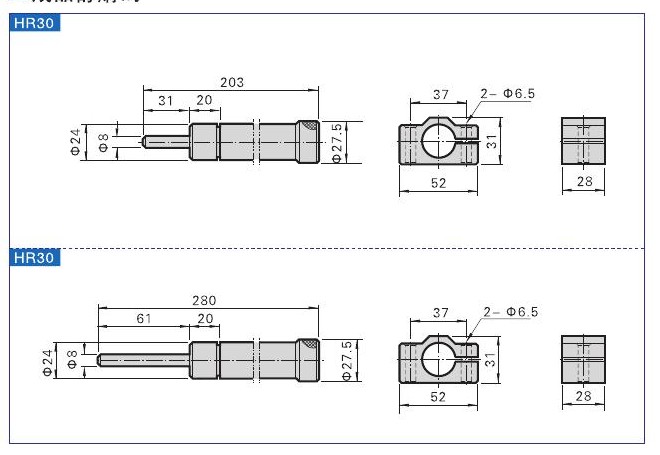

| Dimension-source ambiguity | Both drawings are labelled HR30 in the official page. Upper drawing shows overall 203 mm, lower 280 mm. The longer drawing is not automatically relabelled HR60 here; confirm exact model-to-drawing assignment against the installed label and dimensioned drawing. |
| Mounting dimensions | Source drawings show a clamp mounting block with 2×Ø6.5 holes, 37 mm hole spacing, 52 mm width and 28 mm depth; body Ø27.5 mm and rod Ø8 mm. Verify complete travel envelope, contact alignment and model-specific length. Similar travel does not establish a drop-in fit. |
| Application confirmation | Send drive type, axial load/direction, required feed speed with unit, used travel, mounting photo, return arrangement and duty cycle. This one-page source does not establish arbitrary side-load tolerance, safety holding or replacement of an ordinary cylinder or shock absorber. |
Ordering code matching
Code format

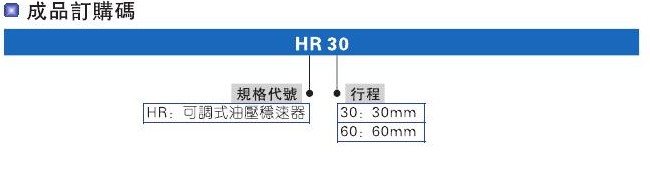

HR[30/60]30/60 is maximum travel in mm, not bore or impact energyHR30HR60| 1Series | 2Maximum travel |
|---|---|
