080 and 092 are solenoid-coil ranges for specified valve families. Confirm coil bore, DIN-plug or lead form, voltage, terminal arrangement and installed valve family before RFQ.
Ordering code matching

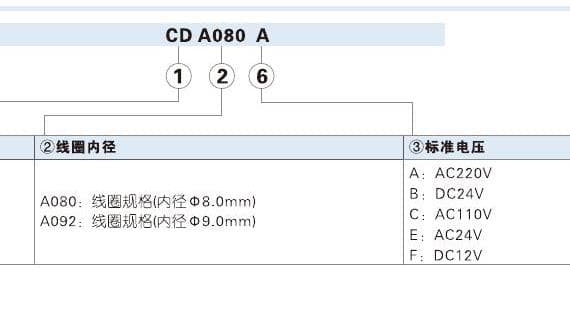

Code format
CD / CL [A080/A092] [A/B/C/E/F]Published coil code layoutCDA080ACLA080BCDA092ACLA092B| ①Connection form | ②Coil bore | ③Voltage |
|---|---|---|
| CD DIN plug; CL lead connection. | A080 8.0 mm; A092 9.0 mm internal diameter. | A AC220V; B DC24V; C AC110V; E AC24V; F DC12V. |
A similar body does not guarantee the same function. Confirm the function and interface first, then compare size and installed dimensions.
A080
8.0 mm coil bore; listed for 3V100, 4V100, 4M100
A092
9.0 mm coil bore; listed for published larger valve ranges
080 and 092 are coil interfaces, not standalone valves. A080 has an 8.0 mm internal diameter and is listed for 3V100, 4V100 and 4M100; A092 has a 9.0 mm internal diameter and is listed for the published 3V, 4V, 4M and ESV valve ranges. Match the coil and valve together.

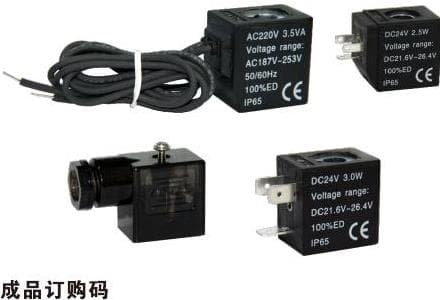

Product matching reference
No. Voltage is only one code field. Confirm the A080/A092 bore, CD/CL connection, installed valve family and terminal arrangement before RFQ.
