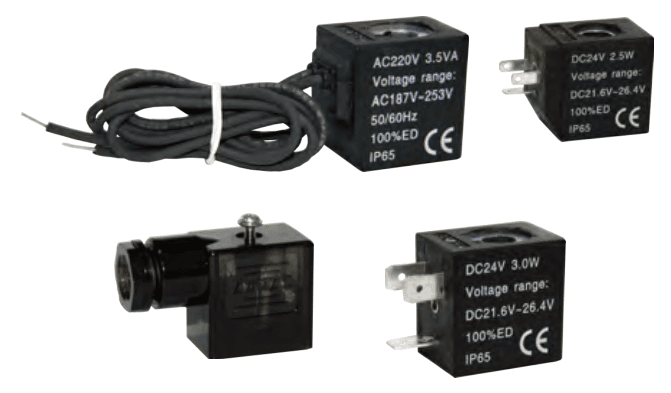

080 Ø8 mm and 092 Ø9 mm coils with terminal or grommet entry. Match the valve, voltage and connector; send the installed coil label or photo, quantity and destination for a quotation.
Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.
Choose a type; send a model or photo if unsure.
080
Ø8 mm · CD terminal / CL grommet
092
Ø9 mm · CD terminal / CL grommet
Send the model, quantity and destination. For multiple items, attach a parts list or BOM.
Match an 080/092 coil code

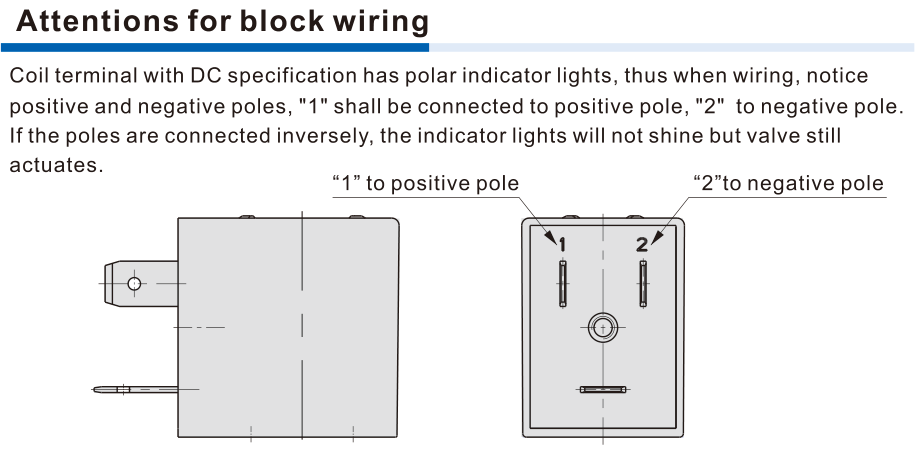

DC terminal indicator polarity: 1 positive and 2 negative
Helpful for Model Matching:
| Product identity | 080/092 solenoid coil and connector accessories; not a complete valve |
| Bore / entry | 080 Ø8 mm; 092 Ø9 mm; CD terminal; CL grommet |
| 080 published valve series | 3V100, 4V100, 4M100 |
| 092 published valve series | 3V1, 3V200, 3V300, 4V200, 4V300, 4V400, 4M200, 4M300, ESV200, ESV300, ESV400, ESV600 |
| 080 terminal connector codes | PL1515T-P1: AC/DC, no LED shown; PL1515T-P2: AC, red LED; PL1515T-P3: DC, green LED |
| 092 terminal connector codes | 4V210-005-P1: AC/DC, no LED shown; 4V210-005-P2: AC, red LED; 4V210-005-P3: DC, green LED |
| DC terminal indicator polarity | Terminal 1 positive (+); terminal 2 negative (−). Reversed polarity: indicator does not light, valve can still actuate. |
| Power / protection / fit | Confirm the individual coil label and valve interface; the page does not publish universal power, IP or envelope values. |
Ordering code matching
Code format
[CD/CL][A080/A092][A/B/C/E/F]Coil code; connector codes are separate accessoriesCDA080-ACLA080-BCDA092-CCLA092-ECDA092-F| 1Electrical entry | 2Coil bore | 3Voltage |
|---|---|---|
| CD terminal; CL grommet. The following A belongs to the A080/A092 size field. | A080 Ø8.0 mm; A092 Ø9.0 mm. | A AC220V; B DC24V; C AC110V; E AC24V; F DC12V. |
If the label is incomplete, send the readable parts together with a photo.
CDA092-B1Electrical entry
CD terminal; CL grommet. The following A belongs to the A080/A092 size field.
2Coil bore
A080 Ø8.0 mm; A092 Ø9.0 mm.
3Voltage
A AC220V; B DC24V; C AC110V; E AC24V; F DC12V.
080 and 092 are replacement solenoid-coil sizes with 8 and 9 mm bores, terminal or grommet entry and five published AC/DC voltages. The source also lists size-specific terminal connectors. Send the valve model and coil label or photo for a quotation.
Not necessarily. The source specifies terminal 1 positive and terminal 2 negative; reversed polarity can leave the indicator off while the valve still actuates. Send the coil and connector codes and wiring photo for identification.
Use the full coil code, voltage, installed valve model and interface. The published valve-series table is a starting point; individual power, protection rating and connector supply need the actual label or drawing.
080
080 Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
Build your pneumatic circuit with complementary components. Confirm dimensions and operating conditions before selecting a combination.
Product-group reference image
Switch the pneumatic circuit. Select the valve function, flow capacity, port size and control signal for the application.
Product-group reference image
Connect tubing to a valve or actuator. Match tube outside diameter, port thread and seal type.
Product-group reference image
Run air lines between fittings and components. Confirm outside diameter, bend radius, pressure and temperature.
Product-group reference image
Filter and regulate supply air. Confirm filtration, pressure range and flow requirements for the connected equipment.
Send your parts list, connection sizes and operating conditions for a matching check and combined quotation.
