110/160 coils: 10/16 mm bore, terminal or grommet, NC/NO and Class F/H selection. Send the...
Official reference
Based on manufacturer documentation
Model support
For model confirmation
Parts lists
Code, photo, or BOM
Availability / lead time
By model and quantity
110/160 coils: 10/16 mm bore, terminal or grommet, NC/NO and Class F/H selection. Send the coil and valve labels for model, fit and quotation confirmation.
Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.
Choose a type; send a model or photo if unsure.
110
10 mm bore · selected 030 and 150–250 valves
160
16 mm bore · selected 050 and 320–500 valves
Send the model, quantity and destination. For multiple items, attach a parts list or BOM.
Match a 110/160 coil code

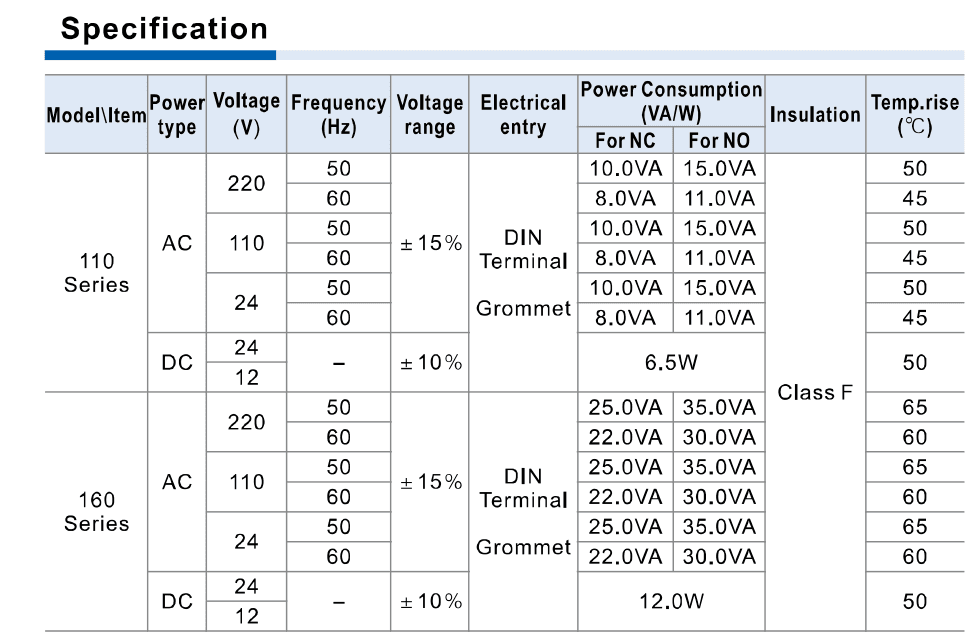

AirTAC110/160 specification reference
Helpful for Model Matching:
| Coil size / bore | A110: bore 10.0 mm; A160: bore 16.0 mm. These numbers do not establish complete installed geometry. |
| Entry / fail-state selection | CD terminal, CL grommet; blank valve-type field NC, K means NO. Match the host valve state; K is not an interchangeable power option. |
| Voltage / tolerance | A AC220V, B DC24V, C AC110V, E AC24V, F DC12V. AC50/60Hz ±15%; DC ±10%. |
| Insulation class | Blank final field Class F; H Class H. Class F is selected for 2SA/2KSA and 2WA/2KWA; Class H for 2LA/2KLA. Generic specification table states Class F. |
| Class F NC / NO power | 110 AC50/60Hz: NC10/8 VA, NO15/11 VA; DC6.5 W. 160 AC50/60Hz: NC25/22 VA, NO35/30 VA; DC12 W. Do not treat NC and NO AC powers as equal. |
| Class F temperature rise | 110 AC50Hz50°C, AC60Hz45°C, DC50°C; 160 AC50Hz65°C, AC60Hz60°C, DC50°C. Temperature rise is not an ambient-temperature limit. |

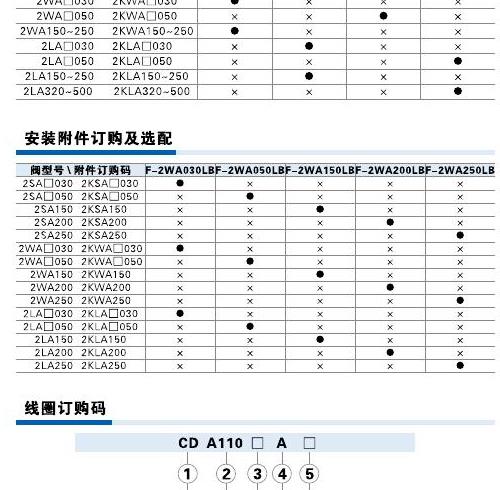

| 110 Class F valve scope | NC: 2SA030, 2SA150/200/250, 2WA030, 2WA150/200/250. NO: corresponding 2KSA and 2KWA sizes. |
| 160 Class F valve scope | NC: 2SA050, 2SA320/400/500, 2WA050. NO: corresponding 2KSA and 2KWA sizes. The matrix does not list 2WA/2KWA320–500. |
| Class H valve scope | 110 NC2LA030/150/200/250, NO2KLA030/150/200/250. 160 NC2LA050/320/400/500, NO2KLA050/320/400/500. These are published selection rows, not universal fit claims. |
| Class H power discrepancy | 2KLA valve pages give AC10/8 VA or25/22 VA; generic Class F NO table gives15/11 or35/30 VA. Direct DC7/10.5 W differs from pilot/generic6.5/12 W. Confirm the actual Class H coil label; generic power figures do not establish the rating of a Class H coil. |
| Connector assembly | Catalogue shows screw, terminal shell, terminal core and terminal washer. Confirm connector scope separately; no separate connector SKU is published here. |
Ordering code matching
Code format
[CD/CL]-[A110/A160]-[blank/K]-[A/B/C/E/F]-[blank/H]Published coil code: blank NC and Class F; K NO; final H Class HCDA110ACLA160KBCDA110KBH| 1Entry / size | 2State / voltage / class |
|---|---|
| CD terminal, CL grommet; A110 bore10mm, A160 bore16mm. | Blank NC or K NO; A/B/C/E/F voltage; final blank F class or H H class. |
110/160 is a fluid-valve coil family with terminal or grommet entry. Match the 10/16 mm bore, NC/NO coil selection, voltage, insulation class and the published host-valve matrix before requesting a quotation. A valid code identifies a coil configuration; fit still needs the original valve and coil labels.
No. Use the published bore and valve-selection rows, NC/NO version, voltage and F/H class. Send valve and coil labels plus installed geometry; the code alone does not prove interchangeability.
The generic power table is Class F. The 2KLA Class H valve pages give different AC and direct DC values. Confirm the actual coil label before quoting a replacement.
