4M is a NAMUR five-port, two-position solenoid-valve series for side-plate mounting with actuators. Match the full code, size, control method, port, voltage, thread and mounting interface...

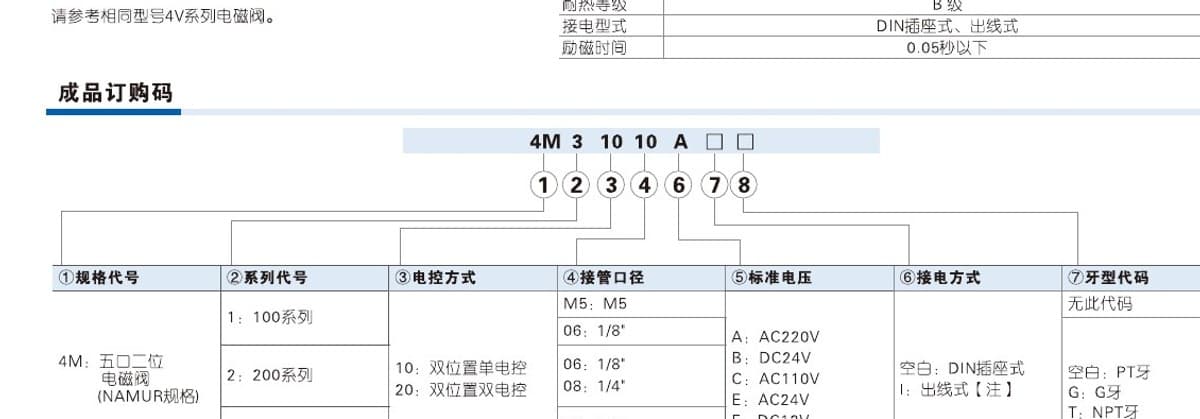

Ordering code matching
Code format
4M [1/2/3] [10/20] [M5/06/08/10] [A-F] [DIN/lead] [PT/G/NPT]Published 4M code layout4M110-M54M210-084M320-10| ①Series/control | ②Port | ③Voltage/thread |
|---|---|---|
| 110/210/310 single solenoid; 120/220/320 double solenoid. | M5, 1/8, 1/4, or 3/8 inch as published for the size. | A AC220V; B DC24V; C AC110V; D AC24V; E AC12V; F DC12V; blank PT, G or T thread. |
If the label is incomplete, send the readable parts together with a photo.
4M 2 10 08 A4MValve family
NAMUR five-port, two-position solenoid valve.
1 / 2 / 3Series size
Published 100, 200, or 300 series.
10 / 20Control
10 single solenoid; 20 double solenoid.
M5 / 06 / 08 / 10Port
Published port code for the selected size.
A–FVoltage
Published AC/DC voltage code.
I / G / TOutput/thread
Blank DIN plug; I lead; blank PT, G or T thread.

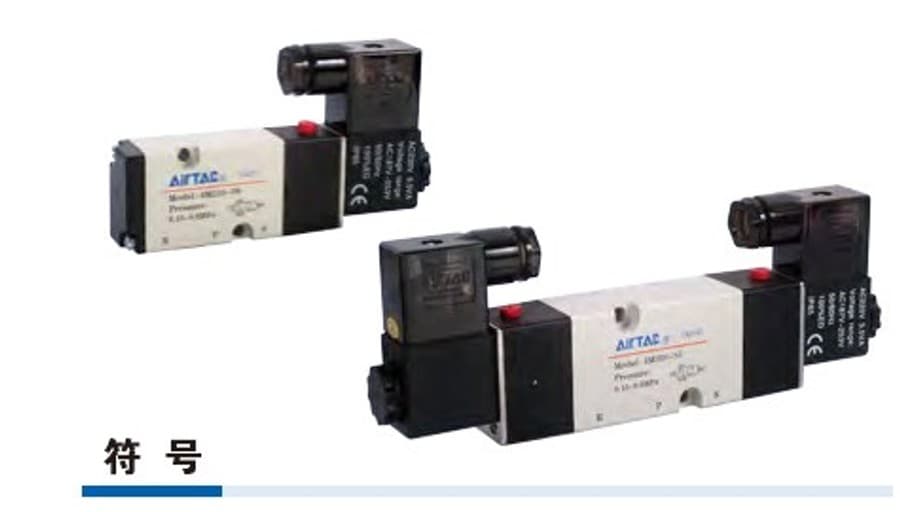

4M is a NAMUR-specification five-port, two-position valve family for direct side-plate connection with an actuator. The 110/210/310 and 120/220/320 forms represent published single- and double-solenoid choices; match the complete valve and actuator interface together.
Product matching reference

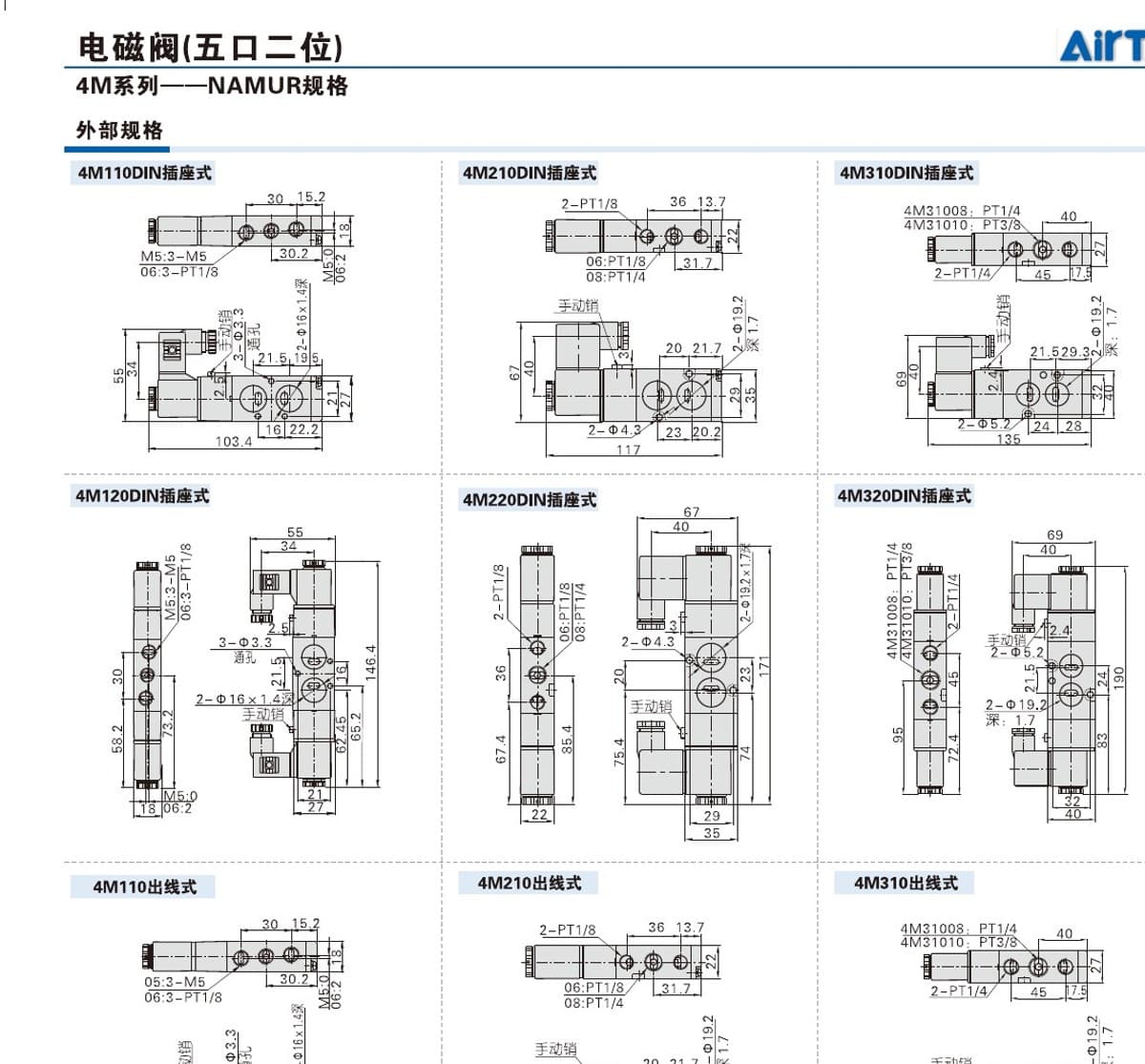

No. 4M is published with a NAMUR mounting specification and side-plate actuator connection. Confirm the mounting face, valve code and port...
