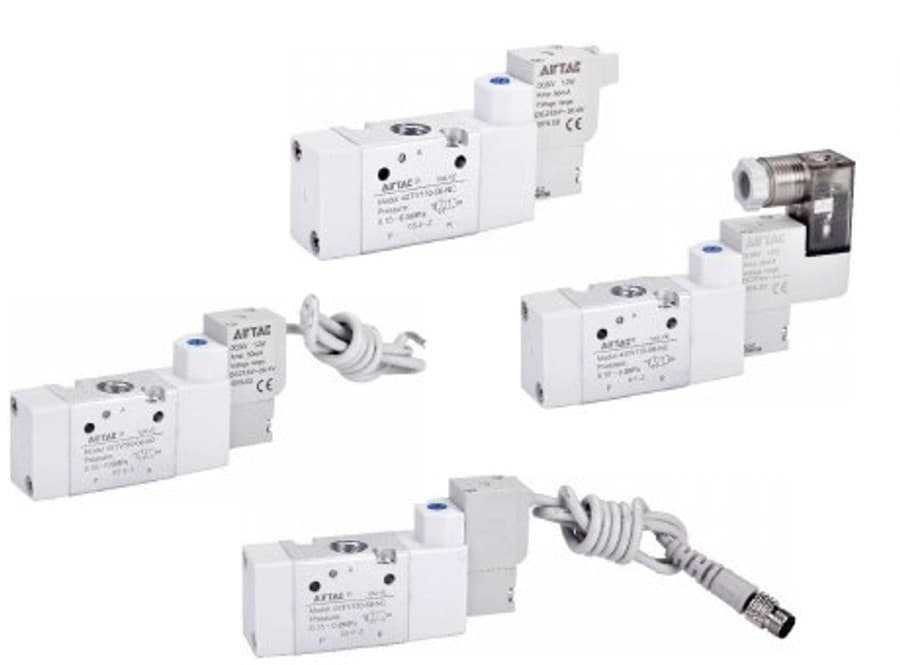

4STV is a three-port, two-position pilot-operated solenoid-valve series. Match the full code, size, control, normal state, port, voltage, connector and thread for RFQ.
Ordering code matching

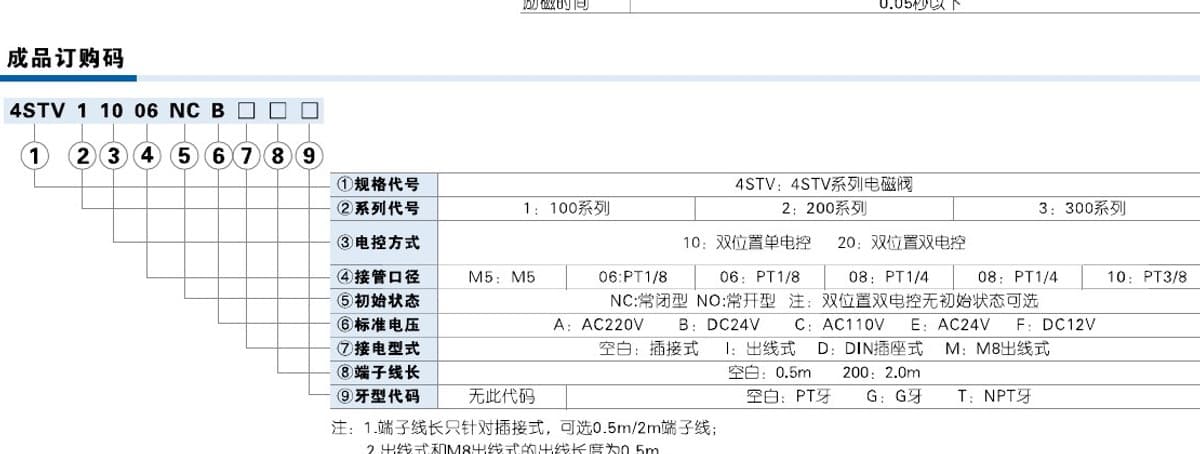

Code format
4STV [1/2/3] [10/20] [M5/06/08/10] [NC/NO] [A-F] [connector/lead] [PT/G/NPT]Published 4STV code layout4STV110-06-NC-B4STV210-08-NO-A4STV320-10| ①Series/control | ②Port/state | ③Voltage/output/thread |
|---|---|---|
| 110/210/310 single; 120/220/320 double solenoid. | M5, 1/8, 1/4, or 3/8 inch; NC or NO where applicable. | A AC220V; B DC24V; C AC110V; E AC24V; F DC12V; match connector/lead and PT/G/NPT. |
If the label is incomplete, send the readable parts together with a photo.
4STV 1 10 06 NC B4STVValve family
Three-port, two-position pilot-operated valve.
1 / 2 / 3Series size
Published 100, 200, or 300 series.

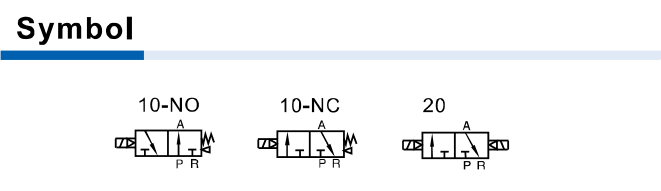

10 / 20Control
10 single solenoid; 20 double solenoid.
M5 / 06 / 08 / 10Port
Published port code for selected size.
NC / NONormal state
Match the circuit state where applicable.
A–FVoltage
Published AC/DC voltage code.
4STV is a three-port, two-position pilot-operated valve family. 110/210/310 are the published single-solenoid forms and 120/220/320 are double-solenoid forms; normal state, port, voltage and connection arrangement remain family-level selection fields.
Product matching reference
4STV is the published three-port, two-position valve family with its own port, connector and manifold options. 4M is a NAMUR five-port valve for...
