4SV covers five-port two-position and three-position solenoid valves in 100–400 series. Match the full code, control and center condition, port, voltage, connector, thread and manifold...
Ordering code matching

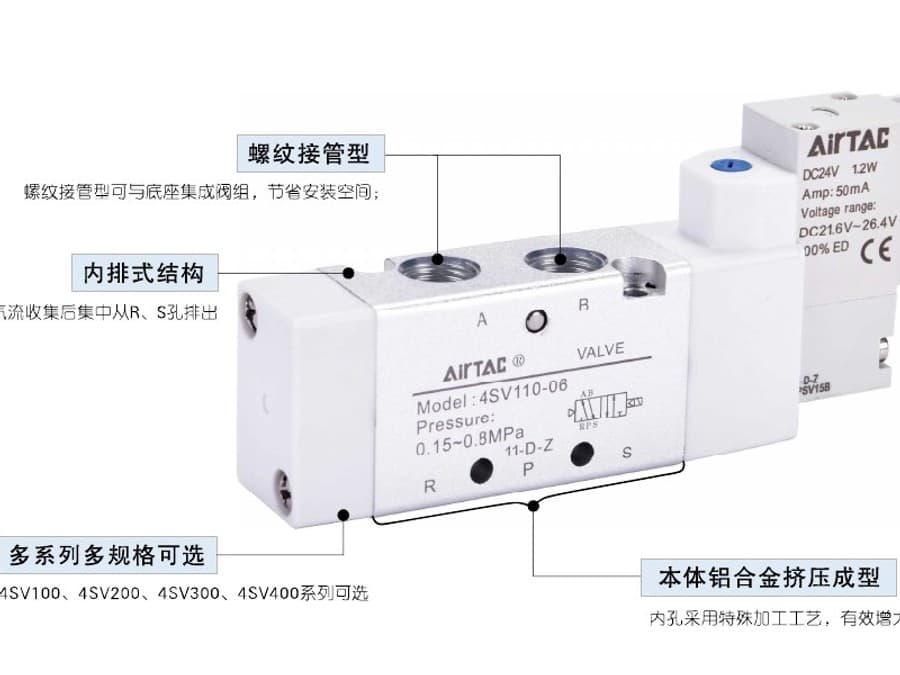

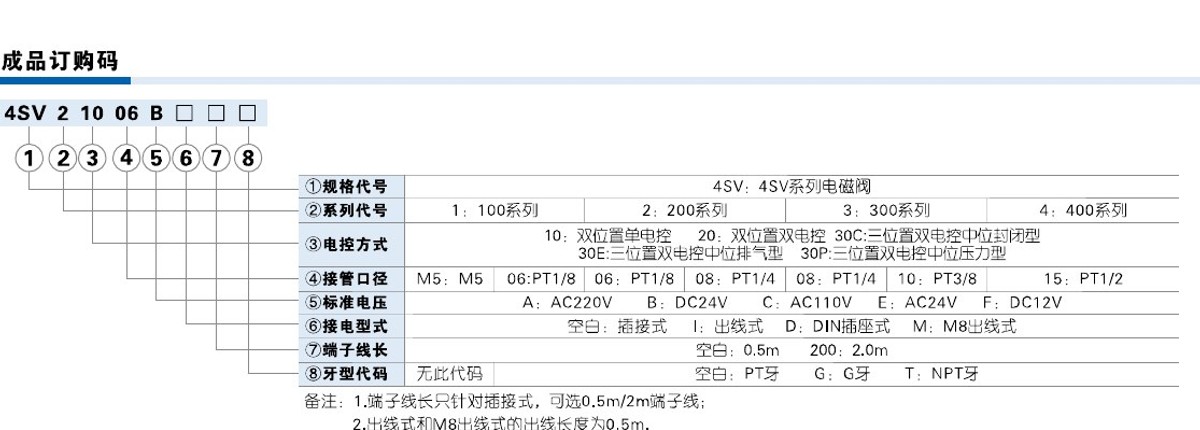

Code format
4SV [1/2/3/4] [10/20/30C/30E/30P] [M5/06/08/10/15] [A-F] [connector/lead] [PT/G/NPT]Published 4SV code layout4SV110-064SV230-084SV330E-104SV420-15| ①Series/function | ②Port | ③Voltage/output/thread |
|---|---|---|
| 100–400 series; 10/20 two-position; 30C/30E/30P three-position center condition. | M5, 1/8, 1/4, 3/8, or 1/2 inch as published for the size. | A AC220V; B DC24V; C AC110V; E AC24V; F DC12V; match connector/lead and PT/G/NPT. |
If the label is incomplete, send the readable parts together with a photo.
4SV 2 30E 08 B4SVValve family
Five-port two-position or three-position solenoid valve.
1 / 2 / 3 / 4Series size
Published 100, 200, 300, or 400 series.
10 / 20 / 30C / 30E / 30PControl / center
Match the two-position control or the three-position center condition.
M5 / 06 / 08 / 10 / 15Port
Published port code for selected size.
A–FVoltage
Published AC/DC voltage code.

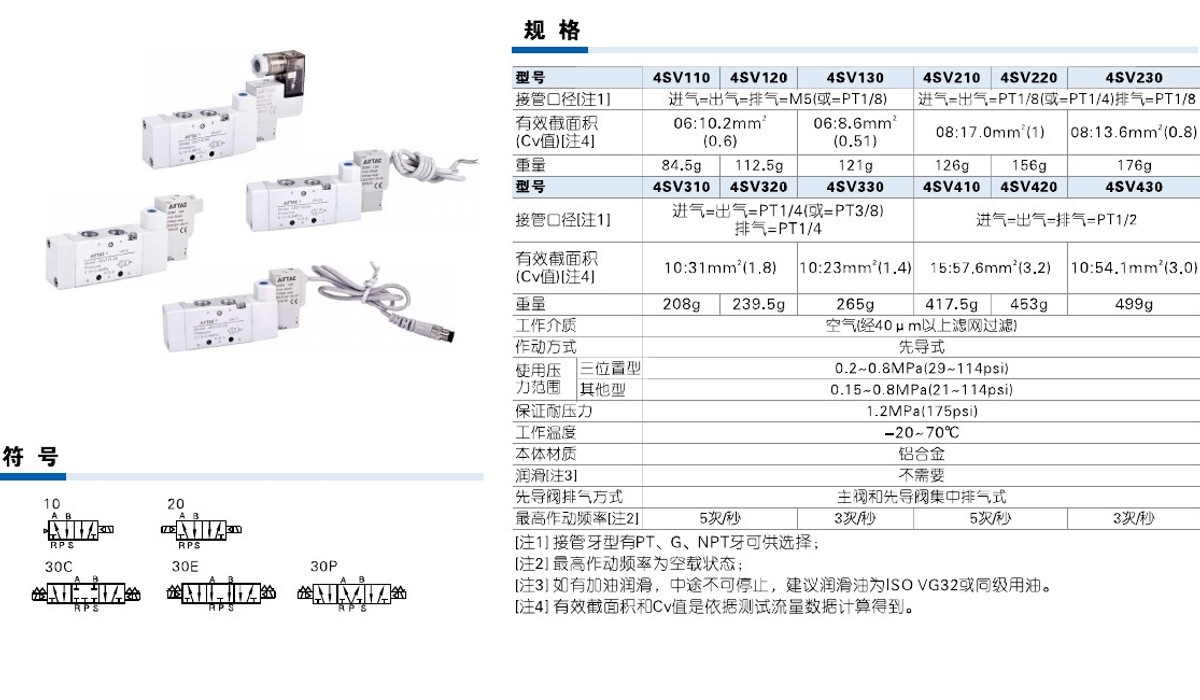

4SV is a five-port valve family with two-position and three-position forms. 10/20 identify the published two-position single/double-solenoid choices; 30C, 30E and 30P are three-position center-condition choices. These control fields change circuit behavior and must be matched with the installed valve.
