AirTAC 4V100 Solenoid Valve Sourcing

Public AirTAC material identifies 4V100 as a solenoid valve series with 5/2-way and 5/3-way functions. Confirm the full model, circuit function, pilot mode, voltage, port specification and...

Request type

AirTAC originalModel matchingChina-source alternative

Start RFQ Send photo / label

4V-100Solenoid Valves

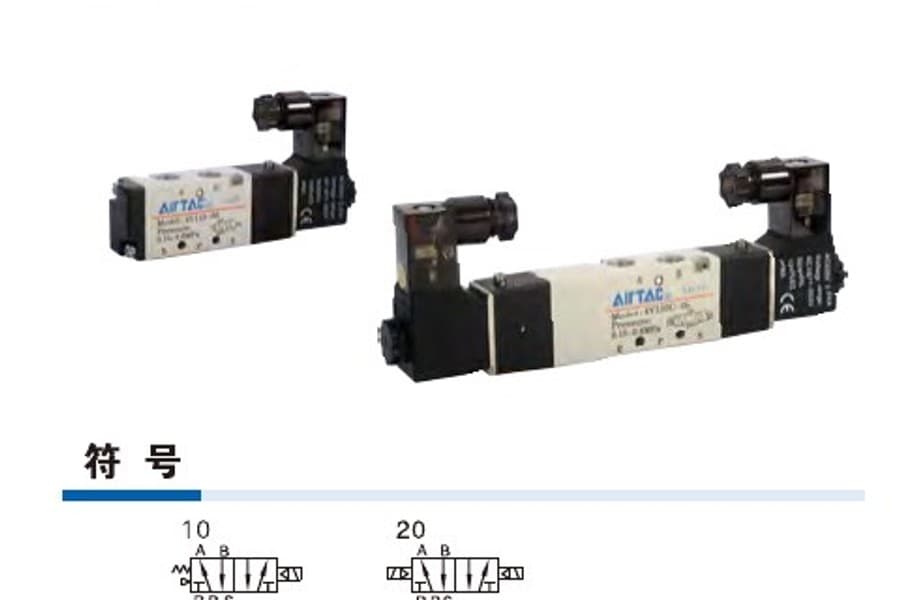

4V100 solenoid valve product reference — Verified product-family reference image.

Ordering code matching

Match each code segment

Send a photo if the code is incomplete

Code format

4V1 [10/20/30C/30E/30P] [M5/06] [A-F] [connector/lead] [PT/G/NPT] [pilot]Published 4V100 code layout

4V110-M54V120-064V130C-064V130E-M54V130P-06

①Function	②Port	③Voltage and interface
10/20 5/2; 30C/30E/30P 5/3 centre condition.	M5 or 1/8 inch.	Match the AC/DC voltage, connector/lead, thread, pilot and base/manifold interface.

Read the model code

If the label is incomplete, send the readable parts together with a photo.

4V 1 30E 06 B

4VValve family

Five-port directional solenoid valve.

1Series

100 series.

10 / 20 / 30C / 30E / 30PControl / center

Match the 5/2 control or 5/3 centre condition.

M5 / 06Port

M5 or 1/8 inch port.

A–FVoltage

Published AC/DC voltage code.

About 4V-100

An electrically actuated directional-valve reference. The official series page lists internal or external pilot mode, 5/2-way and 5/3-way functions, manual devices, voltage options and base integration; the complete model code is required for a final match.

Product matching reference

Compare the photo, drawing, and measurable details first

Identify from the photo

Complete 4V100 model code or coil/valve label
5/2-way or 5/3-way circuit function and required centre condition
Single- or double-solenoid arrangement and required coil voltage
Pilot mode, port specification and whether a base or manifold is used

Drawing reference

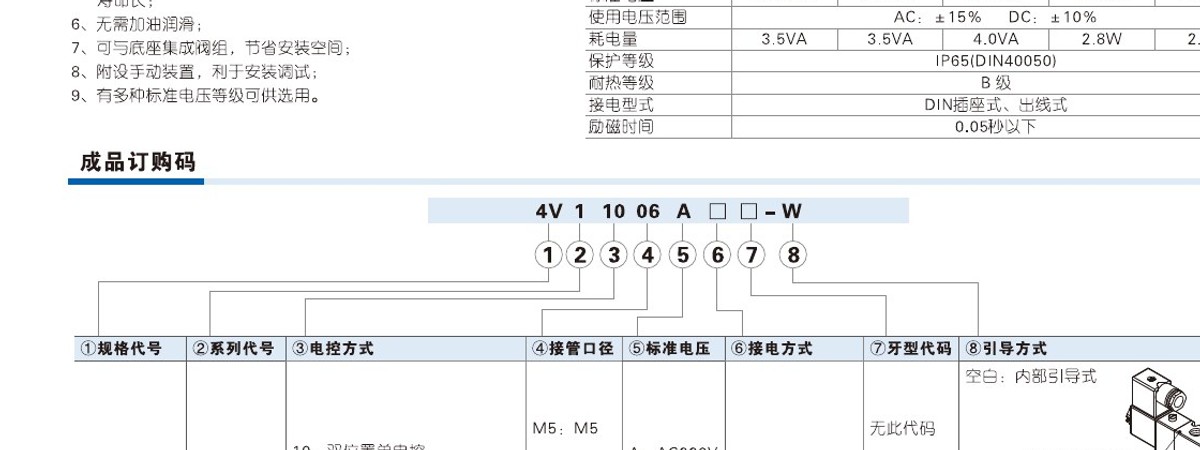

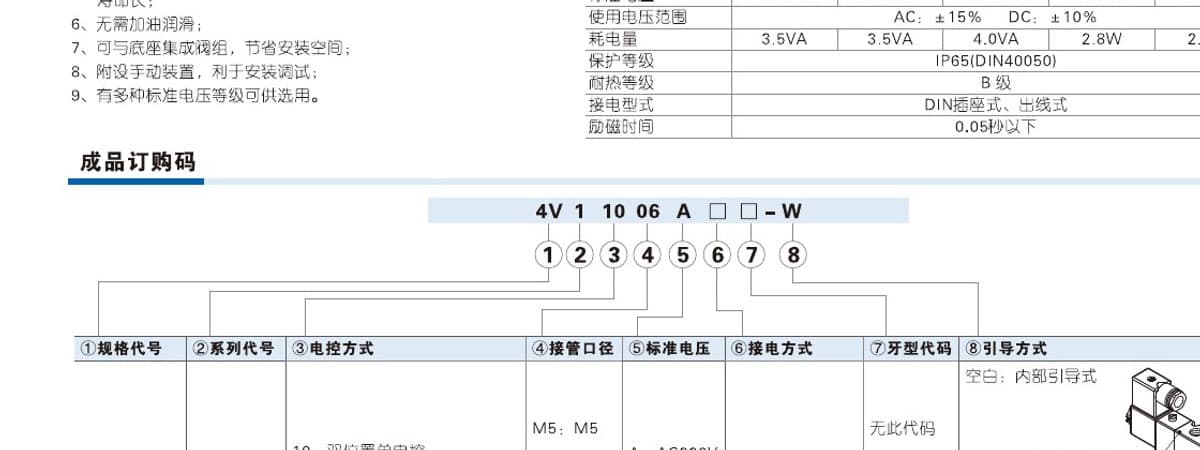

4V100 solenoid valve ordering code reference

Open drawing

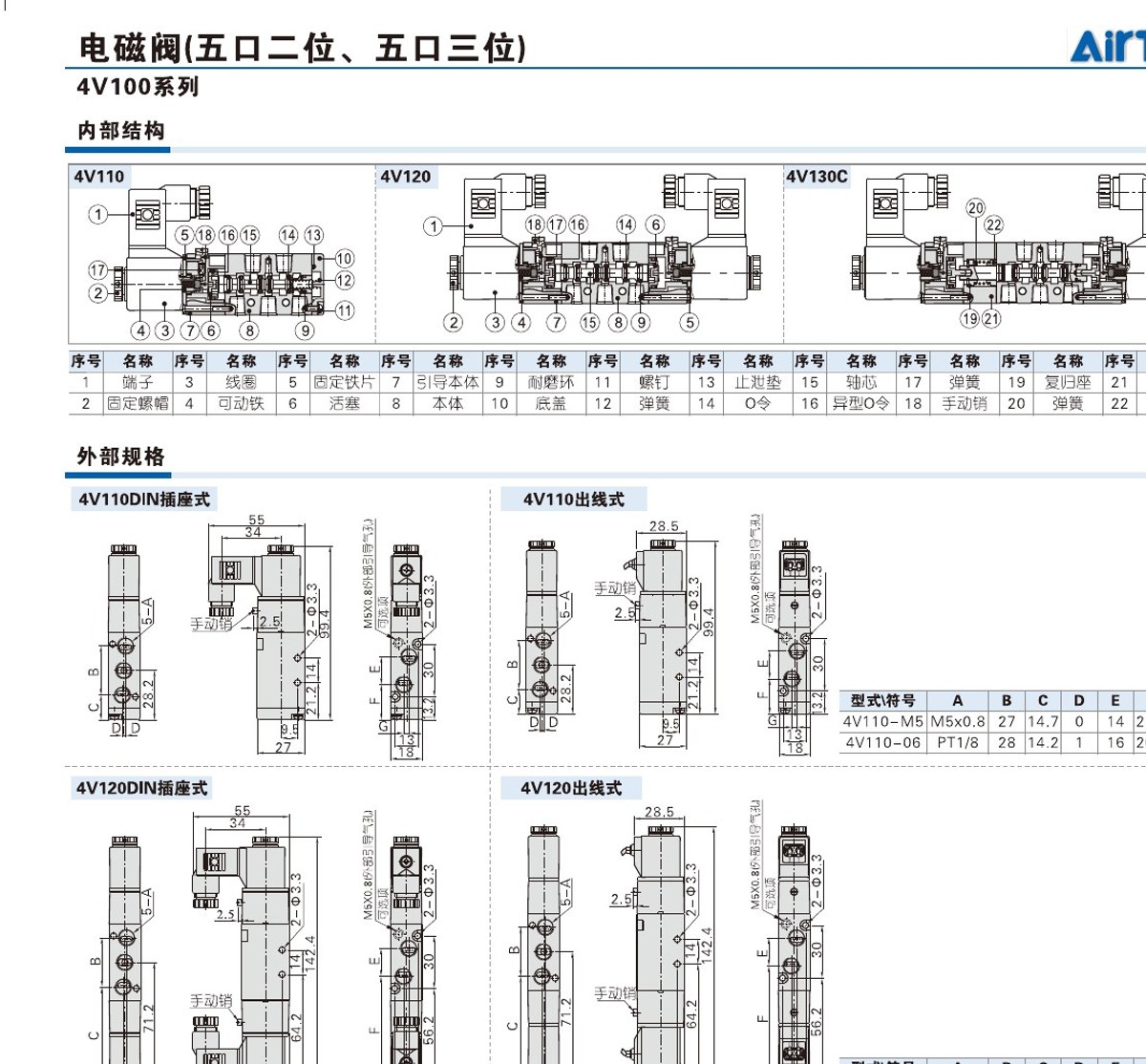

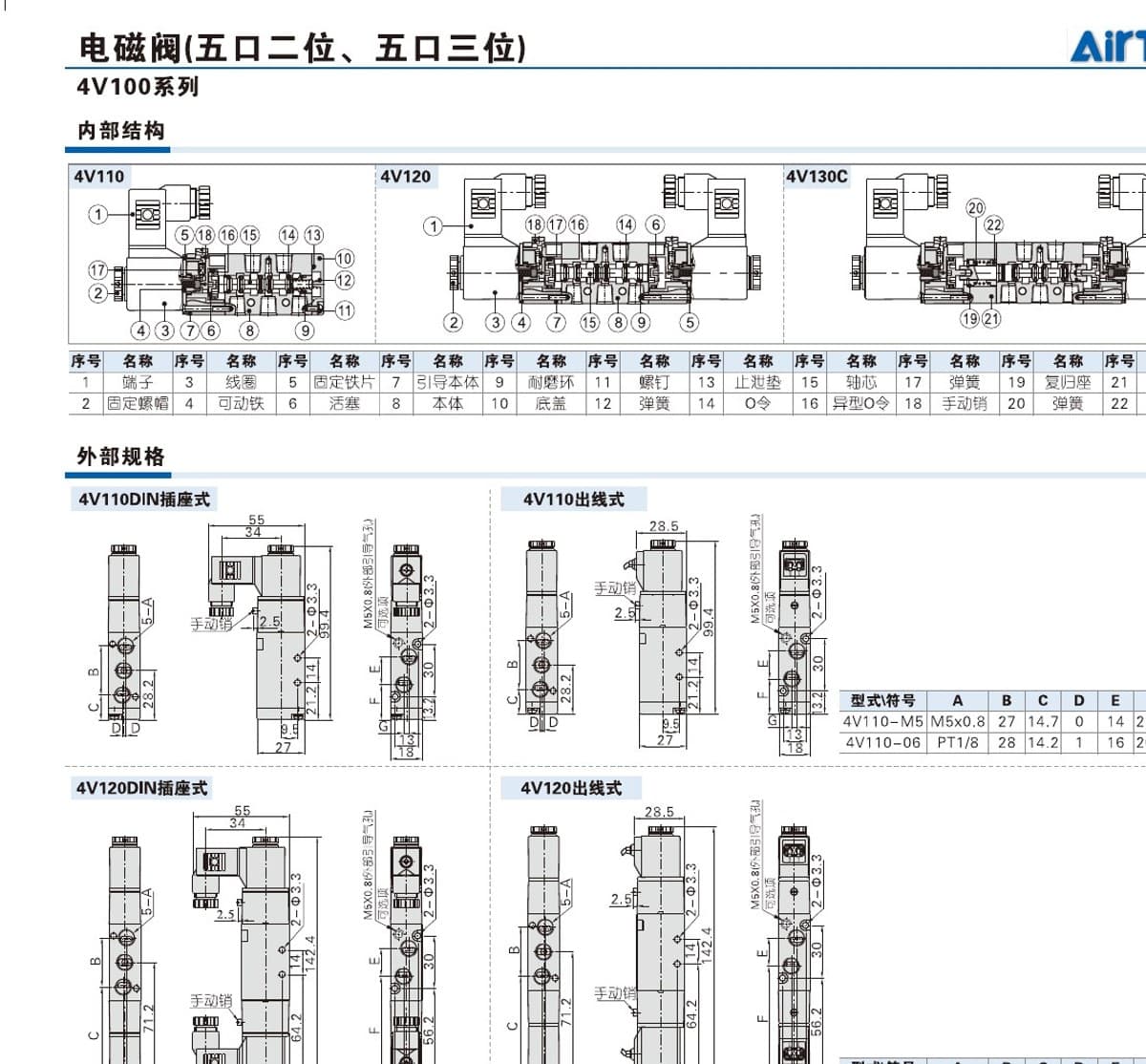

4V100 valve installation drawing reference

Open drawing

Confirm 4V100 five-port two- or three-position function, pilot mode, control/center condition, port, voltage and thread
Compare the installed valve body, base/manifold interface and correct 4V100 mounting face

Key details for matching

Model patterns

4V110-M5
4V110-06
4V120-06
4V130C-M5

Reference details

Series type: Solenoid valve
Published functions: 5/2-way and 5/3-way
Published pilot modes: Internal pilot or external pilot
Published installation option: Base integration for an integrated valve group
Published pressure range: 0.15–0.8 MPa (21–114 psi)
Reference pages: PDF pages 1–2

Matching Questions

What should I include in a 4V100 RFQ?

Send the full model code where available, plus the circuit function, coil voltage, pilot mode, port specification and any base or manifold details....

Why does the centre condition matter for a 5/3-way valve?

The centre condition affects circuit behaviour when the valve is not actuated. Confirm the circuit symbol before selecting a sourcing or replacement...

4V-100

Include this series in a project RFQ

4V-100 Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.

Request a project quote Send a parts list or BOM
