AirTAC 7V Five-Port Two-Position and Three-Position Solenoid Valves

7V is a five-port directional solenoid-valve family in 0500 to 300 size, with threaded and published push-in port forms. Confirm the full code, circuit function, centre condition, port...

Request type

AirTAC originalModel matchingChina-source alternative

Start RFQ Send photo / label

7VSolenoid Valves

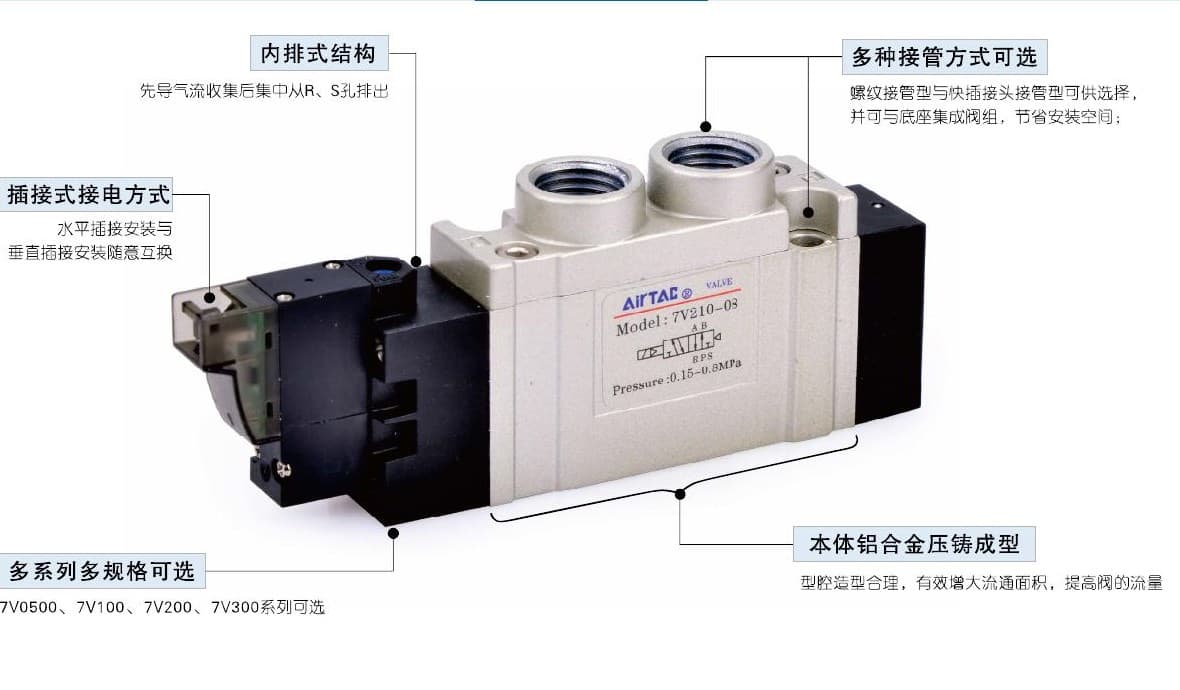

7V five-port solenoid valve product reference — Verified product-family reference image.

Ordering code matching

Match each code segment

Send a photo if the code is incomplete

Code format

7V [05/1/2/3] [10/20/30C/30E/30P] [blank/J] [M5/04/06/08/10] [voltage] [lead] [PT/G/NPT]Published 7V code layout

7V0510-M57V0510-J047V110-067V210-087V320-10

①Port form	②Circuit function	③Size / electrical
Blank threaded form or J push-in form; confirm the matching base/interface.	10/20 two-position; 30C closed centre, 30E exhaust centre, 30P pressure centre.	0500 to 300 series; match port, voltage, lead length and PT/G/NPT thread from the full code.

Read the model code

If the label is incomplete, send the readable parts together with a photo.

7V 2 10 J 08 B 050

7VValve family

Published five-port directional solenoid valve.

05 / 1 / 2 / 3Series size

Published 0500, 100, 200 or 300 series.

10 / 20 / 30C / 30E / 30PFunction / centre

10/20 two-position; 30C closed centre, 30E exhaust centre, 30P pressure centre.

blank / JPort form

Blank threaded port; J published push-in port form.

M5 / 04 / 06 / 08 / 10Port

Published port code for the selected form and size.

A–F / 050 / 200 / G / TVoltage, lead and thread

Match published voltage, lead length and PT/G/NPT thread fields.

About 7V

7V is a five-port directional-valve family with published threaded and push-in connection forms. Its 10/20 two-position and 30C/30E/30P three-position circuit choices must be matched, and the push-in version has a different base/interface context from the threaded form. These remain one family page with code-level selection data.

Product matching reference

Compare the photo, drawing, and measurable details first

Identify from the photo

Full 7V code or readable valve label
Threaded port or J push-in port form
Two-position 10/20 or three-position 30C/30E/30P circuit
0500, 100, 200 or 300 size and installed port
Required voltage, lead length, PT/G/NPT thread and mounting/base interface

Drawing reference

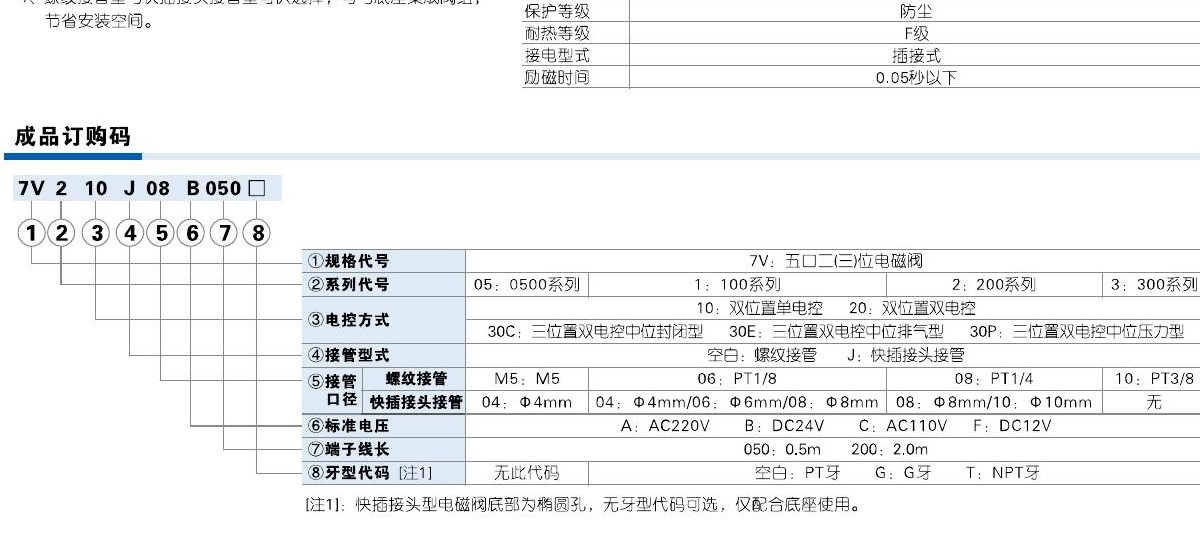

7V solenoid valve ordering code reference

Open drawing

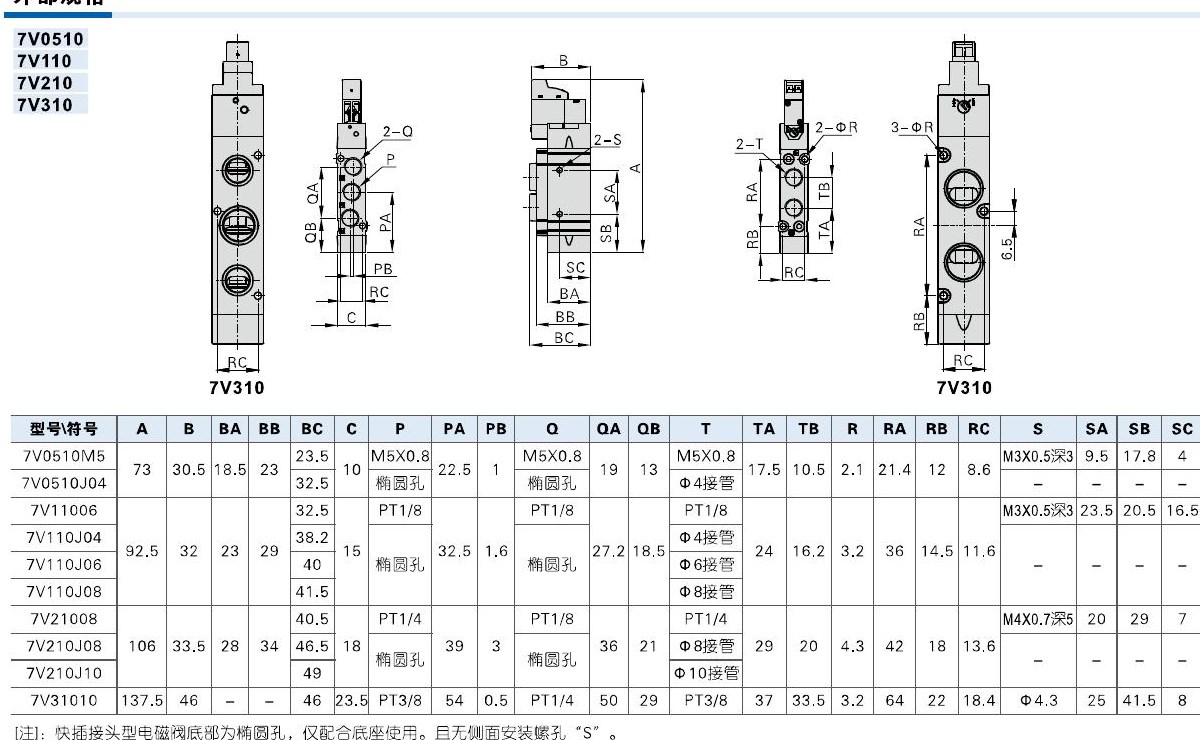

7V solenoid valve installation drawing reference

Open drawing

Confirm 7V five-port function and distinguish 10/20 two-position from 30C/30E/30P three-position control
Confirm threaded or push-in port form, then match 0500/100/200/300 size, port, voltage, lead length, thread and manifold/base interface

Key details for matching

Model patterns

7V0510-M5
7V0510-J04
7V110-06
7V110-J06

Reference details

Product type: Five-port two-position and three-position solenoid valve
Published sizes: 0500, 100, 200, 300 series
Published port forms: Threaded and push-in forms by model
Published operating pressure: Two-position: 0.2–0.8 MPa; other published valve forms: 0.15–0.8 MPa
Published proof pressure / temperature: 1.2 MPa; -10 to 50 °C
Reference pages: PDF pages 1–4

Matching Questions

How does a 7V push-in port form differ from a threaded form?

The source publishes the J push-in form as a separate connection form with its own base/interface context. Match the installed port form and...

Why must a 30C, 30E or 30P code be retained?

The code specifies the three-position centre condition, which changes the pneumatic circuit state when neither solenoid is energized. It must be...

Include this series in a project RFQ

7V Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.

Request a project quote Send a parts list or BOM
