AirTAC CPSV15 direct-acting miniature 3/2 solenoid pilot valves with plug-in, lead-out, M8 or DIN connection forms. Match voltage, wiring and the parent-valve interface; send pilot and parent labels with quantity and destination for quotation.
Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.

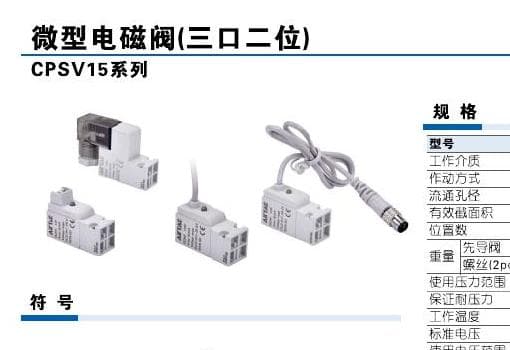

Match a CPSV15 miniature pilot valve
AirTAC CPSV15 official Chinese circuit symbol
Helpful for Model Matching:
| Product identity | Complete direct-acting miniature three-port/two-position solenoid valve (pilot-valve assembly), not a bare replacement coil. Only CPSV15 is covered by this source; CPSV10 is a separate product and requires its own specification confirmation. |
| Working conditions | Operating pressure 0–0.8MPa; proof pressure 1.2MPa is not service pressure. Filtered air 40 μm or finer; −20 to 70°C. The parent-valve minimum pressure 0.15MPa does not apply to this direct-acting pilot. |
| Flow direction | Orifice diameter 0.65 mm. P→A effective area 0.32 mm²/Cv 0.019; A→R area 0.43 mm²/Cv 0.025. The two directions differ; no single shared flow rating or unconditional L/min value is implied. Use the separate labelled pressure/flow curves. |
| Voltage and power | A AC220V; B DC24V; C AC110V; E AC24V; F DC12V. DC1.2W; AC2.0VA. AC+15%/−10%; DC±10%. IP65 and insulation F are published; confirm installed connector/seals, not an explosion-proof specification. |
| Response time | On<10 ms; off<10 ms are published CPSV15 response times, not the parent-valve complete cycle. No maximum cycle frequency is published in this sheet. |
| Connection code | CPSV[entry]15[voltage]-[wire]. Blank plug-in; I lead-out; D DIN connector; M M8 lead-out. Entry letter precedes 15. Plug-in wire 050=0.5 m or 200=2 m. I/M fixed 0.5 m. The source wire table does not clarify DIN cable-length applicability, so DIN codes and incomplete wire fields require confirmation rather than inheriting a parent-valve rule. |
| Interface and mounting | P inlet, A work and R exhaust are face/interface connections in the drawing; no PT/G/NPT or pipe-size ordering field is published. Match face ports, seals, mounting holes and installed clearance to the parent valve. No NC/NO selector is encoded; confirm the circuit and deenergized behavior from label/drawing. |

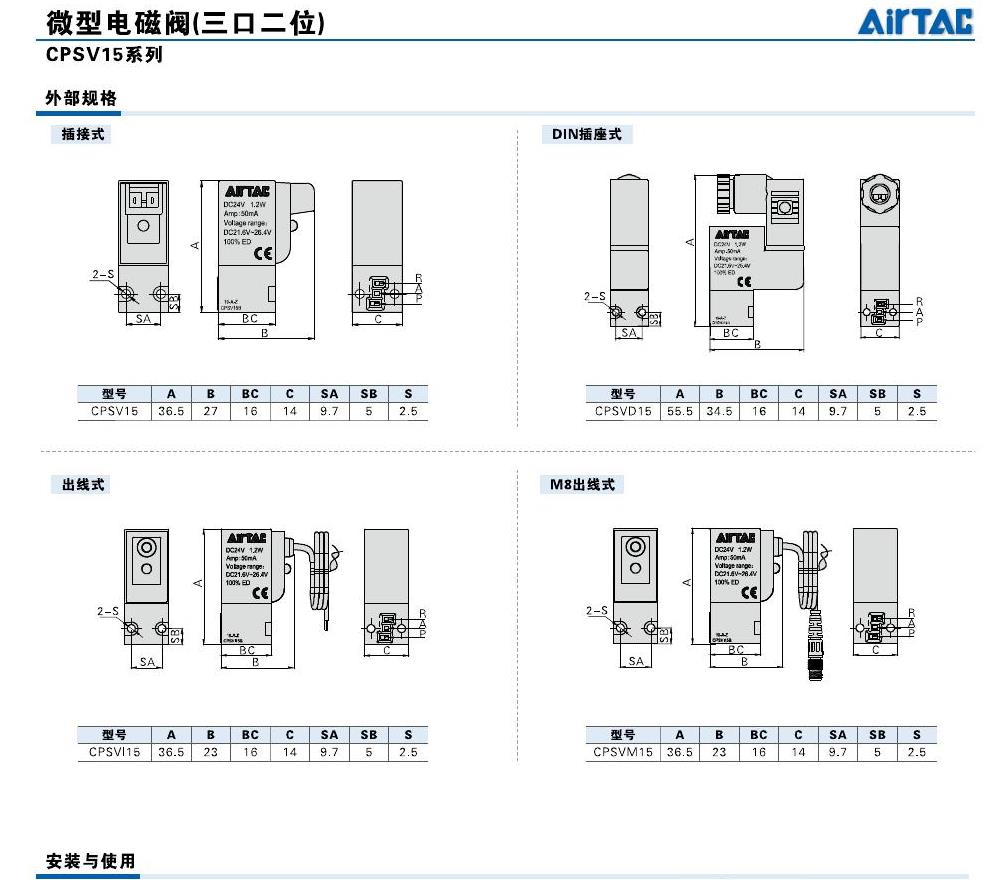

| Dimensions and weight | Plug-in A36.5/B27 mm, lead/M8 A36.5/B23 mm; DIN A55.5/B34.5 mm. All have BC16, C14, SA9.7, SB5, S2.5 mm in the drawing table. Pilot-valve weights plug 22 g, lead 27 g, M831 g, DIN36 g; two screws 1.45 g listed separately. |
| Installation details differ between references | Installation body text specifies two M2.5×19 bolts tightened 0.4–0.45N·m and ordering note supplies two M2.5 cross-head screws; the illustration caption instead says M1.6×14. Preserve this internal mismatch: confirm actual mounting screws/interface before installation, not one universal fastener instruction. |
| Plug orientation | Installation shows vertical and parallel plug arrangements sharing the terminal. The source states no positive/negative polarity distinction for the terminal wire; verify actual supplied connector/label and control wiring, especially any alternate customer electronics. |
| Parent-valve confirmation | Parent 6STV, 6SV or 7SV literature may reference CPSV pilot electrical rows. This miniature-valve source alone does not publish a complete compatibility list, interchangeability or spare-coil guarantee. Send both pilot and parent labels and face/connector photos for replacement confirmation. |
| RFQ inputs | Send full pilot-valve code or readable label, parent-valve model, voltage/ACDC, connection form and wire length, interface/seal/mounting drawing or photo, quantity and destination. Stock, lead time and installed replacement fit are confirmed through inquiry. |

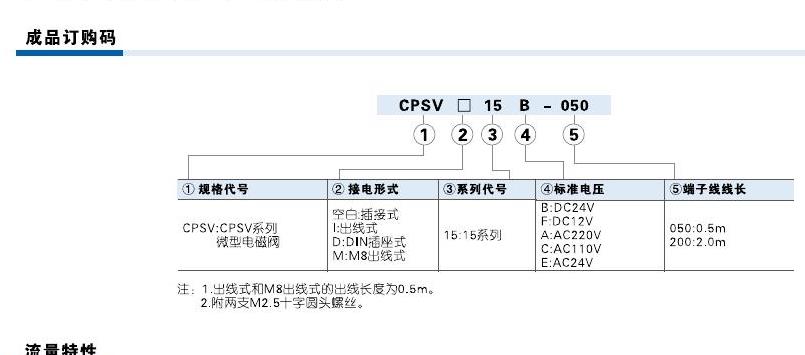

Ordering code matching
Code format
CPSV[blank/I/D/M]15[A/B/C/E/F]-[050/200]Connection letter precedes 15; I/M fixed 0.5 m; DIN cable requires confirmationCPSV15B-050CPSV15A-200CPSVI15C-050CPSVM15F-050| 1Product | 2Connection | 3Voltage | 4Wire | 5Interface |
|---|---|---|---|---|
| CPSV15 complete miniature 3/2 pilot valve, not bare coil. | Blank plug-in; I lead-out; D DIN; M M8. Letter before 15. | A AC220; B DC24; C AC110; E AC24; F DC12. | 050 = 0.5 m; 200 = 2 m plug-in. I/M only 0.5 m; DIN confirm. | P/A/R face, seal, mount and parent model separately checked; no thread code. |
If the label is incomplete, send the readable parts together with a photo.
CPSV15B-0501Product
CPSV15 complete miniature 3/2 pilot valve, not bare coil.
2Connection
Blank plug-in; I lead-out; D DIN; M M8. Letter before 15.
3Voltage
A AC220; B DC24; C AC110; E AC24; F DC12.
4Wire
050 = 0.5 m; 200 = 2 m plug-in. I/M only 0.5 m; DIN confirm.
5Interface
P/A/R face, seal, mount and parent model separately checked; no thread code.
AirTAC CPSV15 direct-acting miniature 3/2 solenoid pilot valves with plug-in, lead-out, M8 or DIN connection forms. Match voltage, wiring and the parent-valve interface; send pilot and parent labels with quantity and destination for quotation.
CPSV15 is a complete direct-acting 3/2 miniature pilot valve. Matching electrical ratings or a pilot name does not confirm every mounting, seal, connector or spare replacement. Send pilot and parent labels plus interface photos; confirm actual wiring and hardware before quotation.
CPSV15
CPSV15 Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
