Home/Product Series/AirTAC Sourcing/Solenoid Valves/CPV10

AirTAC CPV10 Mini 3/2 Solenoid Valves

CPV10 is a miniature three-port, two-position valve with an optional manual override and separate lead assembly. Confirm voltage, manual override, lead length, installed port face and any...

Request type
AirTAC originalModel matchingChina-source alternative
Start RFQSend photo / label
CPV10Solenoid Valves

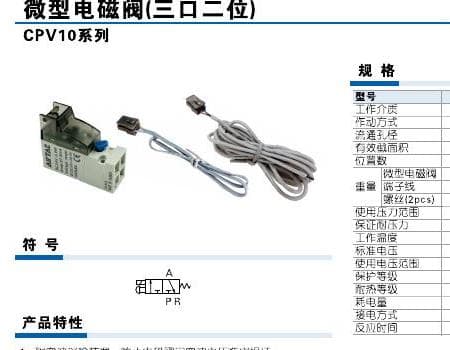

CPV10 miniature solenoid valve product reference
Verified product-family reference image.

Ordering code matching

Match each code segment

Send a photo if the code is incomplete

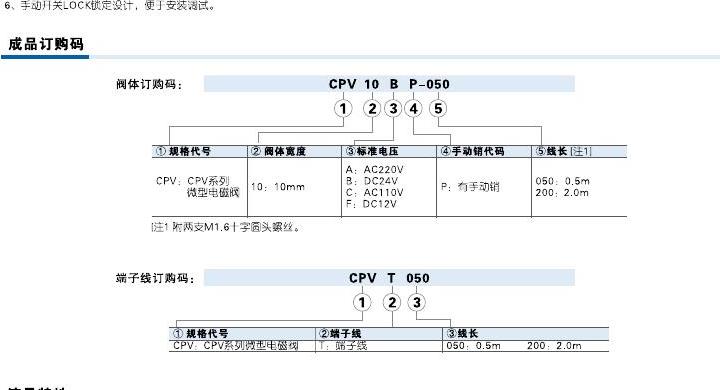

Code format

CPV10 [A/B/C/F] [P] - [050/200]Published CPV10 body code layout
CPV10M [J03/J04] - [2F–20F]Published CPV10M base code layout
CPV10 B P-050CPV10 A-200CPV10M J03-20F
①Valve/base②Voltage / bore③Option / stations④Lead length
CPV10 valve or CPV10M base.Valve: A/B/C/F voltage; base: J03 Ø3.2 or J04 Ø4.0 mm.P manual override; base 2F–20F station count.050 0.5 m; 200 2.0 m where published.

Read the model code

If the label is incomplete, send the readable parts together with a photo.

CPV10 B P-050

CPVSeries

CPV miniature valve series.

10Valve width

10 mm valve body.

A / B / C / FVoltage

A AC220V; B DC24V; C AC110V; F DC12V.

PManual override

P: manual override where required.

050 / 200Lead length

050: 0.5 m; 200: 2.0 m.

About CPV10

CPV10 is the single miniature valve in this document; CPV10S is the separate integrated-valve assembly. A CPV10M base is a supporting component for CPV10, not a second CPV10 product page. Match the valve body, cable/terminal arrangement and any base together when the installation is grouped.

Product matching reference

Compare the photo, drawing, and measurable details first

Identify from the photo
CPV10 miniature solenoid valve product reference
  • Full CPV10 body or lead code, or a clear label photo
  • AC220V, AC110V, DC24V or DC12V coil marking
  • Manual override requirement
  • 0.5 m or 2.0 m lead option where published
  • P/A/R port face, mounting and any CPV10M base/station count
Drawing reference

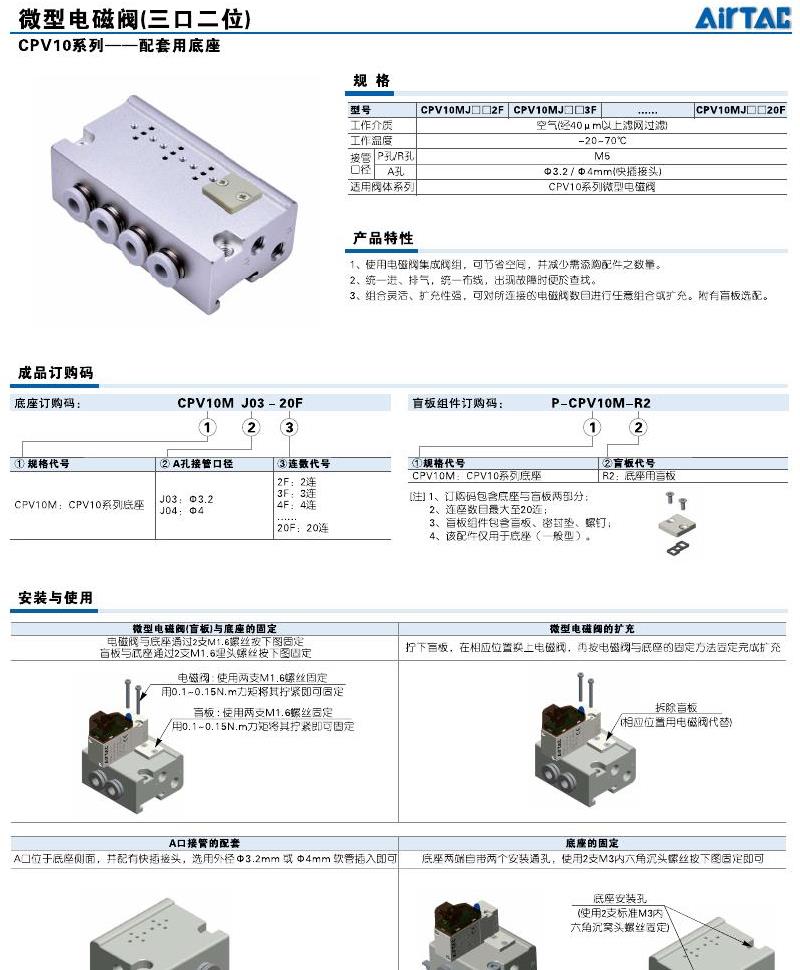

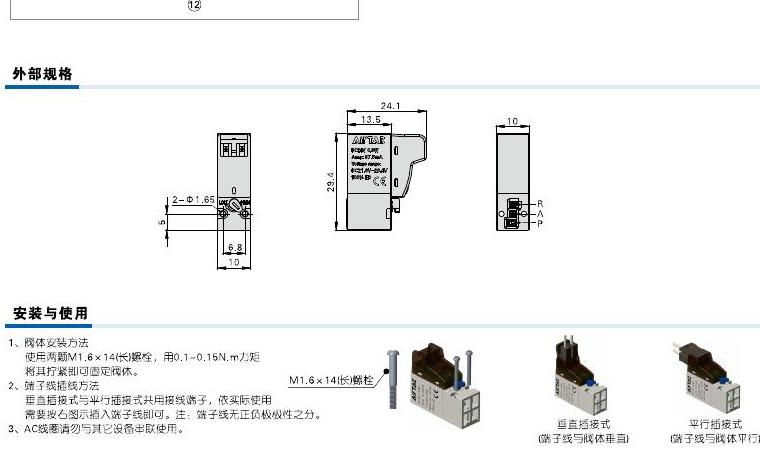

CPV10 solenoid valve ordering code referenceOpen drawingCPV10 solenoid valve installation drawingOpen drawingCPV10M valve base referenceOpen drawing
  • Confirm separate CPV10 valve rather than CPV10S integrated assembly
  • Match voltage, manual override, lead length, P/A/R port face and any CPV10M base/station count
Key details for matching

Model patterns

  • CPV10
  • CPV10B P-050
  • CPV10A-200
  • CPVT050

Reference details

  • Product type: Mini three-port, two-position solenoid valve
  • Published orifice: Ø0.55 mm
  • Published operating / proof pressure: 0–0.8 MPa / 1.2 MPa
  • Published temperature: −20 to +70 °C
  • Protection / insulation: IP65 / Class F
  • Response time: On <7 ms; off <7 ms
  • Reference pages: PDF pages 3–6

Matching Questions

What should I send for a CPV10 match?

Send the full label where available, then confirm the 3/2-way function, voltage, connector layout, port interface and a photo of the installed...
