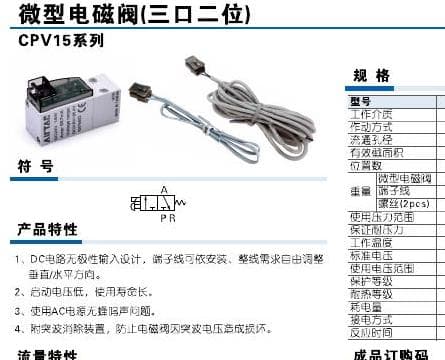

CPV15 is a 15 mm miniature three-port, two-position valve with an optional manual override and separate lead assembly. Confirm voltage, manual override, lead length, port face and any...

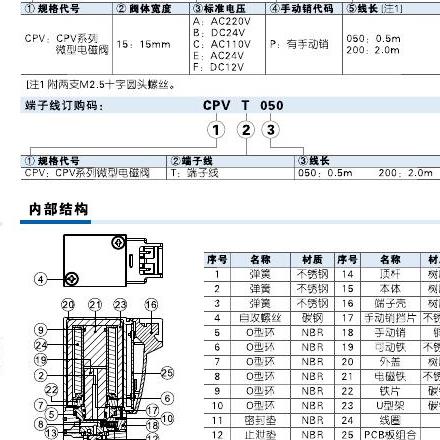

Ordering code matching
Code format
CPV15 [A/B/C/E/F] [P] - [050/200]Published CPV15 body code layoutCPV15M [2F–20F] [PT/G/NPT]Published CPV15M base code layoutCPV15 B P-050CPV15 A-200CPV15M 20F G| ①Valve/base | ②Voltage / stations | ③Option / thread | ④Lead length |
|---|---|---|---|
| CPV15 valve or CPV15M base. | Valve A/B/C/E/F voltage; base 2F–20F stations. | P manual override; base PT/G/NPT thread. | 050 0.5 m; 200 2.0 m where published. |
If the label is incomplete, send the readable parts together with a photo.
CPV15 B P-050CPVSeries
CPV miniature valve series.
15Valve width
15 mm valve body.
A/B/C/E/FVoltage
A AC220V; B DC24V; C AC110V; E AC24V; F DC12V.
PManual override
P: manual override where required.
050/200Lead length
050: 0.5 m; 200: 2.0 m.
CPV15 is the separate 15 mm valve in this combined document; CPV15S is the integrated valve assembly. CPV15M is a supporting base component for the CPV15 route, not a duplicate indexed product. Match the valve, cable/terminal arrangement and any base together when the installation is grouped.
Product matching reference

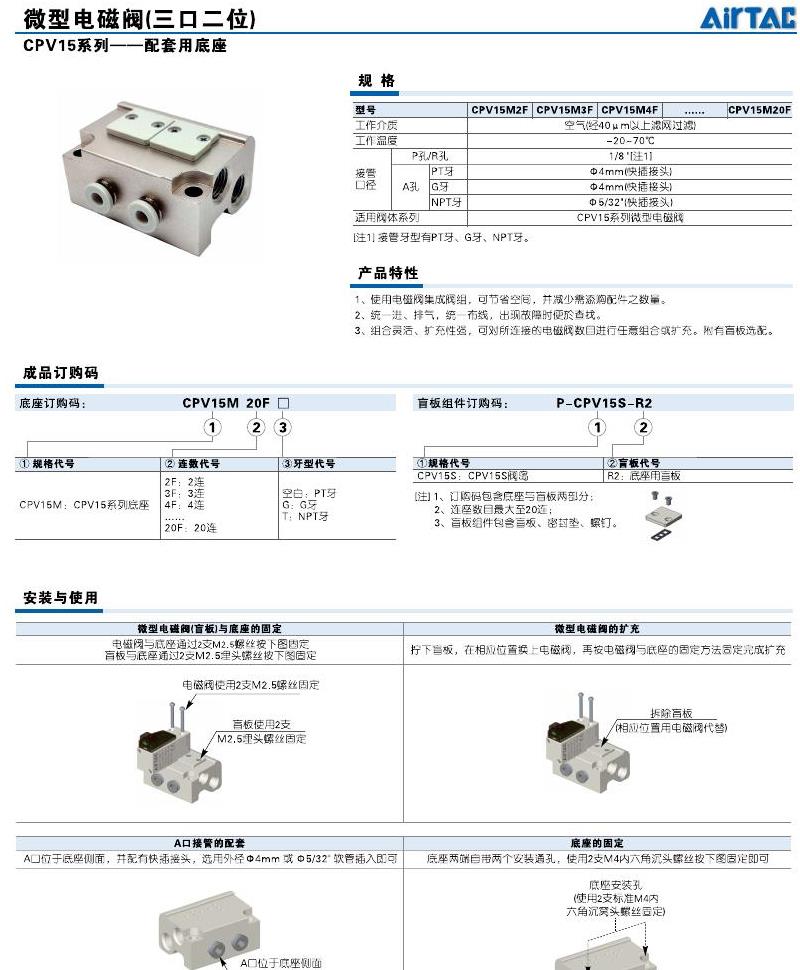

No. CPV15M is the published base for the CPV15 valve and stays as supporting reference material on the CPV15 page. Confirm the valve, base station...
