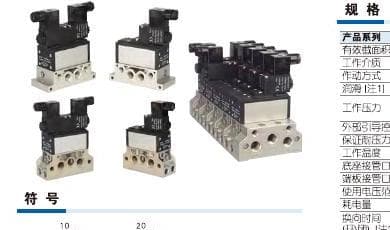

ESV is an ISO-standard five-port solenoid-valve family in 200, 300, 400 and 600 sizes. Confirm the circuit code, electrical connection, pilot arrangement, base and installed port layout...
Ordering code matching
Code format
ESV [2/3/4/6] [10/20/30C/30E/30P] [A/B/C/E/F] [blank/L] [blank/W]Published ESV valve code layoutESV [2/3/4/6] [1M/2M/3M/4M] [PT/G] [manifold port arrangement]Published ESV base and manifold code layoutESV210AESV220B LESV430C WESV610AESV202M G| ①Size | ②Circuit | ③Electrical / pilot | ④Base / manifold |
|---|---|---|---|
| 200, 300, 400 or 600; match the valve and base together. | 10/20 two-position; 30C closed centre, 30E exhaust centre, 30P pressure centre. | Match voltage, DIN or lead connection, and internal or external pilot from the full code. | Confirm single or manifold base, thread and the required working-port orientation. |
A similar body does not guarantee the same function. Confirm the function and interface first, then compare size and installed dimensions.

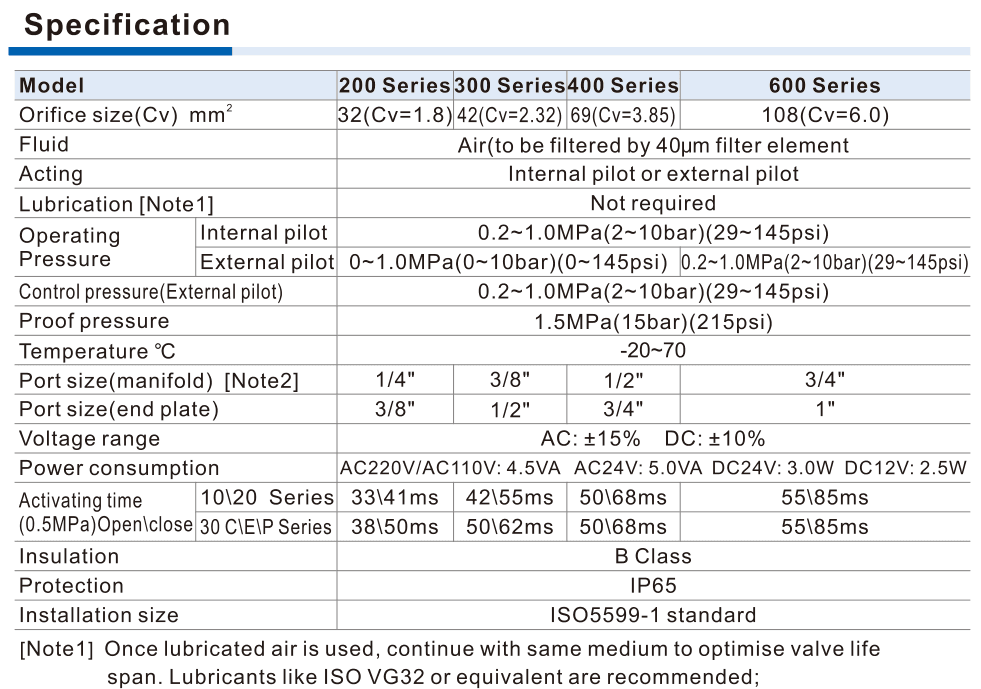

ESV200
200 size; published base port PT1/4
ESV300
300 size; published base port PT3/8
ESV400
400 size; published base port PT1/2
ESV600
600 size; published base port PT3/4
If the label is incomplete, send the readable parts together with a photo.

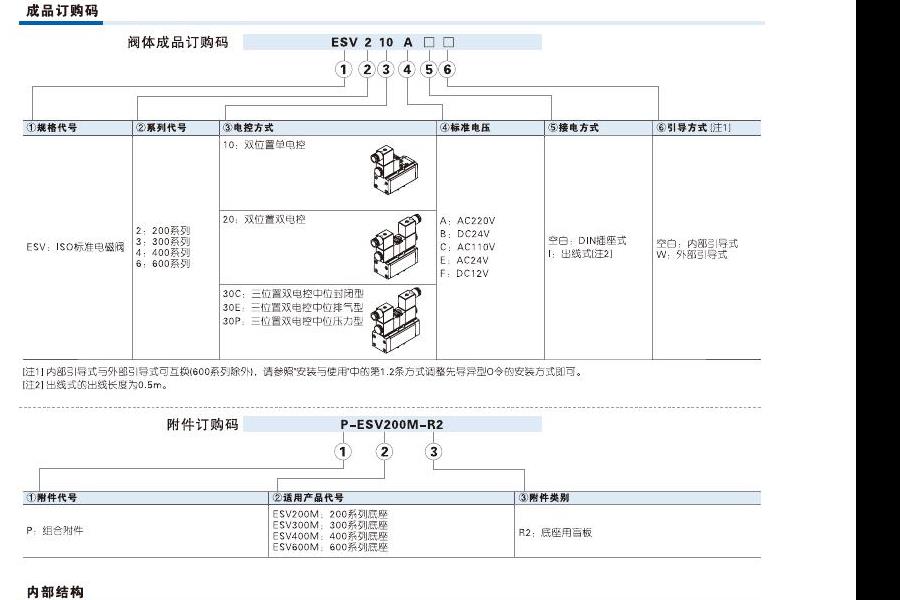

ESV 2 10 A LESVValve family
Published ISO-standard five-port solenoid valve family.
2 / 3 / 4 / 6Series size
200, 300, 400 or 600 published size.
10 / 20 / 30C / 30E / 30PFunction / centre
10 single-solenoid and 20 double-solenoid two-position forms; 30C closed-centre, 30E exhaust-centre and 30P pressure-centre three-position forms.
A / B / C / E / FStandard voltage
A AC220V; B DC24V; C AC110V; E AC24V; F DC12V.
blank / LElectrical connection
Blank DIN plug; L lead connection. Confirm the installed connection before matching.
blank / WPilot arrangement
Blank internal pilot; W external pilot. The published 600 arrangement needs confirmation from the installed model.
ESV is one ISO-standard five-port directional-valve family. The 200, 300, 400 and 600 numbers identify different published sizes; they are not interchangeable just because the circuit code is similar. The same page covers the matching single base, manifold base and end-plate context so an RFQ can describe the installed assembly rather than only the valve body.
Product matching reference
No. They share the ESV ISO family but have different published size, effective area, base-port and dimensional data. Match the complete valve and...

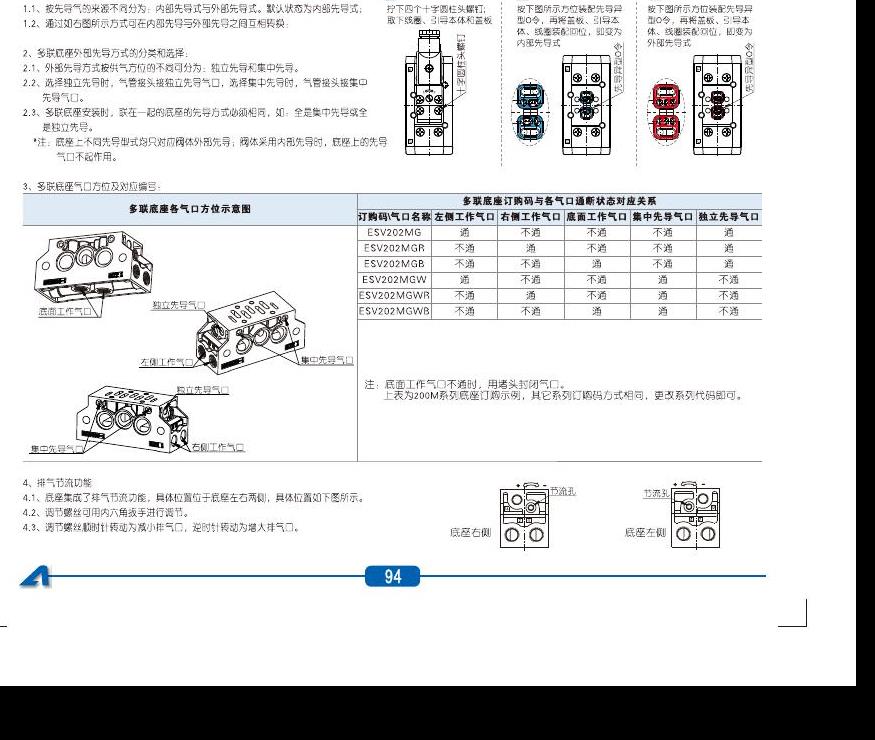

Yes. The source publishes single and multi-station bases with different air-routing and end-plate arrangements. Include the base code, station...
