F-DSUB15, F-DSUB25 and F-DSUB37 are D-sub cable accessories for specified AirTAC valve-manifold families. Confirm pin count, cable-end form, cable length and connected manifold before RFQ.

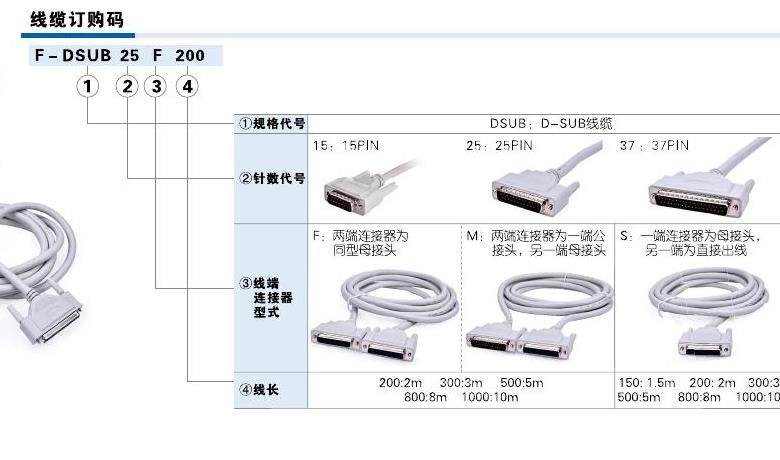

Ordering code matching
Code format
F-DSUB [15/25/37] [F/M/S] [length code]Published F-DSUB cable code layoutF-DSUB15F200F-DSUB25M500F-DSUB37S150| ①Pin count | ②Cable-end form | ③Length |
|---|---|---|
| 15 for 6DM; 25 for CPV10S, CPV15S or 6D; 37 for 6DW. | F female-to-female, M male-to-female, or S direct lead. | Match the published length code and the installed routing length. |
A similar body does not guarantee the same function. Confirm the function and interface first, then compare size and installed dimensions.
F-DSUB15
15-pin cable; published for 6DM
F-DSUB25
25-pin cable; published for CPV10S, CPV15S and 6D
F-DSUB37
37-pin cable; published for 6DW
If the label is incomplete, send the readable parts together with a photo.
F-DSUB25F200F-DSUBCable family
Published D-sub cable accessory family.
15 / 25 / 37Pin count
Match the installed D-sub pin count and manifold family.
F / M / SCable-end form
F female-to-female; M male-to-female; S one connector with direct lead.
150–1000Cable length
Published length code. Confirm the required installed length.
F-DSUB items are valve-manifold cables, not solenoid valves. The published 15-, 25- and 37-pin forms attach to different named manifold families; connector gender and the direct-lead form must also be retained when replacing a cable.

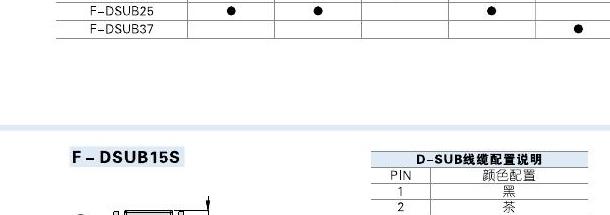

Product matching reference
No. The source lists the 25-pin form for CPV10S, CPV15S and 6D. Confirm the installed manifold and cable-end form in addition to the pin count.
