The 087-JT1 reference covers stainless steel tube fittings in straight, elbow, tee, cross and multi-port forms. Confirm the fitting form, tube diameter, thread and color before RFQ.
Ordering code matching
Code format
[PC / POC / PL / PLL / PEB / PED / PYB / PH / PHF / PHW / PZB / PKD] [tube / port fields] - SPublished 087-JT1 code familiesPC601-SPOC601-SPL601-SPZB601-SPKD6-401-S| ①Fitting geometry | ②Tube and thread | ③Material and color |
|---|---|---|
| PC/POC straight, PL/PLL elbow, PEB/PED/PYB tee, PH/PHF/PHW elbow, PZB cross and PKD multi-port forms are published. | Tube diameters 04, 06, 08, 10 and 12; thread fields include M5 and 01/02/03/04 for PT1/8 through PT1/2, subject to geometry. | S identifies stainless steel 304; gray or black interface/body color is shown for applicable forms. |

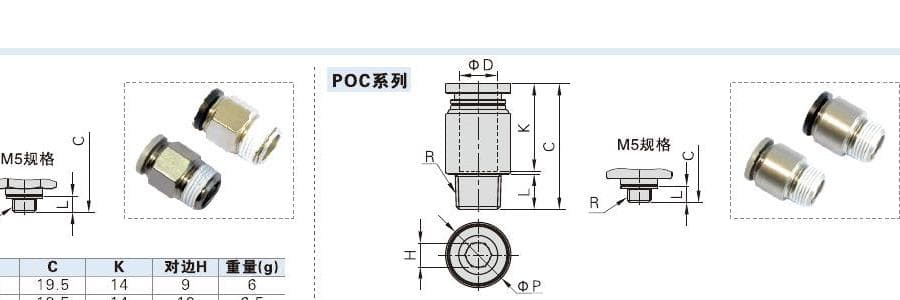

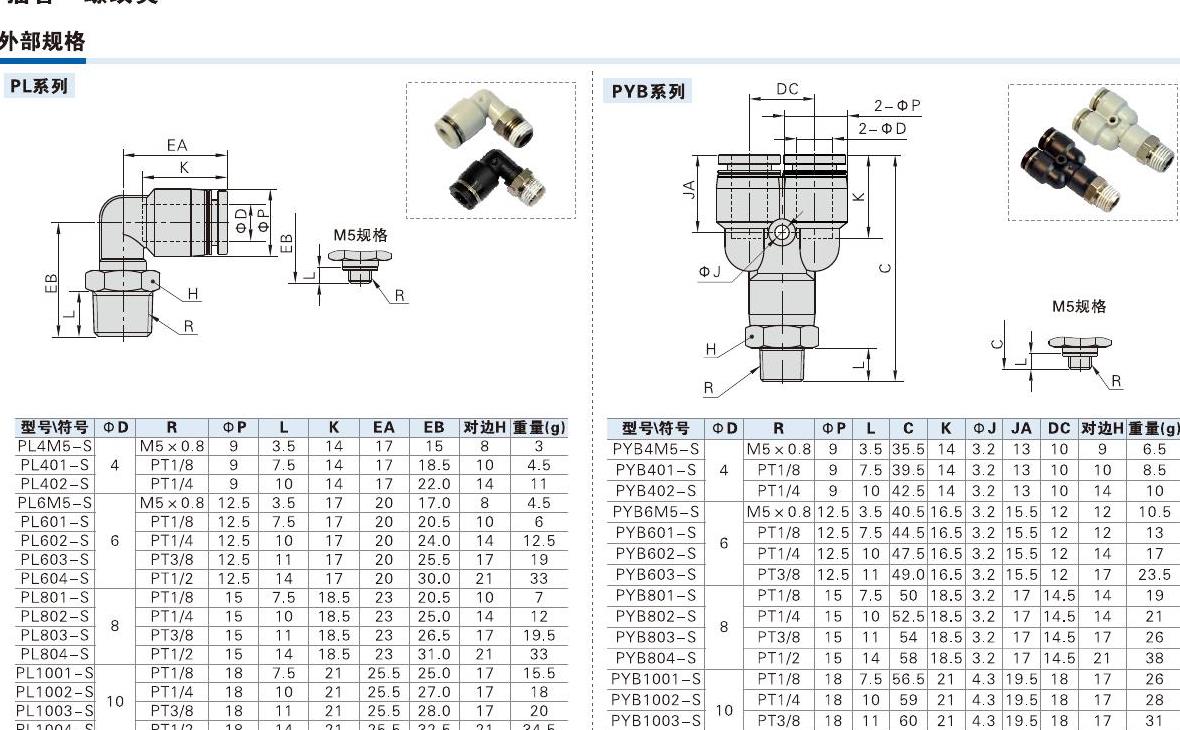

This 087-JT1 document groups several fitting geometries: PC and POC straight fittings, then PL/PLL elbows, PEB/PED/PYB tees, PH/PHF/PHW elbows and PZB/PKD multi-port forms. These are functional choices within one stainless fitting reference, while tube diameter and thread stay matching fields rather than thin URLs.
Product matching reference
Start with the installed geometry and flow path: straight, elbow, tee, cross or multi-port. Then confirm tube outside diameter, thread, color and...
087-JT1
087-JT1 Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
