AirTAC SUS304 BB/BD/BU/BZ threaded fittings for quotation and replacement confirmation. Match a published PT thread pair, stainless -S suffix and installed dimensions. For BD adapters, confirm both actual thread-end genders because the English and Chinese notes conflict.
Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.
Match a Stainless Thread Fitting Code
AirTAC stainless BB/BD/BU/BZ ordering and end directions official English reference
Helpful for Model Matching:
| Source-group boundary | 088-JT2 is a catalogue/source label, not an ordering-code prefix. This family covers stainless BB/BD/BU/BZ threaded fittings with mandatory -S. BKC-S is a separate linked page, not a variant peer within this matrix. |
| Published PT matrix | BB:01-01/02/03;02-02/03/04;03-03/04;04-04. BD:01-02/03/04;02-03/04;03-04. BU:01-01,02-02,03-03,04-04. BZ:01/02/03/04, no thread II. Total23 dimension rows. Blank thread type PT;01=1/8,02=1/4,03=3/8,04=1/2. |
| BD form and end details need confirmation | BB double male; BU double female; BZ external hex male plug. BD male/female: English note says I female/II male, Chinese note says I male/II female. Both dimensions agree on RA/RB; do not assume end assignment from code alone. Send both-end photos and match actual gender and RA/RB drawing before substitution. |
| Material and pressure | S = SUS304 stainless steel, not brass or unspecified316. Operating0–1MPa; proof3.0MPa separately. Negative pressure−750mmHg (10Torr in source). Proof pressure is not continuous service pressure. |
| Temperature and application | Source ambient/fluid temperature0–150°C for these metal threaded fittings. Confirm actual medium, seals, corrosion environment and mating components. A SUS304 suffix alone is not a food-contact, hygiene or washdown certification. |

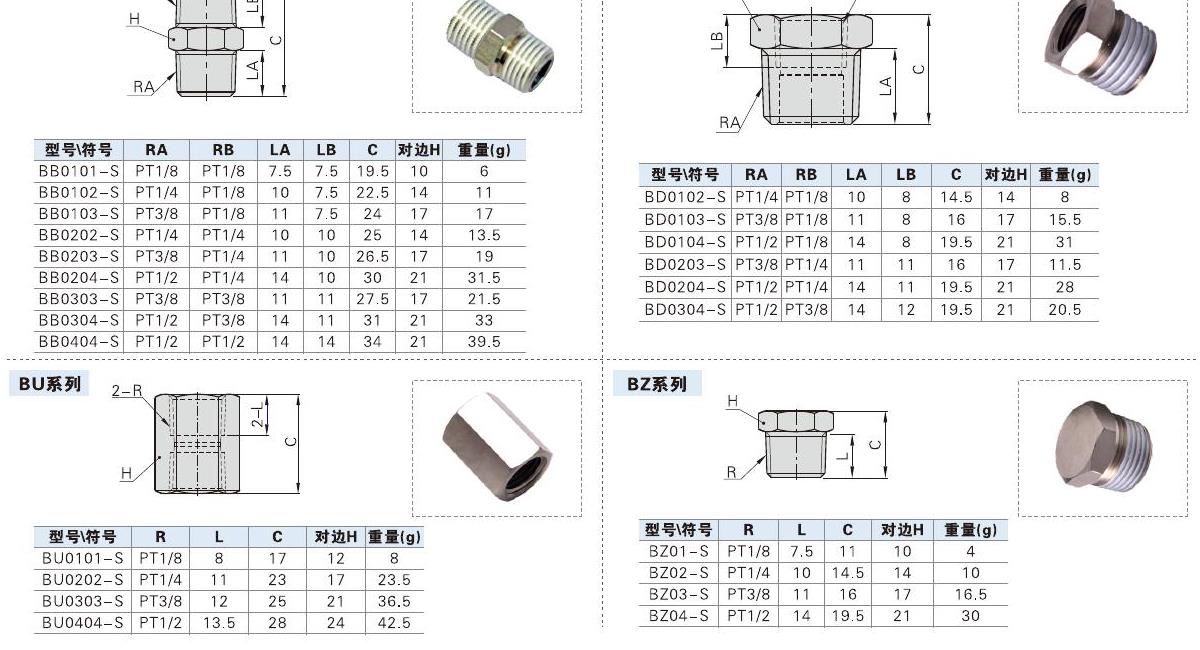

| Own dimensions and weights | Own23 published rows retained, including C, H across flats and weight. BB0102-S:LA10,LB7.5,C22.5,H14mm,11g. BD0102-S:RA PT1/4,RB PT1/8,LA10,LB8,C14.5,H14mm,8g. BU0101-S:L8,C17,H12mm,8g. BZ01-S:L7.5,C11,H10mm,4g. Check installed clearance; compare source drawings rather than treating similar threads as universal substitutes. |
Ordering code matching
Code format

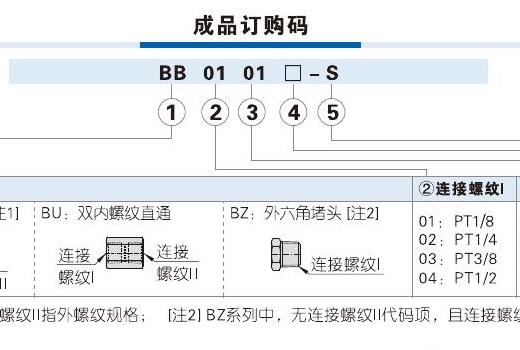

[BB/BD/BU][I][II]-S or BZ[I]-SOnly published PT rows; mandatory SUS304 suffixBB0102-SBD0104-SBU0202-SBZ03-S| 1Form | 2Threads I/II | 3Thread type / material |
|---|---|---|
| BB/BD/BU/BZ | Only23 published pairs; BZ no II | Blank PT; -S SUS304 |
If the label is incomplete, send the readable parts together with a photo.
BB0102-S1Form
BB/BD/BU/BZ
2Threads I/II
Only23 published pairs; BZ no II
3Thread type / material
Blank PT; -S SUS304
AirTAC SUS304 BB/BD/BU/BZ threaded fittings for quotation and replacement confirmation. Match a published PT thread pair, stainless -S suffix and installed dimensions. For BD adapters, confirm both actual thread-end genders because the English and Chinese notes conflict.
Not safely by itself. Official English and Chinese notes reverse I/II male/female assignment. Send both-end photos and dimensions for technical confirmation before replacement.
BB/BD/BU/BZ-S
BB/BD/BU/BZ-S Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
