Identify from the photo
- Complete PTL-MS code or installed-unit photo
- 4 or 6 mm tube OD
- M5 or PT1/8 thread
- A meter-out or B meter-in flow control; gray or black color
AirTAC PTL-MS Mini Push-Lock Stainless Steel Speed Controllers
PTL-MS is the compact push-lock stainless steel speed-controller form for 4 or 6 mm tubing. Confirm tube OD, M5 or PT1/8 thread and A meter-out or B meter-in flow control before RFQ.
Request type
AirTAC originalModel matchingChina-source alternative
PTL-MS-Stainless Steel Fittings

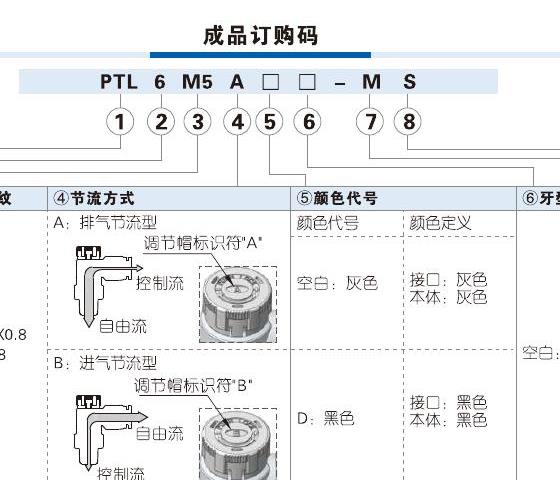

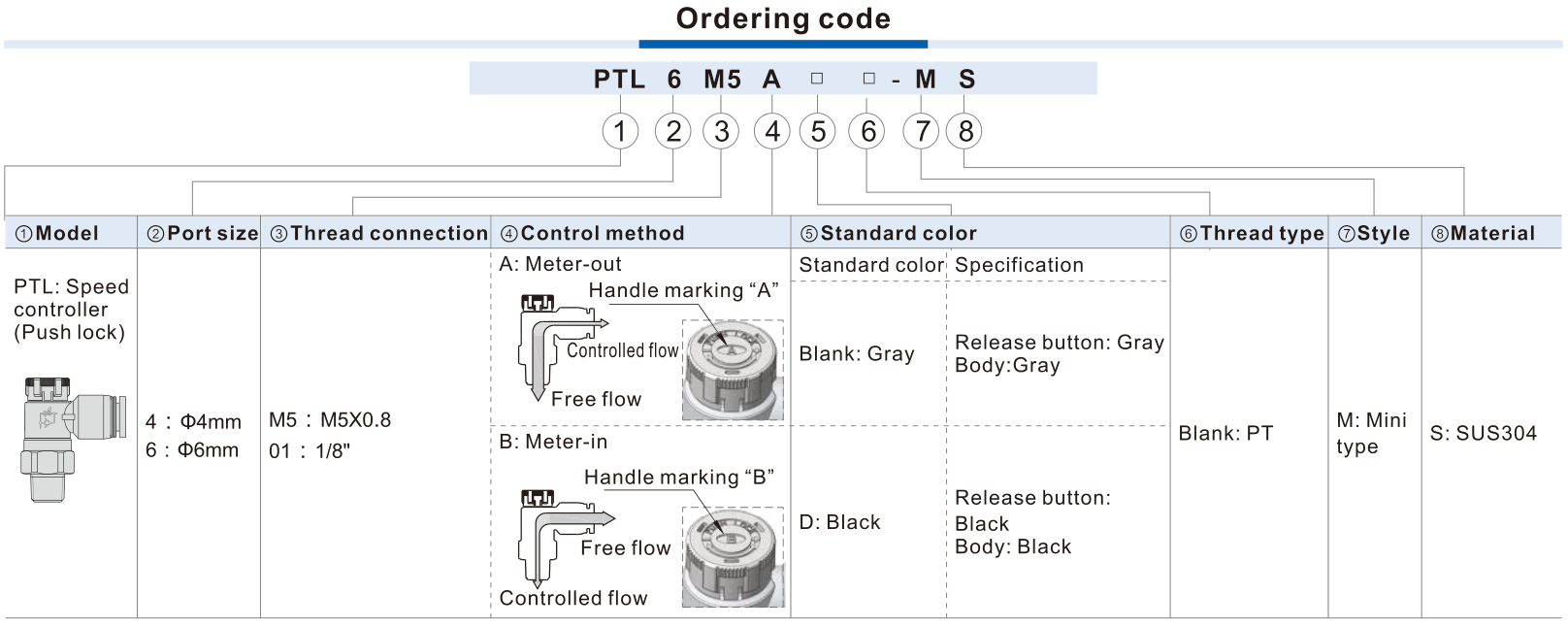

Ordering code matching
Match each code segment
Code format
PTL [4 / 6] [M5 / 01] [A / B] [color] - MSPublished PTL-MS code layoutPTL4M5A-MSPTL401B-MSPTL6M5A-MSPTL601B-MS| ①Tube and thread | ②Throttle direction | ③Configuration |
|---|---|---|
| 4 or 6 mm tube OD with M5 or 01 PT1/8 thread. | A meter-out; B meter-in. | MS: mini push-lock form in stainless steel 304. |
About PTL-MS-
PTL-MS is the compact PTL form. Its published range is limited to 4 and 6 mm tube sizes with M5 or PT1/8 connection; it is not interchangeable with the larger PTL-S range. A is meter-out and B is meter-in throttling, so match the flow mark and circuit before RFQ.
Product matching reference
Compare the photo, drawing, and measurable details first

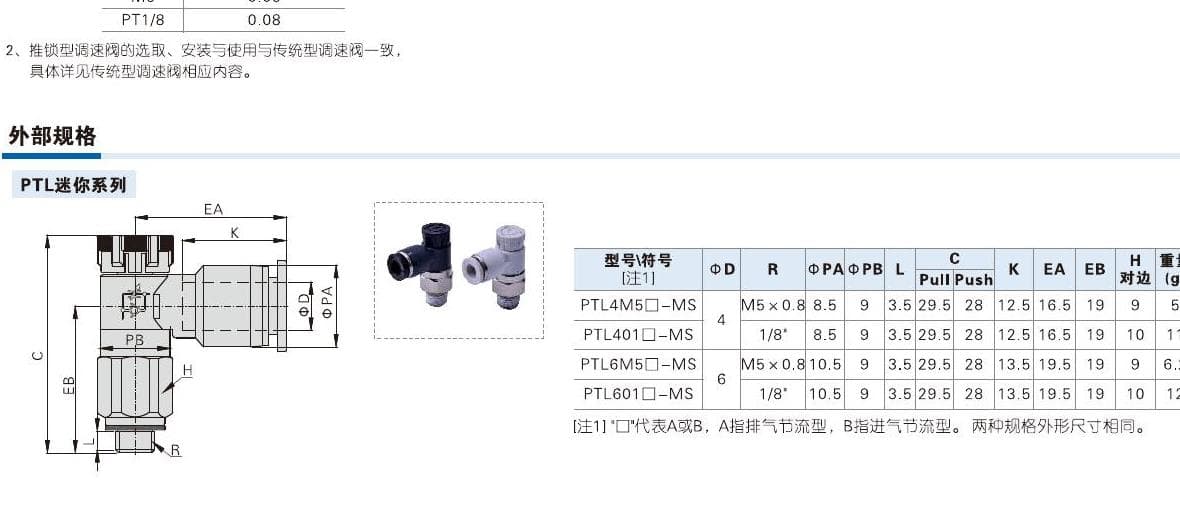

Drawing reference
- Confirm compact PTL-MS push-lock form rather than standard PTL-S
- Match 4/6 mm tube, M5/PT1/8 thread, A/B flow direction and color
Key details for matching
Model patterns
- PTL4M5A-MS
- PTL401A-MS
- PTL6M5A-MS
- PTL601A-MS
Reference details
- Product type: Mini push-lock pneumatic speed controller
- Material: Stainless steel 304
- Operating pressure: 0–1.0 MPa
- Proof pressure: 1.5 MPa
- Published vacuum: −750 mmHg (10 Torr)
- Published temperature range: −20 to 70 °C
- Reference page: PDF page 1
Matching Questions
How is PTL-MS different from PTL-S?
PTL-MS is the compact form published for 4 and 6 mm tubing with M5 or PT1/8 threads. PTL-S covers the larger 6–12 mm range and different thread...
