BSC adds a locking structure to an tie-rod double-acting cylinder; BSCD is the true double-rod member. Match bore, listed stroke, magnet and supported mounting, then send the lock circuit and actual static load for quotation and holding confirmation. Static holding data does not approve dynamic braking or safety use.
Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.
Choose a type; send a model or photo if unsure.
BSC
Single-rod locking cylinder
BSCD
AirTAC BSCD Double-Rod Locking Cylinders
View details →Send the model, quantity and destination. For multiple items, attach a parts list or BOM.
Match a BSC Model and Holding Requirement

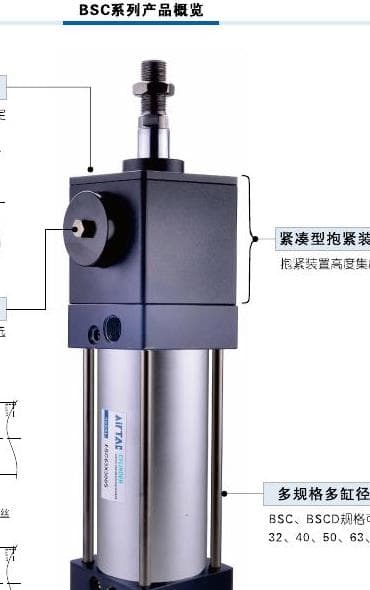

AirTAC BSC procurement overview official reference
Helpful for Model Matching:
| Identity / lock | BSC is an SC tie-rod double-acting cylinder with added locking structure. BSCD is its double-rod member, with both rod ends requiring clearance. The source says it can lock at random positions within stroke and lock state is unrelated to piston movement direction; it does not publish safety certification or dynamic brake capacity. |
| Standard strokes / 32 boundary | 32 standard row explicitly lists 25/50/75/80/100/125/150/160/175/200/250/300/350/400/450/500 mm, though max column says 700. 600/700 for bore 32 require confirmation. 40 adds 600/700/800; 50/63/80/100/125 add 600/700/800/900/1000. Non-standard strokes require consultation. |
| Pressure / unlock | Cylinder operating pressure is 0.15–0.7 MPa; unlocking requires 0.3–0.7 MPa; proof pressure is 1.5 MPa. BSAI unlocking limits do not apply to BSC; proof pressure is not an operating pressure. Confirm actual locking/release pneumatic circuit and load state. |
| Cylinder / lock ports | Cylinder ports: 32 1/8; 40/50 1/4; 63/80 3/8; 100/125 1/2. Cylinder thread blank PT or G, no NPT T. Locking equipment port is fixed G1/8 across bores, distinct from main-cylinder thread/size. |
| Static holding force | 32/40/50/63/80/100/125 static holding force 600/900/1400/2200/3600/5500/8600 N. This is not cylinder thrust, TC bracket holding force, dynamic stopping force, payload kg or a certified fail-safe function. |
| Speed / temperature / air | 32–100 speed 30–800 mm/s; 125 speed 30–500 mm/s. Air through 40 μm filter; −20 to 70°C. Lubrication requirements for BSC need separate confirmation; the generic SC statement does not apply. |
| Cushion / tolerance | Variable cushion stroke: 32/40/50/63 21 mm; 80 28 mm; 100 29 mm; 125 28 mm. Stroke tolerance: 0–250 +1.0/0 mm, 251–1000 +1.5/0, 1001–1500 +2.0/0. The tolerance row does not make 1001–1500 standard strokes. |
| Magnet / accessories | Blank without magnet or S with magnet. Sensors are referred to printed page 409, not present in this source. The sensor model and mounting compatibility require separate confirmation. CR, FTC, high-temperature/seal or rod-knuckle suffixes are not published complete-cylinder ordering options here. |

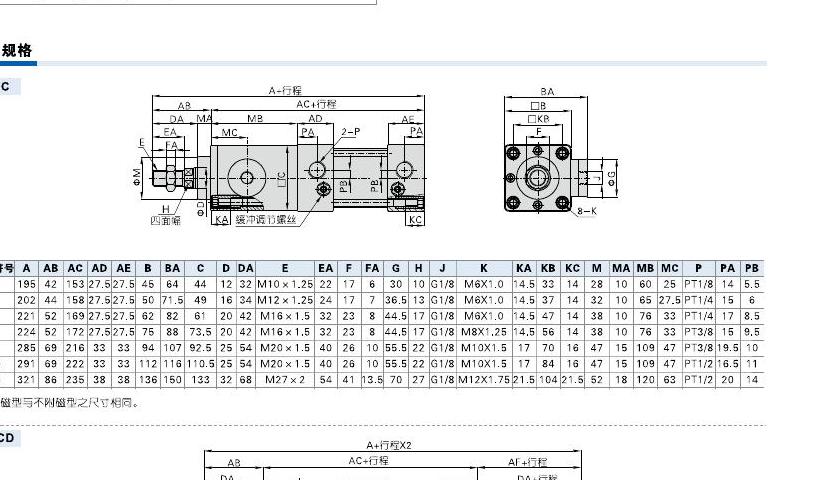

| Dimensions / material | BSCD total A+2×stroke, opposite rod dimensions AF+stroke/DA+stroke; unspecified dimensions follow BSC. Magnet dimensions same as non-magnet. BSCD drawing table only repeats selected dimensions. Lock module material drawing is based on a certain bore, not universal BOM. |
| Static locking / release sequence | The lock may engage only after the piston stops; it cannot brake the moving rod. Release only when piston-side forces are balanced or the air supply is stopped, otherwise sudden motion can occur. Published example circuits are separate for horizontal/vertical installation and show >=0.5 s and 0–0.5 s sequencing intervals; confirm the complete actual circuit and load rather than promise safety certification. |
Ordering code matching
Code format
BSC-[bore]×[listed stroke]-[S]-[supported mounting]-[G]Blank magnet and PT published; mounting scope is model-specificBSC40×100SFABSC80×50SBSC125×100SG| 1Model / bore | 2Standard stroke | 3Magnet / mounting | 4Thread |
|---|---|---|---|
| BSC single rod; BSCD double rod; 32/40/50/63/80/100/125 | Use bore-specific listed strokes; 32 maximum 700 mm but standard row ends at 500 mm; confirm 600/700 mm | Blank no magnet, S magnet; BSCD FB mounting differs between the specification row and ordering illustration; CA/CB single rod only; CR/FTC not published | Blank PT or G for cylinder; lock port G1/8 fixed |
If the label is incomplete, send the readable parts together with a photo.
BSC 80 × 50 SBSC80Model / bore
BSC single rod; BSCD double rod; 32/40/50/63/80/100/125
50Standard stroke
Use bore-specific listed strokes; 32 maximum 700 mm but standard row ends at 500 mm; confirm 600/700 mm
SMagnet / mounting
Blank no magnet, S magnet; BSCD FB mounting differs between the specification row and ordering illustration; CA/CB single rod only; CR/FTC not published
PTThread
Blank PT or G for cylinder; lock port G1/8 fixed
BSC adds a locking structure to an tie-rod double-acting cylinder; BSCD is the true double-rod member. Match bore, listed stroke, magnet and supported mounting, then send the lock circuit and actual static load for quotation and holding confirmation. Static holding data does not approve dynamic braking or safety use.
No dynamic stopping or safety certification is published here. Confirm the actual lock circuit, motion state and static load before selecting the assembly.
The maximum column says 700, but its explicit standard list stops at 500. Send the original requirement for confirmation. Do not replace this row with the SC standard-stroke list.
BSC
