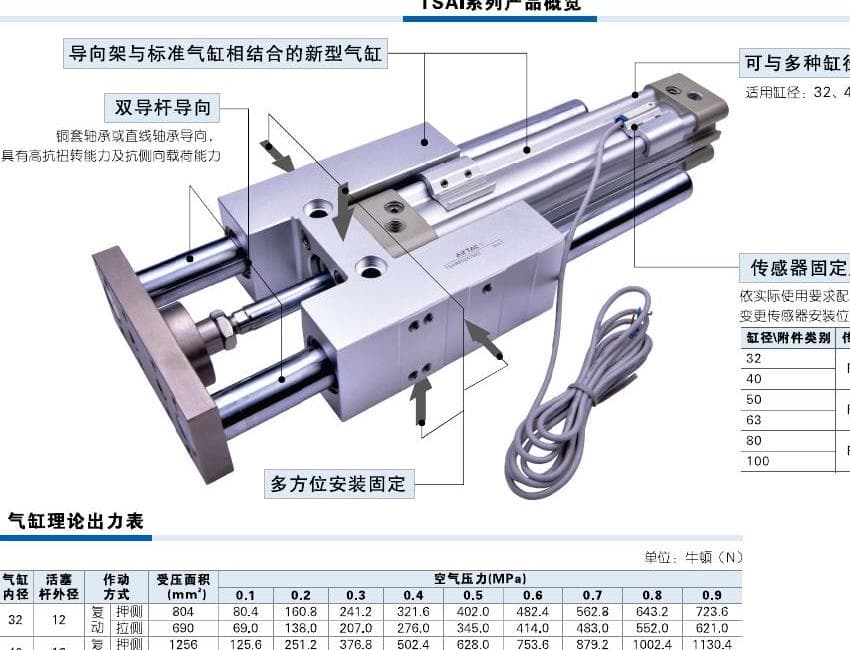

TSAI combines a pneumatic cylinder with a guided frame for higher resistance to rotation and side load. Match the guide type, bore, stroke, magnetic option, sensor bracket and installed...
Match a TSAI model code
Ordering code matching
Code format

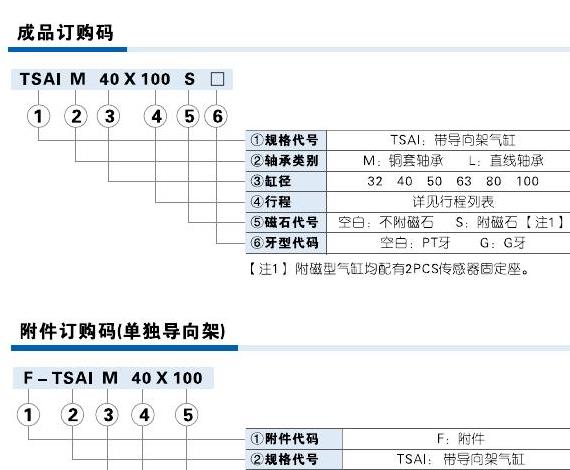

TSAI [M/L] [bore] × [stroke] [S]TSAI cylinder code layoutF-TSAI [M/L] [bore] × [stroke]Separate guide-frame accessory codeTSAI M 40 × 100 SF-TSAI32E| ①Guide cylinder | ②Guide type | ③Bore / stroke | ④Options |
|---|---|---|---|
| TSAI | M: steel-ball guide; L: linear bearing | 32, 40, 50, 63, 80, 100 mm; published standard strokes | S magnetic option; F-TSAI guide-frame accessory code. |

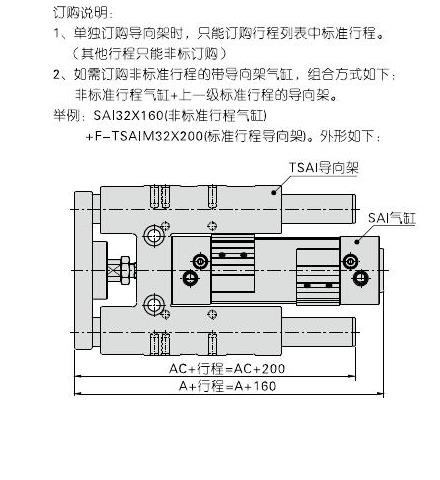

TSAI is a guided-cylinder assembly rather than an ordinary standard cylinder. The code distinguishes M steel-ball guide and L linear-bearing guide; F-TSAI is an accessory guide-frame code. S is a magnetic option, not a separate page.
Product matching reference
No. TSAI combines the cylinder with a guided frame. Confirm the guide type and side-load requirements; a plain cylinder match is not sufficient.
