AirTAC TWQ Stopper Cylinders

TWQ is a fixed-height stopper-cylinder family for conveyor and fixture work. Confirm double- or single-acting configuration, bore, stroke, stopper-rod form, magnetic option, self-lock...

Request type
AirTAC originalModel matchingChina-source alternative
Start RFQSend photo / label
TWQStopper Cylinders

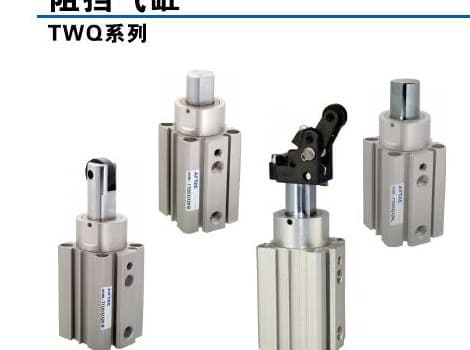

TWQ stopper cylinder family reference
Verified product-family reference image.

About TWQ

TWQ is the published fixed-height double-acting stopper configuration; TTQ is the single-acting version. It has a different body and fixed mounting platform from the height-adjustable TWG family, so the installation interface must be matched.

Product matching reference

Compare the photo, drawing, and measurable details first

Identify from the photo
TWQ stopper cylinder family reference
  • Full TWQ or TTQ code or readable label
  • Fixed-height TWQ double acting or TTQ single acting
  • Bore 20, 25, 32, 40, or 50 mm and published stroke
  • C/B/R/K stopper-rod form, magnetic and self-lock option
  • Mounting interface, port thread and installed clearance
Drawing reference

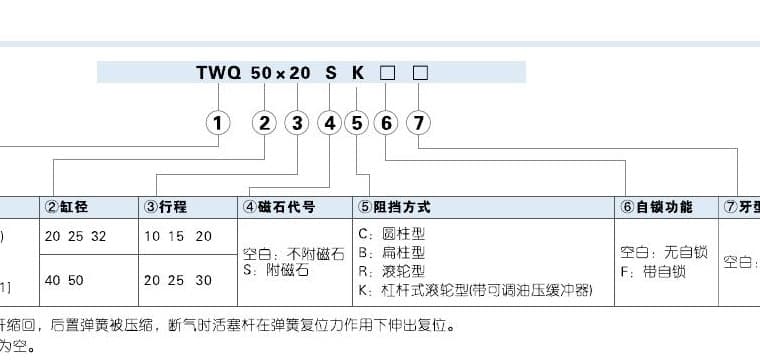

TWQ stopper cylinder ordering code referenceOpen drawing
  • Confirm fixed-height TWQ double-acting or TTQ single-acting stopper configuration
  • Compare bore, stroke, stopper-rod form, magnetic option, self-lock option, fixed mounting interface and installed clearance
Key details for matching

Model patterns

  • TWQ
  • TTQ
  • TWQ50X20SK
  • TWQ-50X20-S-K-F

Reference details

  • Product type: Fixed-height stopper cylinder family
  • Published bores: 20, 25, 32, 40, 50 mm
  • Published operating pressure: TWQ 0.15–1.0 MPa; TTQ range varies by bore
  • Reference pages: PDF pages 1–2

Matching Questions

How does TWQ differ from TWG?

TWQ uses the published fixed-height body and mounting platform, while TWG is height adjustable. Confirm the installed interface, required actuation...
