AirTAC ACQD Double-Rod Ultra-Thin Cylinder
ACQD is the double-rod ACQ-family configuration. Send both rod-end details, bore, stroke and mounting geometry for an RFQ.
For a quote, include the model code, quantity, and destination. A photo or label is useful when the code is incomplete.
Match an ACQ model code
Enter the code from the label. Spaces and ×/x formats work.
ACQDUltra-Thin Cylinders
Product image reserved
The matching image will be added after model verification.
Part of the ACQ Series family.
View family overview →Ordering code matching
Match each code segment
Code format
ACQD [bore] × [stroke] [S] [B] [PT/G/NPT]Published code layout; optional positions depend on the selected configurationACQD 20 × 30 S B [PT]| ①Model | ②Bore (mm) | ③Stroke | ④Options | ⑤Thread |
|---|---|---|---|---|
| ACQD: Double rod | 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm | Compare the required travel with the published stroke table and installed cylinder. | S: magnetic option; B: male rod-end option where applicable. Blank positions follow the published code guide. | Blank: PT; G or NPT where shown in the published guide. |
Technical reference
Drawing and key data

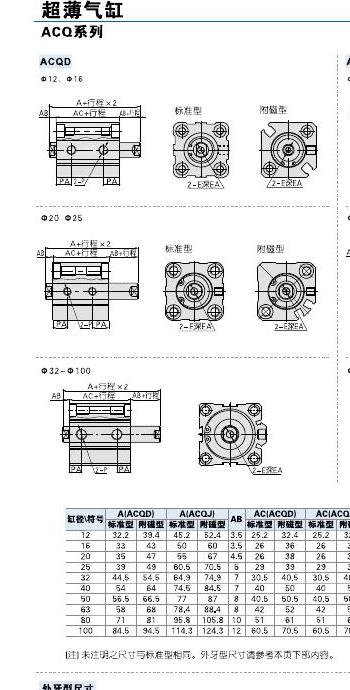

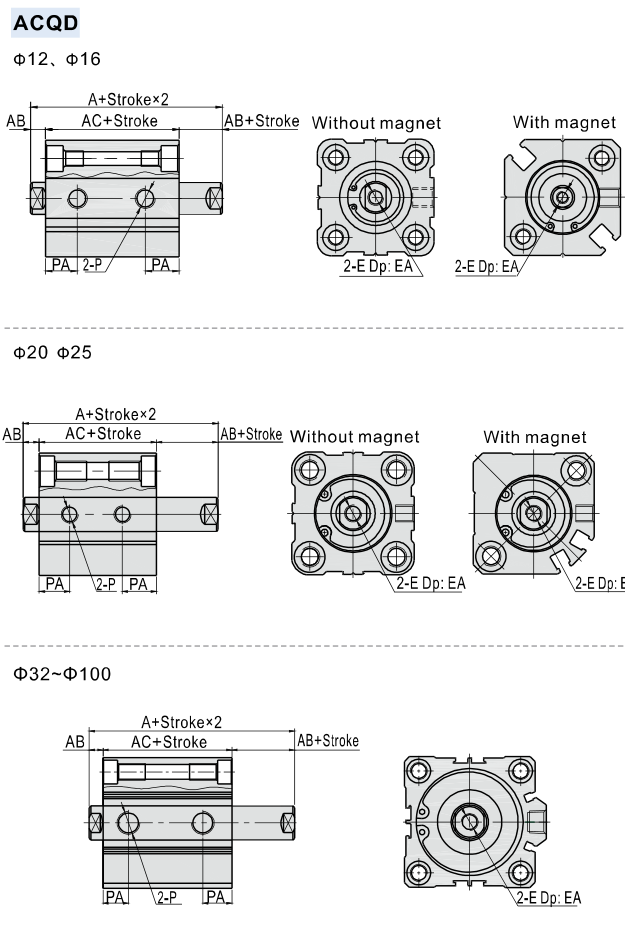

Installation drawing
- Double-rod arrangement: compare both rod ends with the installed cylinder
- Compare bore, stroke, both rod ends, and mounting geometry
- Check clearance on both sides of the installed cylinder
Key data
Model patterns
- ACQD
- Double rod
- ACQD 20 × 30 S B [PT]
Reference details
- Family: ACQ ultra-thin cylinder family
- Configuration: Double rod
- Published bores: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm
- Reference drawing: ACQD exterior drawing, PDF page 4
Quick check
What distinguishes ACQD in the ACQ family?
ACQD has rods on both sides. It is structurally different from standard ACQ and must be checked against the installed interfaces.
ACQD
Include this series in a project RFQ
ACQD Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
