AirTAC ACQJ Adjustable-Stroke Ultra-Thin Cylinder
ACQJ is the adjustable-stroke ACQ-family configuration. Send bore, normal stroke, adjustment...
Official reference
Based on manufacturer documentation
Model support
For model confirmation
Parts lists
Code, photo, or BOM
Availability / lead time
By model and quantity
Sourcing route & inquiry details
ACQJ is the adjustable-stroke ACQ-family configuration. Send bore, normal stroke, adjustment value and rod-end details for an RFQ. Know the model? Request a quote directly. An incomplete label or photo is enough to start.
Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.
Match an ACQ model code
Enter the code from the label. Spaces and ×/x formats work. TACQ is included.
Part of the ACQ Series family.
View family overview →Installation Drawings & Technical Specifications

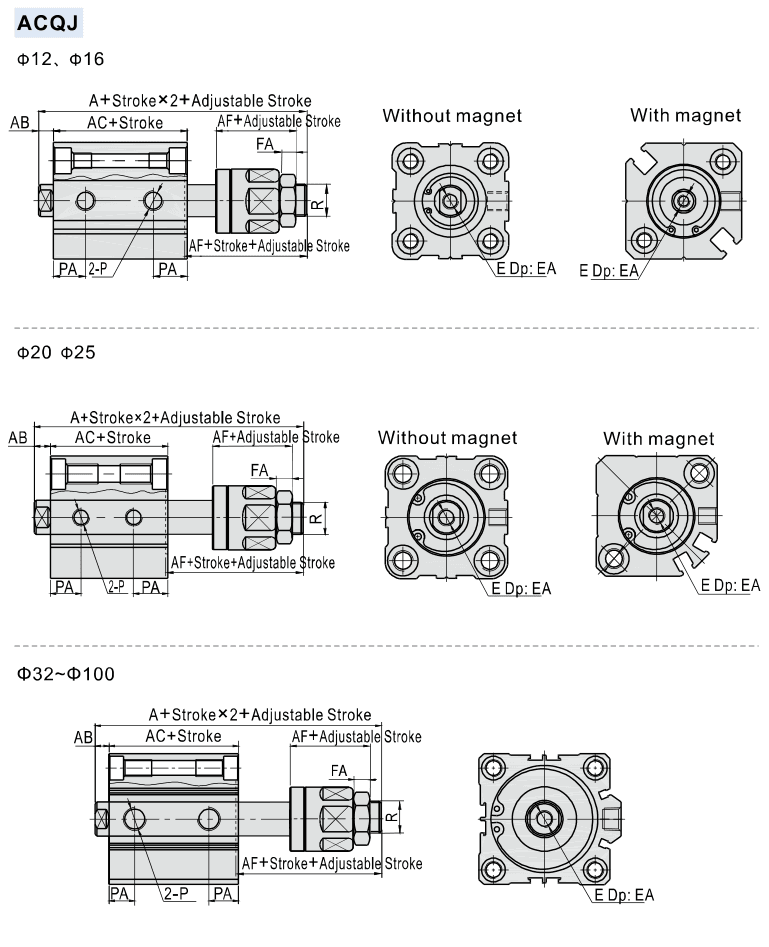

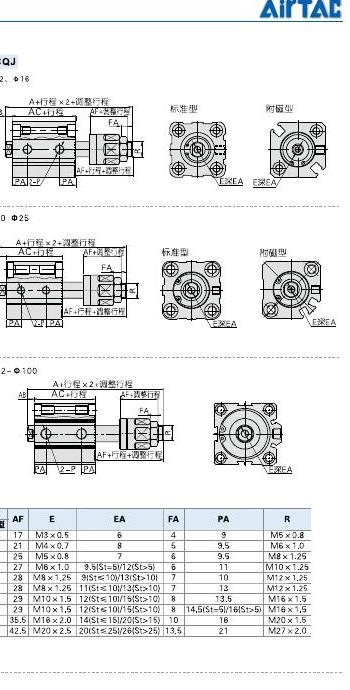

ACQJ installation dimensions
Helpful for Model Matching:
- Full ACQJ code or cylinder label
- Required motion, bore, and stroke
- Mounting, port, rod-end, and installed clearance
- Magnet option and sensor requirement where applicable
- Use the ACQJ drawing and bore/stroke section
- Compare mounting, ports and installed clearance where fit matters
Catalogue Technical Specifications
| Family | ACQ ultra-thin cylinder family |
| Configuration | Adjustable stroke / Einstellbarer Hub |
| Published bores | 12, 16, 20, 25, 32, 40, 50, 63, 80, 100; big bore: 125, 140, 160 mm |
| Published design | JIS compact cylinder (catalogue statement) |
| Operating pressure | 0.15–1.0 MPa |
| Proof pressure | 1.5 MPa |
| Temperature | −20 to +70 °C |
| Speed | 30–500 mm/s |
| Medium / cushion | 40 μm filtered air; bumper |
| Ports | Ø12–25: M5×0.8; Ø32/40: 1/8; Ø50/63: 1/4; Ø80–160: 3/8 (where bore is offered). PT/G/NPT. |
| Published strokes | Standard: Ø12 up to 50, Ø16 up to 60, Ø20–100 up to 100 mm (published steps only). Ø32–100 longer stroke: 125/150/175/200/250/300 mm. Ø125/140/160: 10/20/30/40/50/75/100/125/150/175/200/250/300 mm. |
| Stroke tolerance | ≤100 mm: +1.0/0 mm; >100 mm: +1.5/0 mm |
Ordering Codes, Fit Verification & Specifications
Ordering code matching
Match each code segment
Code format
ACQJ [bore] × [stroke]-[adjustment] [S] [B] [FA/FB/LB] [G/T]Blank thread: PT. T: NPT. Big bores require S and have no mounting field.ACQJ 20 × 30-30 S B [PT]| ①Model | ②Bore (mm) | ③Stroke | ④Options | ⑤Mounting | ⑥Thread |
|---|---|---|---|---|---|
| ACQJ: Adjustable stroke | 12, 16, 20, 25, 32, 40, 50, 63, 80, 100; big bore: 125, 140, 160 mm | Standard: Ø12 up to 50, Ø16 up to 60, Ø20–100 up to 100 mm (published steps only). Ø32–100 longer stroke: 125/150/175/200/250/300 mm. Ø125/140/160: 10/20/30/40/50/75/100/125/150/175/200/250/300 mm. | ACQJ adds an adjustable-stroke value. S: magnetic option; B: male rod-end option where applicable. | Blank / FA / FB / LB; no CB. Big bores: no accessories listed. | Blank: PT; G: G; T: NPT. [PT/G/NPT] is the readable display. |
Quick check
What distinguishes ACQJ in the ACQ family?
ACQJ includes a normal stroke and an adjustment value. Both values are needed to identify the configuration.
ACQJ
Include this series in a project RFQ
ACQJ Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
