AirTAC ATQ Single-Acting Pull Ultra-Thin Cylinder
ATQ is the single-acting pull version in the ACQ ultra-thin cylinder family. Send the code or...
Official reference
Based on manufacturer documentation
Model support
For model confirmation
Parts lists
Code, photo, or BOM
Availability / lead time
By model and quantity
Sourcing route & inquiry details
ATQ is the single-acting pull version in the ACQ ultra-thin cylinder family. Send the code or label with working direction, bore and stroke for an RFQ. Know the model? Request a quote directly. An incomplete label or photo is enough to start.
Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.
Match an ACQ model code
Enter the code from the label. Spaces and ×/x formats work. TACQ is included.
Part of the ACQ Series family.
View family overview →Installation Drawings & Technical Specifications

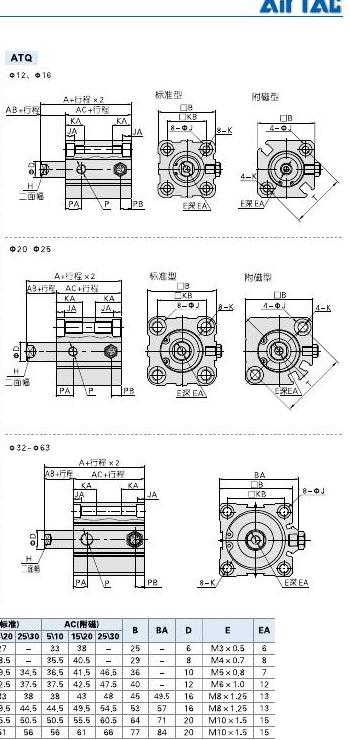

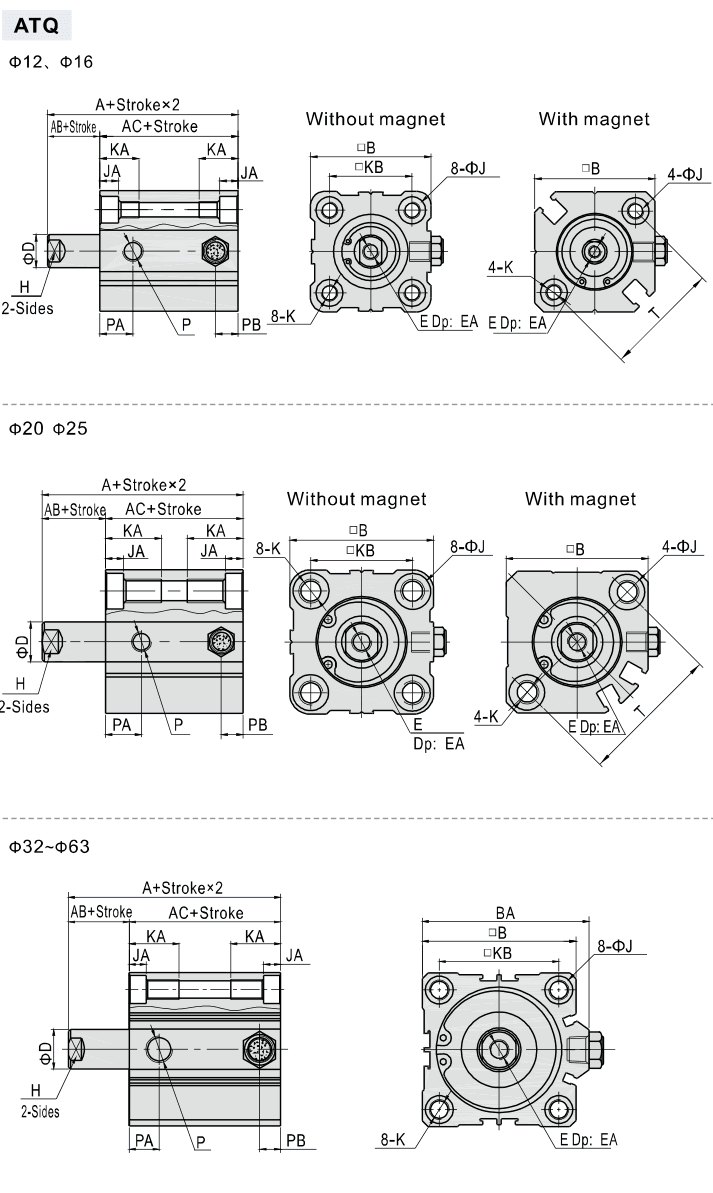

ATQ installation dimensions
Helpful for Model Matching:
- Full ATQ code or cylinder label
- Required motion, bore, and stroke
- Mounting, port, rod-end, and installed clearance
- Magnet option and sensor requirement where applicable
- Use the ATQ drawing and bore/stroke section
- Compare mounting, ports and installed clearance where fit matters
Catalogue Technical Specifications
| Family | ACQ ultra-thin cylinder family |
| Configuration | Single acting, pull type / Einfachwirkend, Zugausführung |
| Published bores | 12, 16, 20, 25, 32, 40, 50, 63 mm |
| Published design | JIS compact cylinder (catalogue statement) |
| Operating pressure | 0.2–1.0 MPa |
| Proof pressure | 1.5 MPa |
| Temperature | −20 to +70 °C |
| Speed | 50–500 mm/s |
| Medium / cushion | 40 μm filtered air; bumper |
| Ports | Ø12–25: M5×0.8; Ø32/40: 1/8; Ø50/63: 1/4; Ø80–160: 3/8 (where bore is offered). PT/G/NPT. |
| Published strokes | Ø12: 5/10/15/20; Ø16: 5/10/15/20/25; Ø20–63: 5/10/15/20/25/30 mm |
| Stroke tolerance | +1.0/0 mm |
Ordering Codes, Fit Verification & Specifications
Ordering code matching
Match each code segment
Code format
ATQ [bore] × [stroke] [S] [B] [FA/FB/CB/LB] [G/T]Blank thread: PT; G: G; T: NPT. Options follow the member-specific guide.ATQ 20 × 30 S B [PT]| ①Model | ②Bore (mm) | ③Stroke | ④Options | ⑤Mounting | ⑥Thread |
|---|---|---|---|---|---|
| ATQ: Single acting, pull type | 12, 16, 20, 25, 32, 40, 50, 63 mm | Ø12: 5/10/15/20; Ø16: 5/10/15/20/25; Ø20–63: 5/10/15/20/25/30 mm | S: magnetic option; B: male rod-end option where applicable. Blank positions follow the published code guide. | Blank / FA / FB / CB / LB; big bores: no accessories listed. | Blank: PT; G: G; T: NPT. [PT/G/NPT] is the readable display. |
Quick check
What distinguishes ATQ in the ACQ family?
ATQ is used for single-acting pull motion. The required motion comes before a dimensional comparison with ASQ or ACQ.
ATQ
Include this series in a project RFQ
ATQ Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
