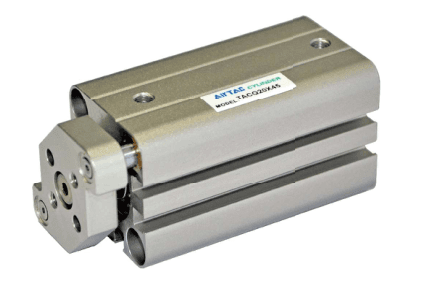

AirTAC TACQ Guided Compact Cylinder
TACQ is the ACQ-family double-acting model with two guide rods for non-rotating motion. Know...
Official reference
Based on manufacturer documentation
Model support
For model confirmation
Parts lists
Code, photo, or BOM
Availability / lead time
By model and quantity
Sourcing route & inquiry details
TACQ is the ACQ-family double-acting model with two guide rods for non-rotating motion. Know the model? Request a quote directly. An incomplete label or photo is enough to start.
Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.
Match an ACQ model code
Enter the code from the label. Spaces and ×/x formats work. TACQ is included.
Part of the ACQ Series family.
View family overview →Installation Drawings & Technical Specifications

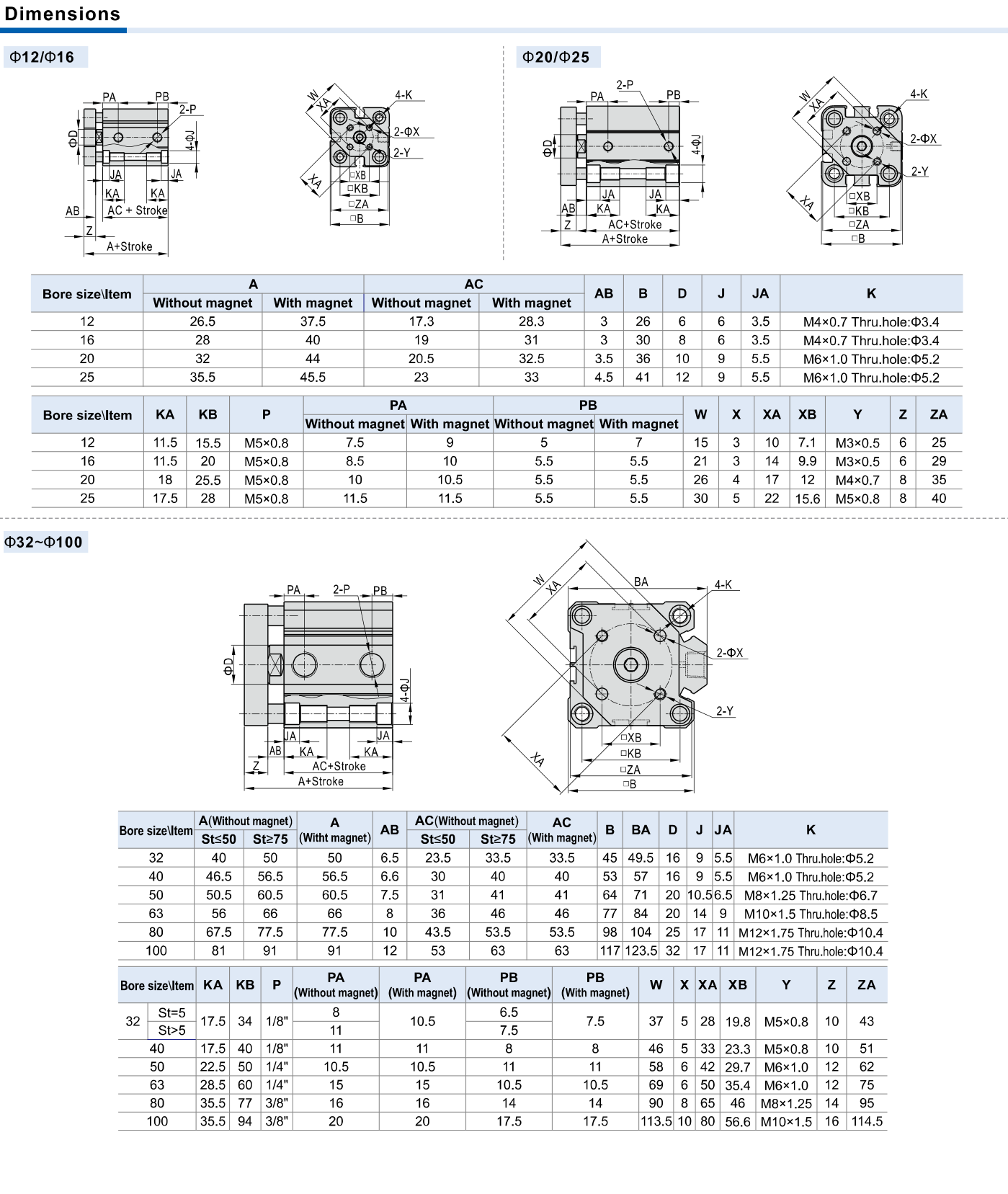

TACQ installation dimensions
Helpful for Model Matching:
- Full TACQ code or cylinder label
- Required motion, bore, and stroke
- Mounting, port, rod-end, and installed clearance
- Magnet option and sensor requirement where applicable
- Use the TACQ drawing and bore/stroke section
- Compare mounting, ports and installed clearance where fit matters
- Send load, speed, stroke and fixture geometry to check published load limits
- Non-rotating tolerance at retract: ±0.2° for Ø12/16; ±0.15° for Ø20–100
Catalogue Technical Specifications
| Family | ACQ ultra-thin cylinder family |
| Configuration | Double acting with guide rods / Doppeltwirkend mit zwei Führungsstangen |
| Published bores | 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm |
| Published design | JIS compact cylinder (catalogue statement) |
| Operating pressure | 0.15–1.0 MPa |
| Proof pressure | 1.5 MPa |
| Temperature | −20 to +70 °C |
| Speed | 30–500 mm/s |
| Medium / cushion | 40 μm filtered air; bumper |
| Ports | Ø12–25: M5×0.8; Ø32: 1/8 at stroke ≤5, 1/4 at stroke ≥10; Ø40: 1/8; Ø50/63: 1/4; Ø80/100: 3/8. PT/G/NPT. |
| Published strokes | Ø12/16: 5–30; Ø20/25: 5–50; Ø32/40: 5–50 + 75/100; Ø50–100: 10–50 + 75/100 mm (published steps only) |
| Stroke tolerance | +1.0/0 mm |
| Non-rotating tolerance at retract | Ø12/16: ±0.2°; Ø20–100: ±0.15° |
| Load limits | Refer to printed 118: torque, lateral load, mass and speed depend on bore, stroke and fixture geometry; send application details. |
Ordering Codes, Fit Verification & Specifications
Ordering code matching
Match each code segment
Code format
TACQ [bore] × [stroke] [S] [G/T]Blank thread: PT; G: G; T: NPT. Options follow the member-specific guide.TACQ 50 × 100 S [PT]| ①Model | ②Bore (mm) | ③Stroke | ④Options | ⑤Mounting | ⑥Thread |
|---|---|---|---|---|---|
| TACQ: Double acting with guide rods | 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm | Ø12/16: 5–30; Ø20/25: 5–50; Ø32/40: 5–50 + 75/100; Ø50–100: 10–50 + 75/100 mm (published steps only) | S: with magnet; blank: without magnet. No B rod-end or mounting field. | No mounting field. | Blank: PT; G: G; T: NPT. [PT/G/NPT] is the readable display. |
Quick check
What distinguishes TACQ in the ACQ family?
TACQ uses two guide rods and a fixing plate. Its bore-dependent stroke limits, non-rotating tolerance and load limits differ from ACQ. Send the model or installation photo for a quote; where loads matter, include load, speed and mounting geometry.
