AirTAC SDAD Double-Rod Compact Cylinder
SDAD is the double-rod member of the SDA compact-cylinder family. For an RFQ, send the code...
Official reference
Based on manufacturer documentation
Model support
For model confirmation
Parts lists
Code, photo, or BOM
Availability / lead time
By model and quantity
Sourcing route & inquiry details
SDAD is the double-rod member of the SDA compact-cylinder family. For an RFQ, send the code or label with both rod-end details, bore, stroke, and mounting geometry.
Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.
Match an SDA model code
If you know the full code, enter it here to quickly find the matching configuration. If unsure, send a photo or label.
Part of the SDA Series family.
View family overview →Installation Drawings & Technical Specifications

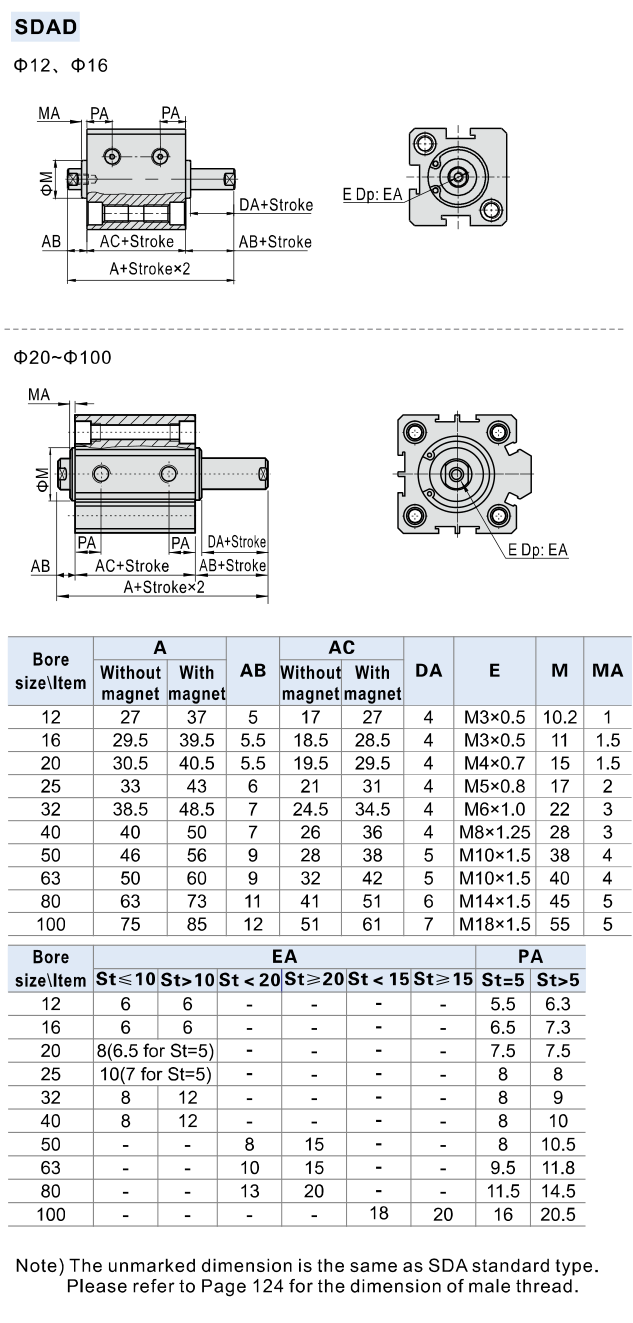

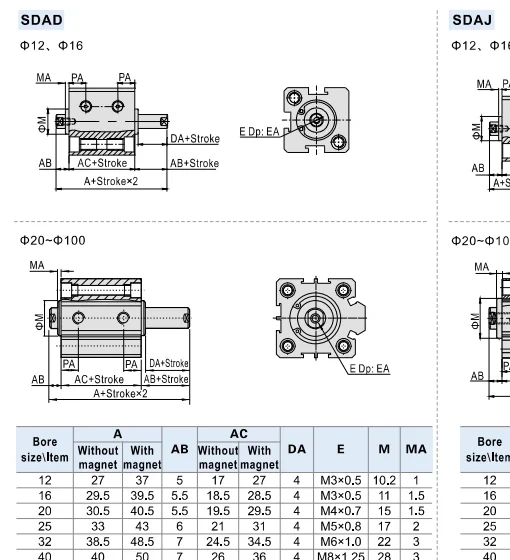

SDAD dimensions; male rod-end dimensions are on the SDA standard sheet
Helpful for Model Matching:
- Full SDAD code or label
- Bore and required stroke
- Both rod ends and thread types
- Mounting geometry and clearance on both sides
- Double-rod arrangement: compare both rod ends with the installed cylinder
- Compare bore, stroke, both rod ends, and mounting geometry
- Check clearance on both sides of the installed cylinder
Catalogue Technical Specifications
| Port sizes by bore | 12/16: M5×0.8; 20/25/32/40: PT1/8; 50/63: PT1/4; 80/100: PT3/8 |
| Stroke tolerance | ≤100 mm: +1.0/0 mm; >100 mm: +1.5/0 mm |
| Proof pressure | 1.5 MPa (15 bar) |
| Temperature | −20 to +70 °C |
| Medium | Air filtered through a 40 μm filter element |
| Speed range | 30–500 mm/s |
| Cushion | Bumper |
| Series family | SDA compact-cylinder family |
| Acting type | Double acting, double rod |
| Bore sizes | 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm |
| Working pressure | 0.15–1.0 MPa (22–145 psi / 1.5–10 bar) |
| Standard stroke | 5–130 mm depending on bore and magnet option; see the published stroke table |
| RFQ details | Family code, bore, stroke, rod end and installed dimensions |
Ordering Codes, Fit Verification & Specifications
Ordering code matching
Match each code segment
Code format
SDAD [bore] × [stroke] [S] [B] [PT]Published code layout; S and B are optional positionsSDAD 20 × 30 S B [PT]Code exampleSDAD 20 × 30 S B [PT]| ①Model | ②Bore (mm) | ③Stroke | ④Adjustable stroke | ⑤Magnet | ⑥Rod type | ⑦Thread type |
|---|---|---|---|---|---|---|
| SDAD: Double acting, double rod | 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm | 5–130 mm depending on bore and magnet option; see the published stroke table | No code at this position | Blank: without magnet S: with magnet | Blank: female thread B: male thread | Blank: PT |
Quick check
What must be checked first for an SDAD replacement?
Check the double-rod arrangement first, then both rod ends, bore, stroke, and mounting geometry. A body-only comparison is not enough.
Can I send a photo when the code is incomplete?
Yes. Send the readable label, a clear photo of the cylinder and rod end, plus the installed dimensions and required motion. This allows the family and configuration to be checked before quotation.
