AirTAC SDAJ Adjustable-Stroke Compact Cylinder
SDAJ is the adjustable-stroke member of the SDA compact-cylinder family. For an RFQ, send the code or label with bore, normal stroke, and adjustment range.
For a quote, include the model code, quantity, and destination. A photo or label is useful when the code is incomplete.
Match an SDA model code
Enter the code from the label. Spaces and ×/x formats work.
SDAJUltra-Thin Cylinders
Product image reserved
The matching image will be added after model verification.
Part of the SDA Series family.
View family overview →Ordering code matching
Match each code segment
Code format
SDAJ [bore] × [stroke]-[adjustable stroke] [S] [B] [PT]Published code layout; S and B are optional positionsSDAJ 20 × 30-30 S B [PT]Code exampleSDAJ 20 × 30-30 S B [PT]| ①Model | ②Bore (mm) | ③Stroke | ④Adjustable stroke | ⑤Magnet | ⑥Rod type | ⑦Thread type |
|---|---|---|---|---|---|---|
| SDAJ: Adjustable stroke | 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm | Published standard options vary by bore; 5–100 mm range | 10, 20, 30, 40, 50, 75, 100 mm | Blank: without magnet S: with magnet | Blank: female thread B: male thread | Blank: PT |
Technical reference

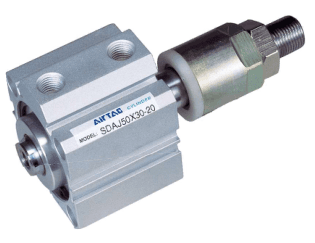

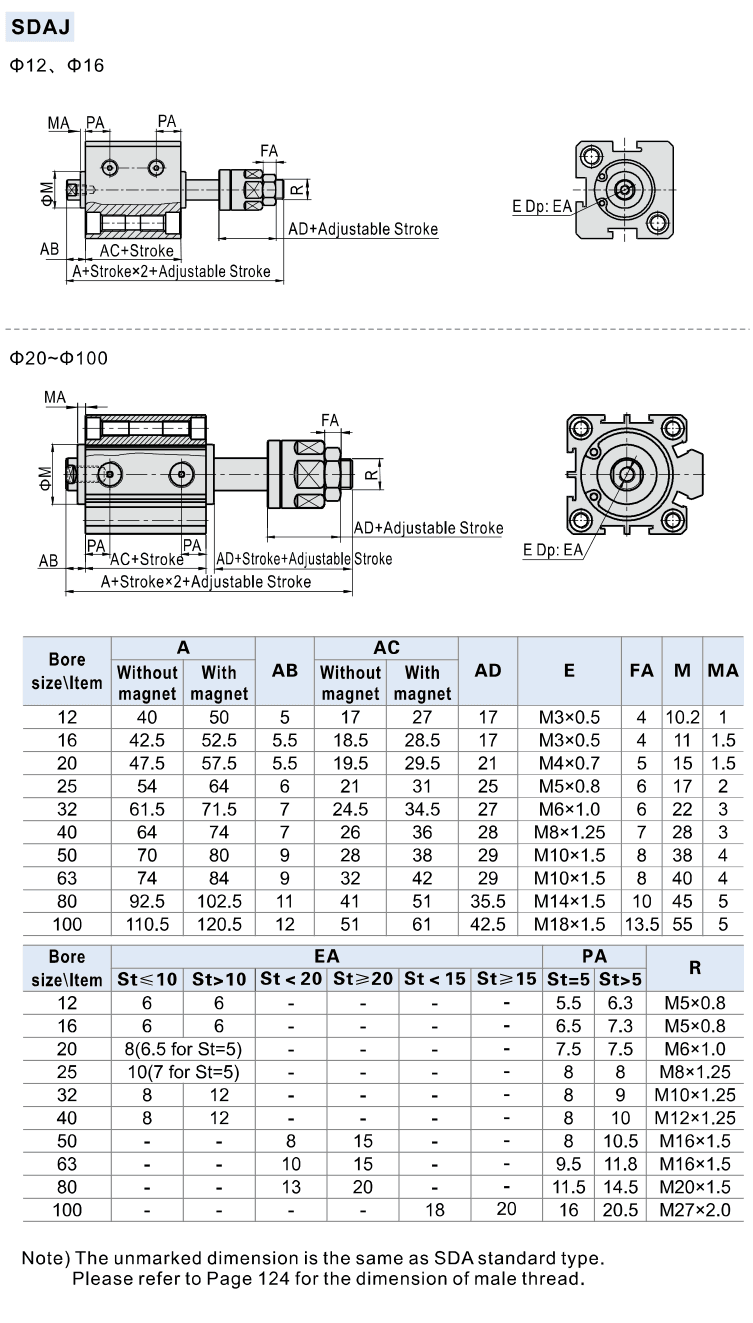

Drawing and key data

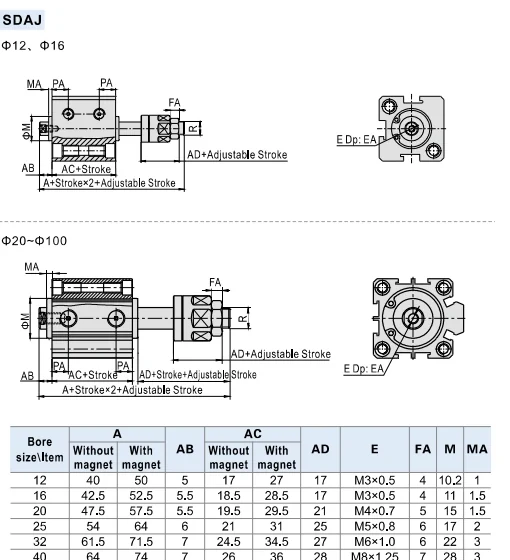

Installation drawing
- Adjustable-stroke configuration: compare it with the installed cylinder
- Compare bore, normal stroke, adjustment range, mounting holes, and rod-end thread
- Check the adjustment-side clearance in the installed assembly
Key data
Model patterns
- SDAJ
- Adjustable stroke
- SDAJ 20 × 30-30 S B [PT]
Reference details
- Series family: SDA compact-cylinder family
- Acting type: Adjustable stroke
- Bore sizes: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm
- Working pressure: 0.15–1.0 MPa (22–145 psi / 1.5–10 bar)
- Standard stroke: Published standard options vary by bore; 5–100 mm range
- RFQ details: Family code, bore, stroke, rod end and installed dimensions
Quick check
What does the second stroke value in an SDAJ code mean?
It is the adjustable-stroke value. Include both visible stroke values from the label or drawing in the RFQ.
SDAJ
Include this series in a project RFQ
SDAJ Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
