AirTAC SDAW Duplex-End Compact Cylinder
SDAW is the duplex-end configuration of the SDA family. Include both stroke values, bore,...
Official reference
Based on manufacturer documentation
Model support
For model confirmation
Parts lists
Code, photo, or BOM
Availability / lead time
By model and quantity
Sourcing route & inquiry details
SDAW is the duplex-end configuration of the SDA family. Include both stroke values, bore, rod-end details and the installed drawing in an RFQ.
Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.
Match an SDA model code
If you know the full code, enter it here to quickly find the matching configuration. If unsure, send a photo or label.
Part of the SDA Series family.
View family overview →Installation Drawings & Technical Specifications

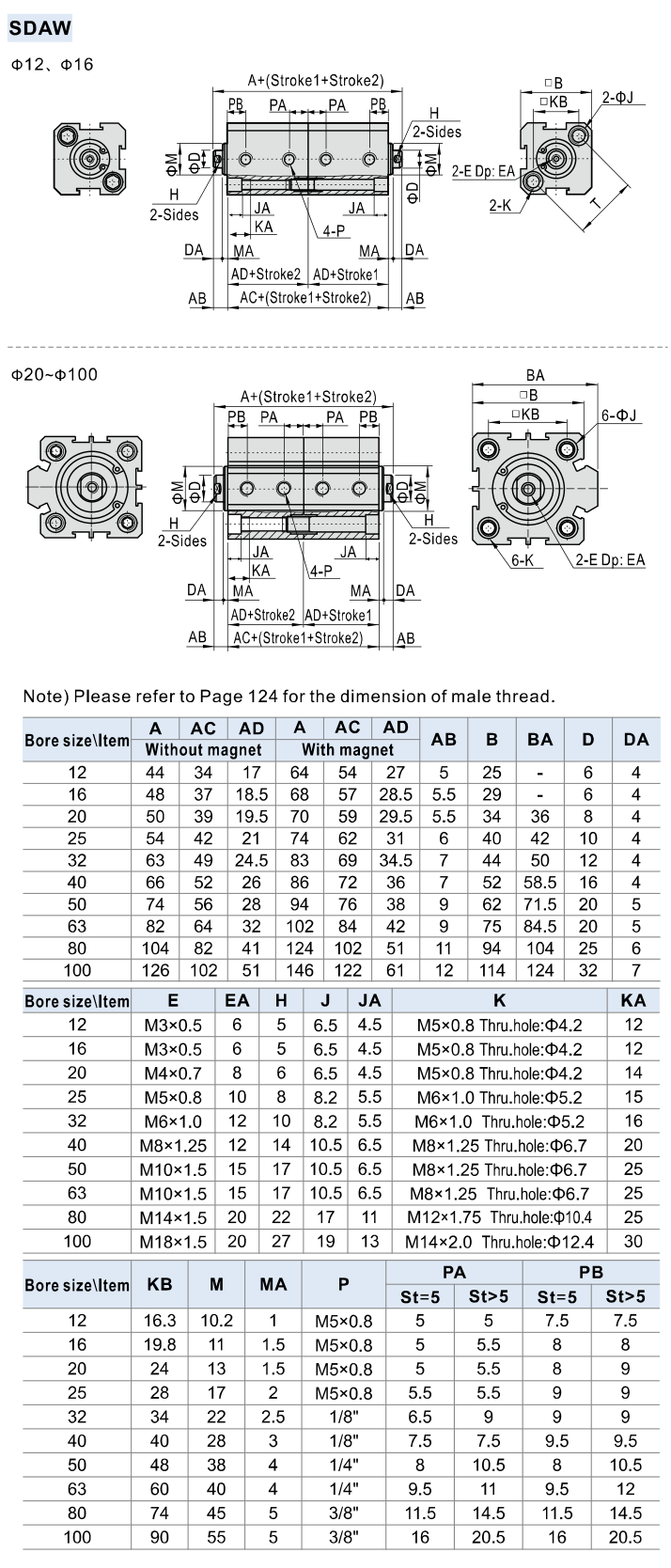

SDAW dimensions; male rod-end dimensions are on the SDA standard sheet
Helpful for Model Matching:
- Full SDAW code or label
- Bore, stroke 1 and stroke 2
- Combined stroke against the bore/magnet stroke table
- Rod arrangement, rod-end threads, ports and installed clearance
- Overall dimensions and installed clearance
- Connection, port, or mounting points
- Relevant travel, thread, or interface dimensions
Catalogue Technical Specifications
| Port sizes by bore | 12/16/20/25: M5×0.8; 32/40: PT1/8; 50/63: PT1/4; 80/100: PT3/8 |
| Stroke tolerance | ≤100 mm: +1.0/0 mm; >100 mm: +1.5/0 mm |
| Proof pressure | 1.5 MPa (15 bar) |
| Temperature | −20 to +70 °C |
| Medium | Air filtered through a 40 μm filter element |
| Speed range | 30–500 mm/s |
| Cushion | Bumper |
| Series family | SDA compact-cylinder family |
| Acting type | Double acting, duplex-end type |
| Bore sizes | 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm |
| Working pressure | 0.15–1.0 MPa (1.5–10 bar) |
| Standard stroke | Stroke 1 + stroke 2 must not exceed the applicable bore/magnet stroke-table value (maximum 50–130 mm depending on configuration) |
| RFQ details | Family code, bore, stroke, rod end and installed dimensions |
Ordering Codes, Fit Verification & Specifications
Ordering code matching
Match each code segment
Code format
SDAW [bore] × [stroke 1] × [stroke 2] [S] [B] [PT]Published code layout; S and B are optional positionsSDAW 20 × 30 × 10 S B [PT]Code exampleSDAW 20 × 30 × 10 S B [PT]| ①Model | ②Bore (mm) | ③Stroke 1 | ④Stroke 2 | ⑤Magnet | ⑥Rod type | ⑦Thread type |
|---|---|---|---|---|---|---|
| SDAW: Double acting, duplex-end type | 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm | Stroke 1 + stroke 2 must not exceed the applicable bore/magnet stroke-table value (maximum 50–130 mm depending on configuration) | Second stroke in mm; stroke 1 + stroke 2 must fit the applicable stroke table | Blank: without magnet S: with magnet | Blank: female thread B: male thread | Blank: PT |
Quick check
What must be confirmed for a SDAW model?
Confirm the duplex-end arrangement against its drawing, both stroke values, bore and magnet option. Stroke 1 + stroke 2 must not exceed the applicable stroke-table value. The second value is a second stroke, not the SDAJ adjustment field.
Can I send a photo when the code is incomplete?
Yes. Send the readable label, a clear photo of the cylinder and rod end, plus the installed dimensions and required motion. This allows the family and configuration to be checked before quotation.
