AirTAC SSA Single-Acting Push Compact Cylinder
SSA is the single-acting push member of the SDA compact-cylinder family. For an RFQ, send the...
Official reference
Based on manufacturer documentation
Model support
For model confirmation
Parts lists
Code, photo, or BOM
Availability / lead time
By model and quantity
Sourcing route & inquiry details
SSA is the single-acting push member of the SDA compact-cylinder family. For an RFQ, send the code or label with the required push direction, bore, and stroke.
Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.
Match an SDA model code
If you know the full code, enter it here to quickly find the matching configuration. If unsure, send a photo or label.
Part of the SDA Series family.
View family overview →Installation Drawings & Technical Specifications

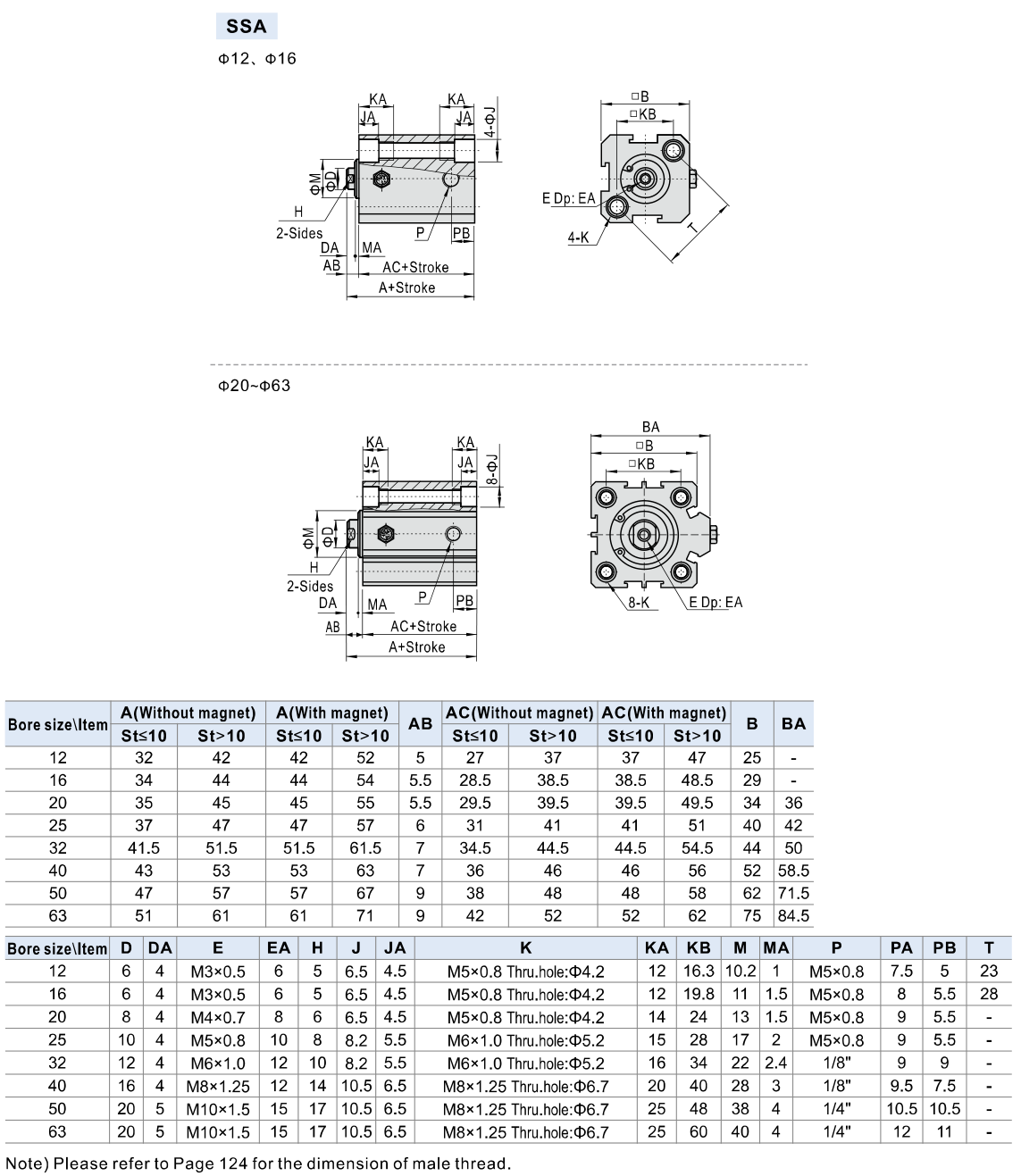

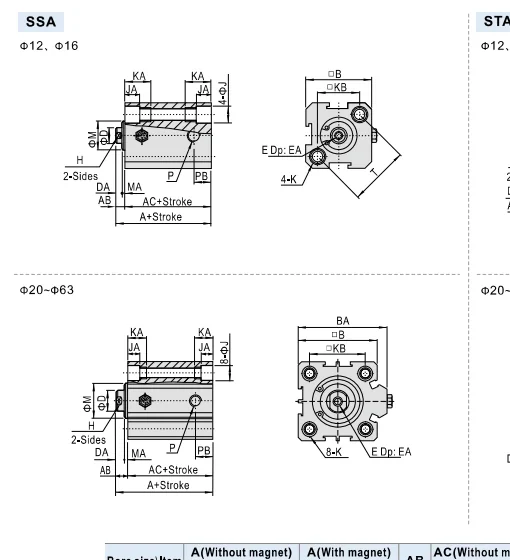

SSA installation drawing with shared SSA/STA dimension tables
Helpful for Model Matching:
- Full SSA code or label
- Required push direction and return behavior
- Bore and working stroke
- Rod-end, mounting and installed clearance
- Single-acting push motion: compare it with the installed cylinder
- Compare bore, stroke, port position, mounting holes, and rod-end thread
- Use the drawing for the working direction and installed clearance
Catalogue Technical Specifications
| Port sizes by bore | 12/16/20/25: M5×0.8; 32/40: PT1/8; 50/63: PT1/4 |
| Stroke tolerance | +1.0/0 mm for listed standard strokes |
| Proof pressure | 1.5 MPa (15 bar) |
| Temperature | −20 to +70 °C |
| Medium | Air filtered through a 40 μm filter element |
| Speed range | 50–500 mm/s |
| Cushion | Bumper |
| Series family | SDA compact-cylinder family |
| Acting type | Single acting, push type |
| Bore sizes | 12, 16, 20, 25, 32, 40, 50, 63 mm |
| Working pressure | 0.2–1.0 MPa (28–145 psi / 2.0–10 bar) |
| Standard stroke | 5, 10, 15, 20, 25, 30 mm |
| RFQ details | Family code, bore, stroke, rod end and installed dimensions |
