AirTAC STA Single-Acting Pull Compact Cylinder
STA is the single-acting pull member of the SDA compact-cylinder family. For an RFQ, send the...
Official reference
Based on manufacturer documentation
Model support
For model confirmation
Parts lists
Code, photo, or BOM
Availability / lead time
By model and quantity
Sourcing route & inquiry details
STA is the single-acting pull member of the SDA compact-cylinder family. For an RFQ, send the code or label with the required pull direction, bore, and stroke.
Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.
Match an SDA model code
If you know the full code, enter it here to quickly find the matching configuration. If unsure, send a photo or label.
Part of the SDA Series family.
View family overview →Installation Drawings & Technical Specifications

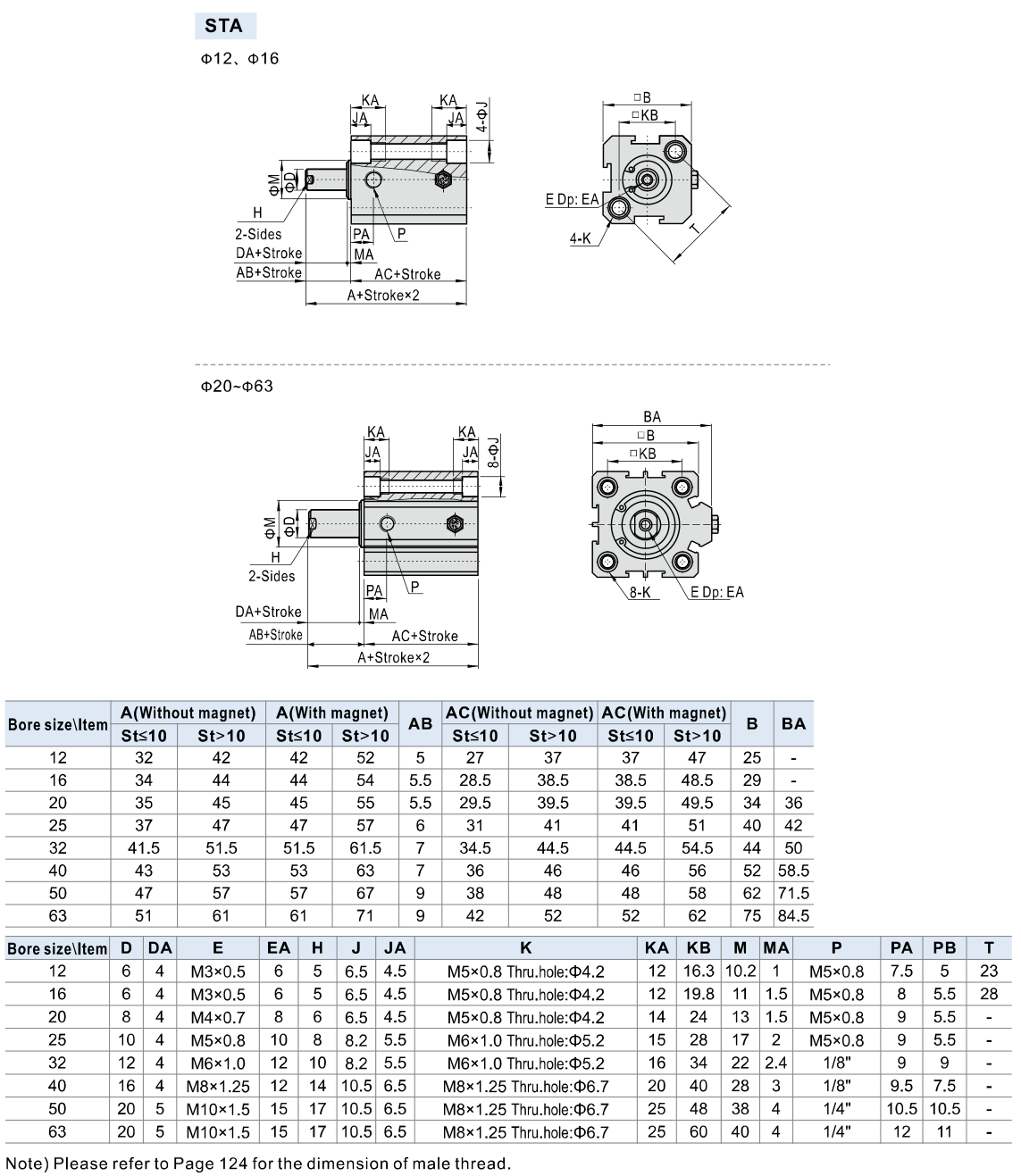

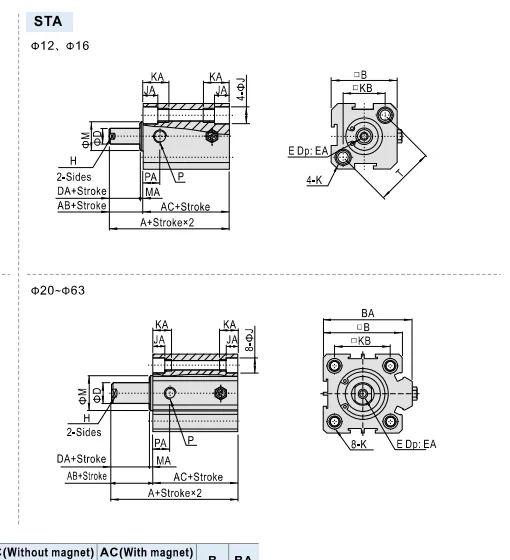

STA installation drawing with shared SSA/STA dimension tables
Helpful for Model Matching:
- Full STA code or label
- Required pull direction and return behavior
- Bore and working stroke
- Rod-end, mounting and installed clearance
- Single-acting pull motion: compare it with the installed cylinder
- Compare bore, stroke, port position, mounting holes, and rod-end thread
- Use the drawing for the working direction and installed clearance
Catalogue Technical Specifications
| Port sizes by bore | 12/16/20/25: M5×0.8; 32/40: PT1/8; 50/63: PT1/4 |
| Stroke tolerance | +1.0/0 mm for listed standard strokes |
| Proof pressure | 1.5 MPa (15 bar) |
| Temperature | −20 to +70 °C |
| Medium | Air filtered through a 40 μm filter element |
| Speed range | 50–500 mm/s |
| Cushion | Bumper |
| Series family | SDA compact-cylinder family |
| Acting type | Single acting, pull type |
| Bore sizes | 12, 16, 20, 25, 32, 40, 50, 63 mm |
| Working pressure | 0.2–1.0 MPa (28–145 psi / 2.0–10 bar) |
| Standard stroke | 5, 10, 15, 20, 25, 30 mm |
| RFQ details | Family code, bore, stroke, rod end and installed dimensions |
Ordering Codes, Fit Verification & Specifications
Ordering code matching
Match each code segment
Code format
STA [bore] × [stroke] [S] [B] [PT]Published code layout; S and B are optional positionsSTA 20 × 30 S B [PT]Code exampleSTA 20 × 30 S B [PT]| ①Model | ②Bore (mm) | ③Stroke | ④Adjustable stroke | ⑤Magnet | ⑥Rod type | ⑦Thread type |
|---|---|---|---|---|---|---|
| STA: Single acting, pull type | 12, 16, 20, 25, 32, 40, 50, 63 mm | 5, 10, 15, 20, 25, 30 mm | No code at this position | Blank: without magnet S: with magnet | Blank: female thread B: male thread | Blank: PT |
Quick check
Can STA be replaced by SSA if the dimensions match?
Not on dimensions alone. STA is the pull version and SSA is the push version, so the required motion comes first.
Can I send a photo when the code is incomplete?
Yes. Send the readable label, a clear photo of the cylinder and rod end, plus the installed dimensions and required motion. This allows the family and configuration to be checked before quotation.
