Fits when
- A compact-height cylinder is required with a published large bore
- The installed code or drawing identifies an ACT body
AirTAC sourcing reference•Ultra-Thin Cylinders
SERIESACT
AirTAC ACT Series Large-Bore Ultra-Thin Cylinders
Source ACT large-bore, double-acting compact cylinders. Send a known model for a quote, or...
Official reference
Based on manufacturer documentation
Model support
For model confirmation
Parts lists
Code, photo, or BOM
Availability / lead time
By model and quantity
Sourcing route & inquiry details
Source ACT large-bore, double-acting compact cylinders. Send a known model for a quote, or start with a label/photo. Bores: 125/140/160/200/250 mm; Ø250 uses B male rod thread.
Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.
Request type
AirTAC originalModel matchingChina-source alternative
Match an ACT model code
Enter the code from the label. Case, spaces, ×/x, and ordinary hyphens work.
Drawings & dimensions
Installation Drawings & Technical Specifications
Compare installed dimensions

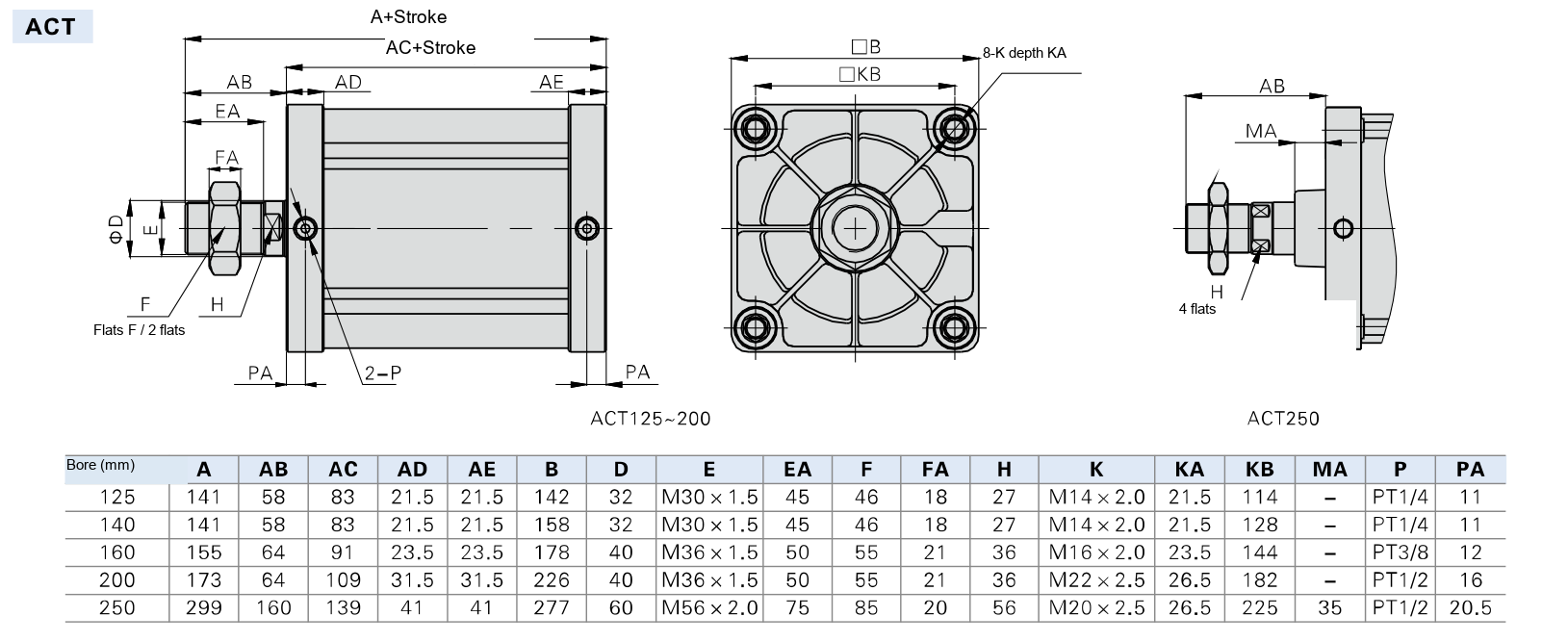

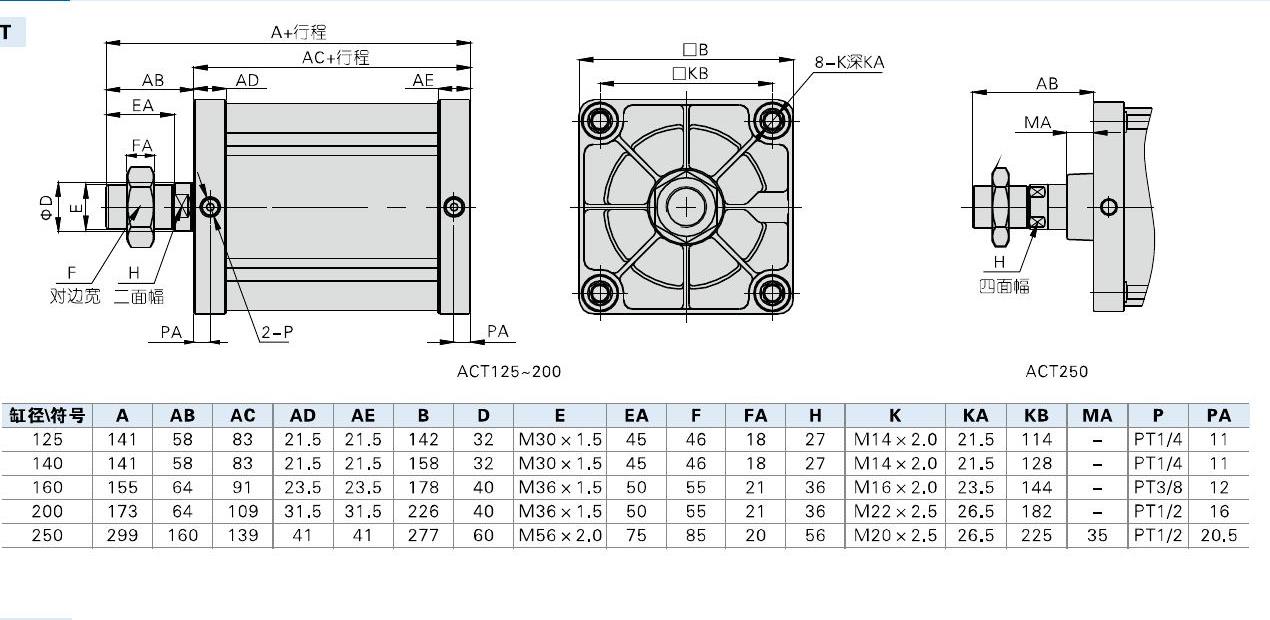

ACT Ø125–250 male rod-end dimensions; translated labels, original dimensions
Helpful for Model Matching:
- Full ACT model code or cylinder label
- Published bore: 125, 140, 160, 200, or 250 mm
- Required stroke from the published 25–500 mm table
- Port, rod-end style, mounting-hole pattern, and installed clearance
- Use the ACT drawing for the matching bore; ACQ big-bore dimensions are separate
- Ø250: B male rod end only; female rod-end drawing: Ø125–200
- Compare ports, mounting-hole pattern, rod thread and installed clearance where fit matters
- Mounting torque and procedure: official printed page 139; provide fixture details for help
Catalogue Technical Specifications
| Acting type | Double acting |
| Published pressure range | 0.15–1.0 MPa (22–145 psi) |
| Proof pressure | 1.5 MPa (215 psi) |
| Operating temperature | −20 to 70 °C |
| Published speed range | 30–500 mm/s |
| Published bores | 125, 140, 160, 200, 250 mm |
| Standard strokes | 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500 mm; special strokes: inquire / Sonderhub: anfragen |
| Ports | Ø125/140: 1/4; Ø160: 3/8; Ø200/250: 1/2. PT default / Standard; G option. |
| Rod end | Ø125–200: female or B male / Innen- oder B-Außengewinde; Ø250: B male only / nur B-Außengewinde |
| Stroke tolerance | ≤100 mm: +1.0/0 mm; >100 mm: +1.5/0 mm |
| Medium / cushion | Air filtered at 40 μm or finer; bumper / Luftfilterung 40 μm oder feiner; Anschlagpuffer |
Common Model Codes & Configurations:Useful for an RFQ
ACTACT 125 × 50 S B [PT]ACT-125x50SBACT-S
Technical reference & selection notes
Ordering Codes, Fit Verification & Specifications
Ordering code matching
Match each code segment
Code format
ACT [125/140/160/200] × [stroke] [S] [B] [G]Blank magnet: without magnet; blank rod end: female; blank thread: PT.ACT 250 × [stroke] [S] B [G]Ø250 lists B male rod thread only; G optional, PT default.ACT 125 × 50 S B [PT]ACT 250 × 500 S B [G]| ①Series | ②Bore (mm) | ③Stroke (mm) | ④Options | ⑤Port thread |
|---|---|---|---|---|
| ACT: double-acting large-bore ultra-thin cylinder | 125, 140, 160, 200, 250 | 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500 | Blank: without magnet; S: with magnet. Ø125–200: blank female / B male rod thread. Ø250: B male only. | Blank: PT; G: G-thread option. |
Avoid a wrong match
- Do not select by body height alone: ACT starts at 125 mm bore
- ACT-S in a label identifies the magnetic option, not a separate indexed product family
- Port size and mounting dimensions change across the published bore sizes
- Ø250 is listed only with B male rod thread; the female rod-end drawing covers Ø125–200.
- Port size: Ø125/140 1/4; Ø160 3/8; Ø200/250 1/2. Blank thread: PT; G option. NPT is not listed.
Read the model code
If the label is incomplete, send the readable parts together with a photo.
ACT 125 × 50 S B [PT]ACTSeries
Large-bore, double-acting ultra-thin cylinder series.
125Bore
Published bores are 125, 140, 160, 200, and 250 mm.
50Stroke
Published standard strokes run from 25 to 500 mm; verify the installed travel.
SMagnet option
Blank: without magnet; S: with magnet.
BRod-end style
Ø125–200: blank female rod thread or B male rod thread. Ø250: B male rod thread only.
[PT/G]Port thread
Blank: PT thread; G: G-thread option.
About ACT
ACT is a double-acting large-bore compact cylinder with bore-dependent ports and rod ends. It is a separate series from ACQ big-bore configurations; compare the matching ACT drawing where installed fit matters. A known model can be quoted directly; an incomplete label is enough to start identification.
Matching Questions
Can I request an ACT quote with an incomplete model?
Yes. Send the known code or a label/photo and add quantity and destination if available. For replacement fit, include mounting and installed dimensions; Ø250 uses B male rod thread in the published guide.
Is ACT-S a separate cylinder family?
No. In the published ACT ordering code, S marks the magnetic option. It is matched as a code option on the ACT family page, not as a separate product page.
ACT
Include this series in a project RFQ
ACT Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
Confirm inspection requirements before quotationSpecify shipping preferenceConfirm timing in the quotationOcean & Rail Available
