AirTAC GVF Vacuum Filters
GVF is a 200 and 300 series vacuum filter family. Confirm body size, port, bowl material, filter grade, bracket and thread before RFQ.
Request type
AirTAC originalModel matchingChina-source alternative
GVFVacuum Components
Ordering code matching
Match each code segment

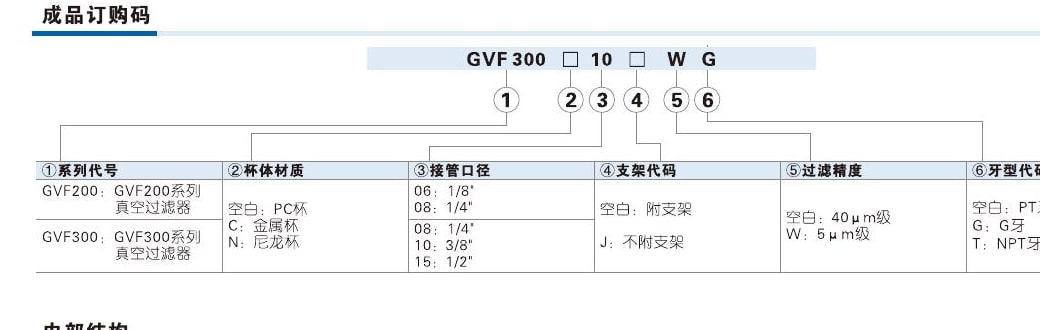

Code format
GVF [200/300] [06/08/10/15] [bowl] [bracket] [blank/W] [PT/G/NPT]Published GVF code layoutGVF200-06GVF300-10WG| ①Size / port | ②Bowl / bracket | ③Element / thread |
|---|---|---|
| 200 or 300; 06 PT1/8, 08 PT1/4, 10 PT3/8, 15 PT1/2. | Blank PC bowl; C metal; N nylon; blank with bracket or J without. | Blank 40 μm; W 5 μm; blank PT, G G-thread, T NPT. |
About GVF
GVF200 and GVF300 use a guided flow structure for vacuum filtration. Size, port, PC, metal or nylon bowl, bracket, 5 or 40 μm filter grade and thread are code-level choices on one canonical family page.
Product matching reference
Compare the photo, drawing, and measurable details first

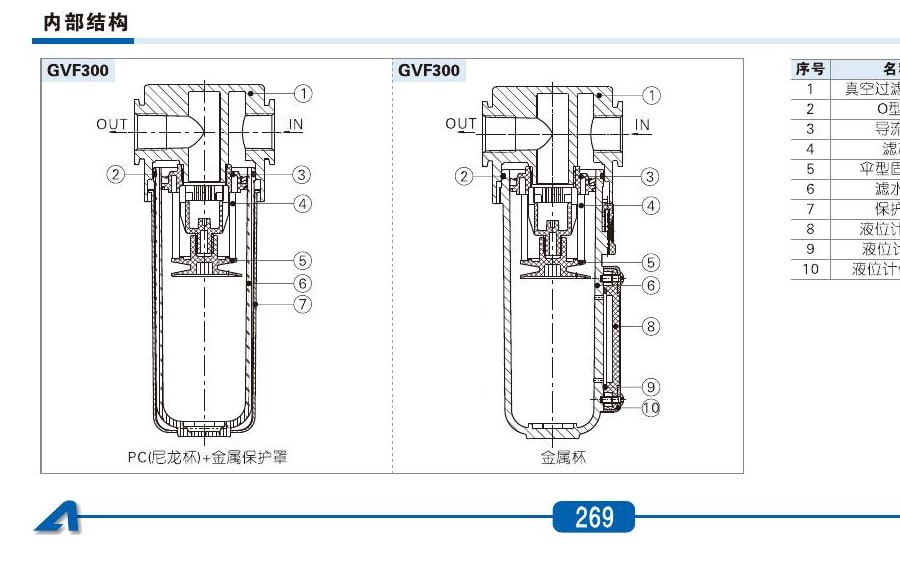

Drawing reference
- Confirm GVF200 or GVF300 vacuum filter
- Match port, PC/metal/nylon bowl, bracket, 5/40 μm element and thread
Key details for matching
Model patterns
- GVF200-06
- GVF200-08
- GVF300-08
- GVF300-10

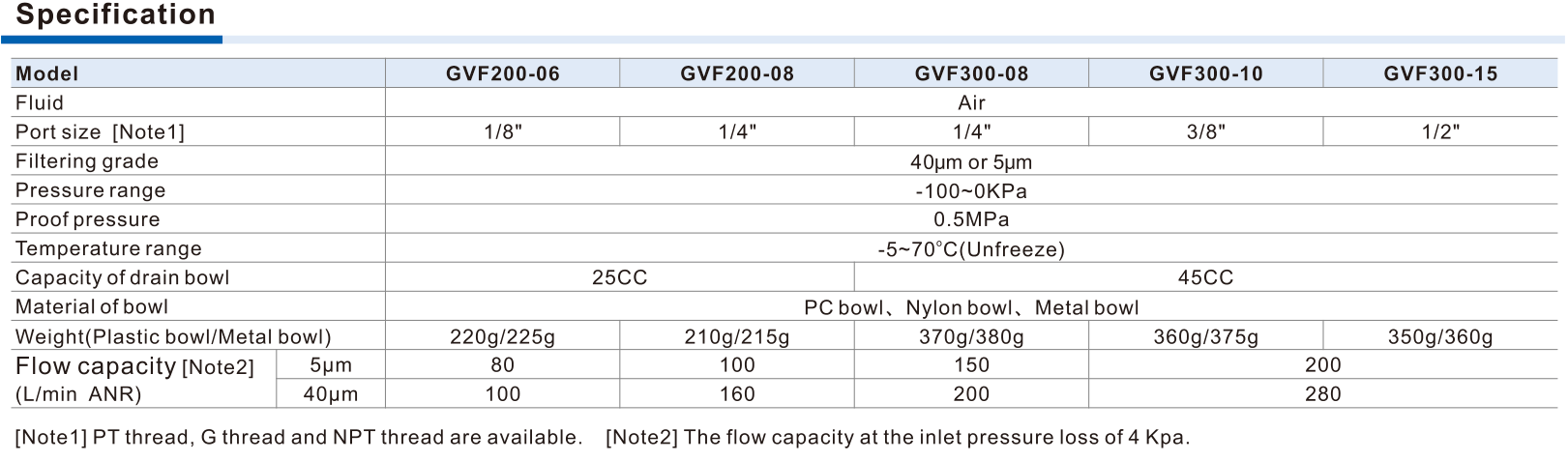

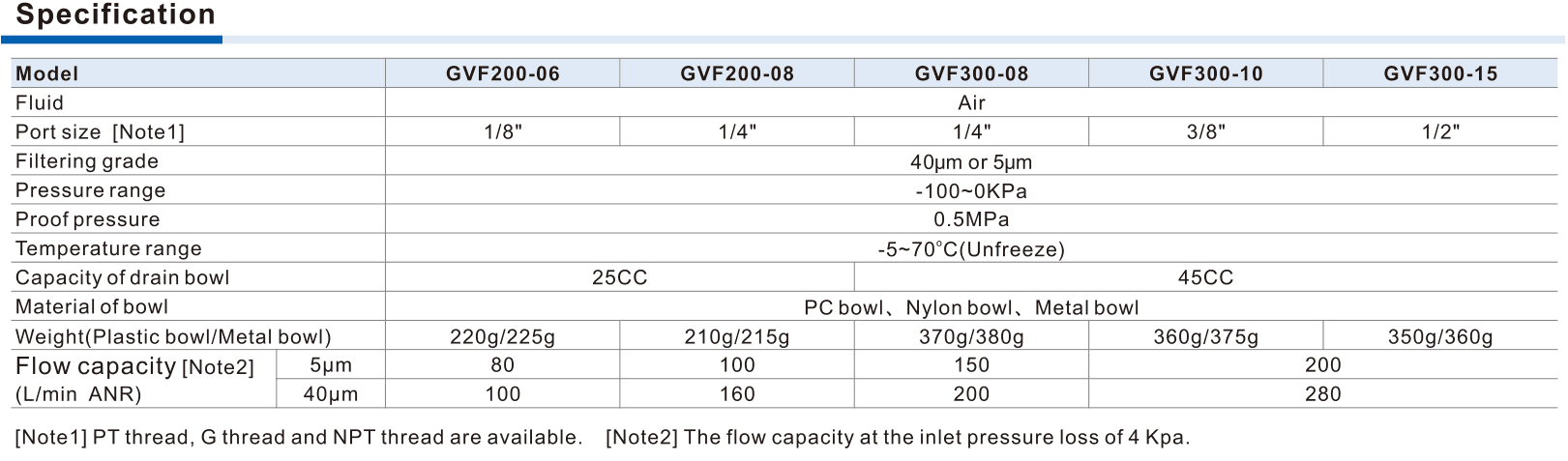

Reference details
- Product type: Vacuum filter
- Published vacuum range: −100 to 0 kPa
- Published element grades: 5 or 40 μm
- Reference pages: PDF pages 1–2
Matching Questions
Can a 5 μm GVF replace a 40 μm GVF by port size alone?
No. Filter grade is a published code field. Confirm the installed code, required filtration, bowl and port before RFQ.
