SERIES PBM / PBX

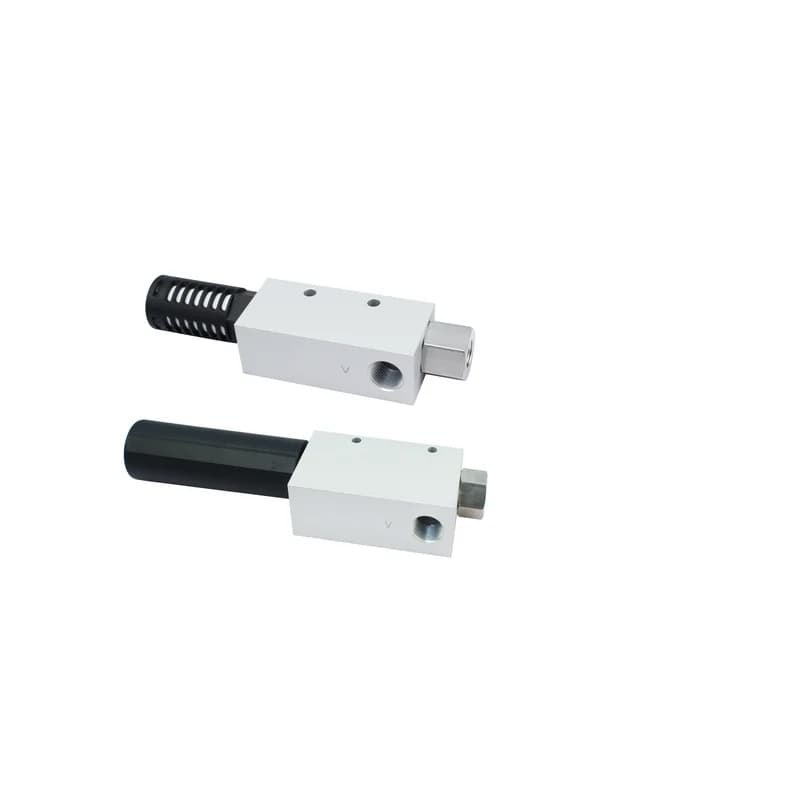

PBM / PBX miniature multi-stage vacuum generators
Compare standard and high-vacuum members, then specify size and exhaust arrangement. Send an...
Model confirmation
Application matching
Availability by enquiry
Multi-item BOM
Application and reference scope
Compare standard and high-vacuum members, then specify size and exhaust arrangement. Send an existing model or project requirements for confirmation.
Choose a family member
Both members remain within this family. Model text entered below is retained when comparing members.
Model or application enquiry
A complete model is optional. Send requirements, a photo or a parts list to start.
PBM5-B
Example: PBM5-B. Sizes 5 and 10: A/B/C; sizes 20 and 30: B/C. Valve, sensor and colour suffixes require configuration confirmation.
Technical reference
Reference data; dimensions and supply configuration are confirmed against the selected version. Send requirements for sizes or options not shown here.
| Field | Reference range |
|---|---|
| Medium | Dry compressed air |
| Supply pressure | 1–6 bar / 0.1–0.6 MPa |
| Reference supply pressure | 4.5 bar / 0.45 MPa |
| Temperature | 0–50 °C |
| Member vacuum reference | PBM: −85 kPa / PBX: −90 kPa |
Vacuum values are gauge pressure. Ultimate vacuum and maximum suction flow are different operating points. Flow and noise values are omitted while source inconsistencies are resolved.
Basic version: selected reference dimensions
PBM5-B · Without valve, sensor or filter. Source drawing: p.85; supply version to be confirmed.
- Axial body dimension
- 64 mm
- Body width
- 30.5 mm
- Body height
- 20 mm
Selected dimensions only. Tolerances, ports and mounting geometry must be checked against the complete drawing for the requested version.
PneuPart · Technical documents
Drawing and configuration
The form schematic shows the selection features. Dimensional, port and installation drawings are supplied against the confirmed delivery version.
Dimensional drawing
By enquiryRequest for the confirmed size and port variant.
Selection / ordering drawing
By enquiryConfirm code, options and supply scope together.
Send the model code, a photo or existing mounting dimensions together; a complete model is not required to start confirmation.
Request drawingWhat to send
Supply pressure, target vacuum, suction flow at that vacuum, ports, installation space, valve and signal options. Include quantity and destination. Availability and lead time are confirmed with the quotation.
