Coil voltage and power check
Replacement coils for 4V, 3V, VF, VP, VQ, SYJ, and similar pneumatic solenoid valves
Valve Coils
Valve coil RFQ matching by voltage, connector, and valve body fit
For pneumatic valve coil replacement requests, send the coil label, valve body model, or installed photo, then confirm voltage, connector style, power, valve series fit, and quantity before quotation.
DC24V / AC220VDIN / lead wire4V / 3V coilsLabel photoSpare parts
RFQ checklist
- Valve series and coil details, for example 4V, 3V, VF, VP, or a matching photo
- Voltage, power, connector type, and LED or surge suppression need
- Current coil label, valve body model, and installation environment
- Quantity, destination, urgency, and whether the valve body is also needed
Connector and wiring confirmation
Voltage and connector checks when DC24V, AC110V, AC220V, DIN, lead wire, or LED options must match
Valve body fit matching
Coil-only and valve-plus-coil requests for maintenance stock or installed machine repair
Valve coil details to confirm before quotation
| Series | 4V, 3V, VF, VP, VQ, SYJ, or photo-led matching |
|---|---|
| Voltage | DC12V, DC24V, AC110V, AC220V |
| Connector | DIN connector, lead wire, plug, LED, or surge option |
| Fit | Match valve body size, stem, and mounting direction |
| Use | Replacement coil only or coil with valve body |
Sourcing and availability
Check quantity, brand preference, and urgency before quotation
Model, photo, label, or BOM list can start the RFQ.
Fast-moving models can be checked for availability before quotation.
Bulk quantity, repeat replenishment, and mixed spare-part lists are supported.
AirTAC original sourcing and HKQD alternative quotation are reviewed separately.
Valve coil visual guide
Solenoid Coil

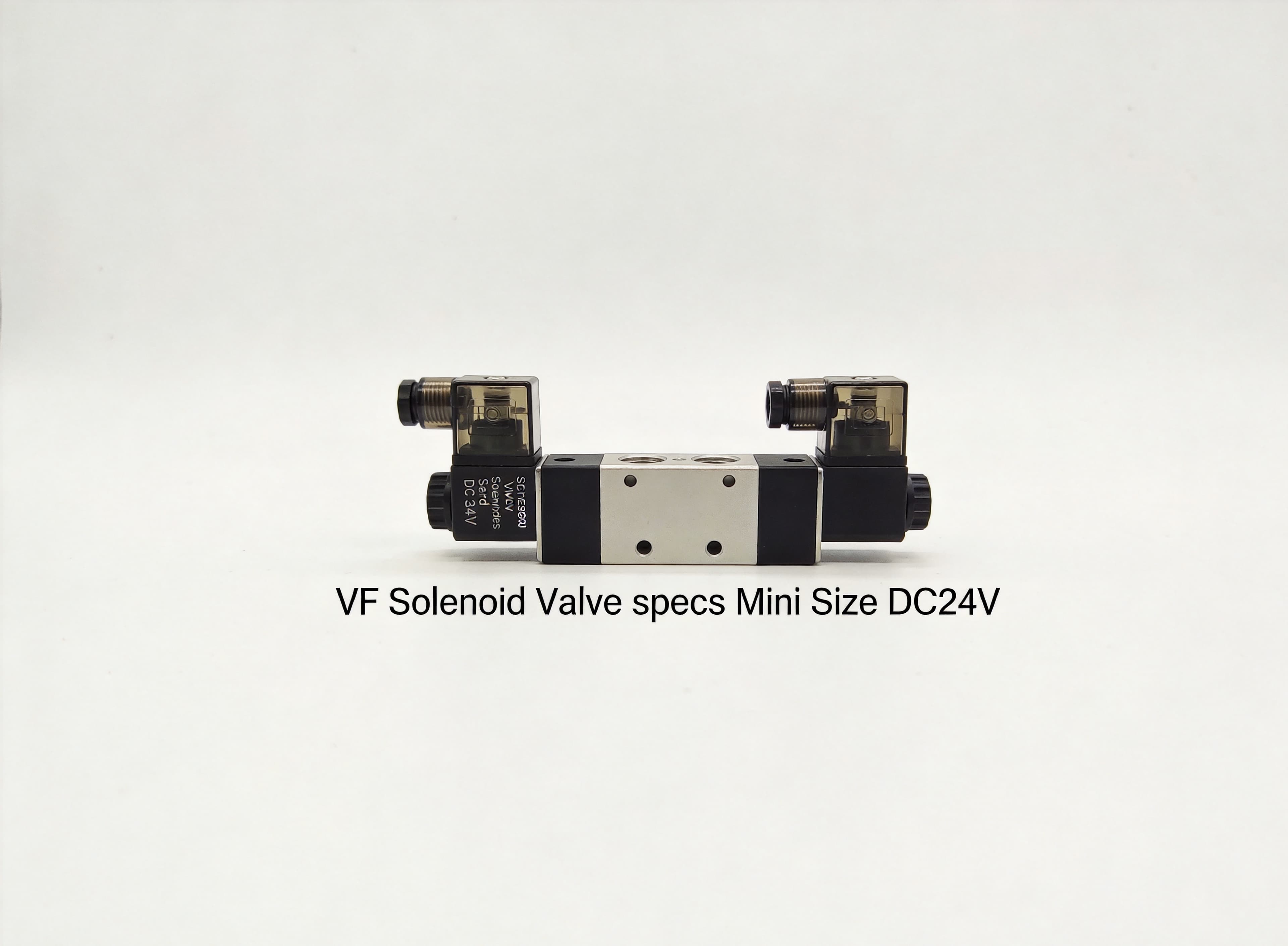

Solenoid Valve Vf
Port layout, control mode, and sealing structure.

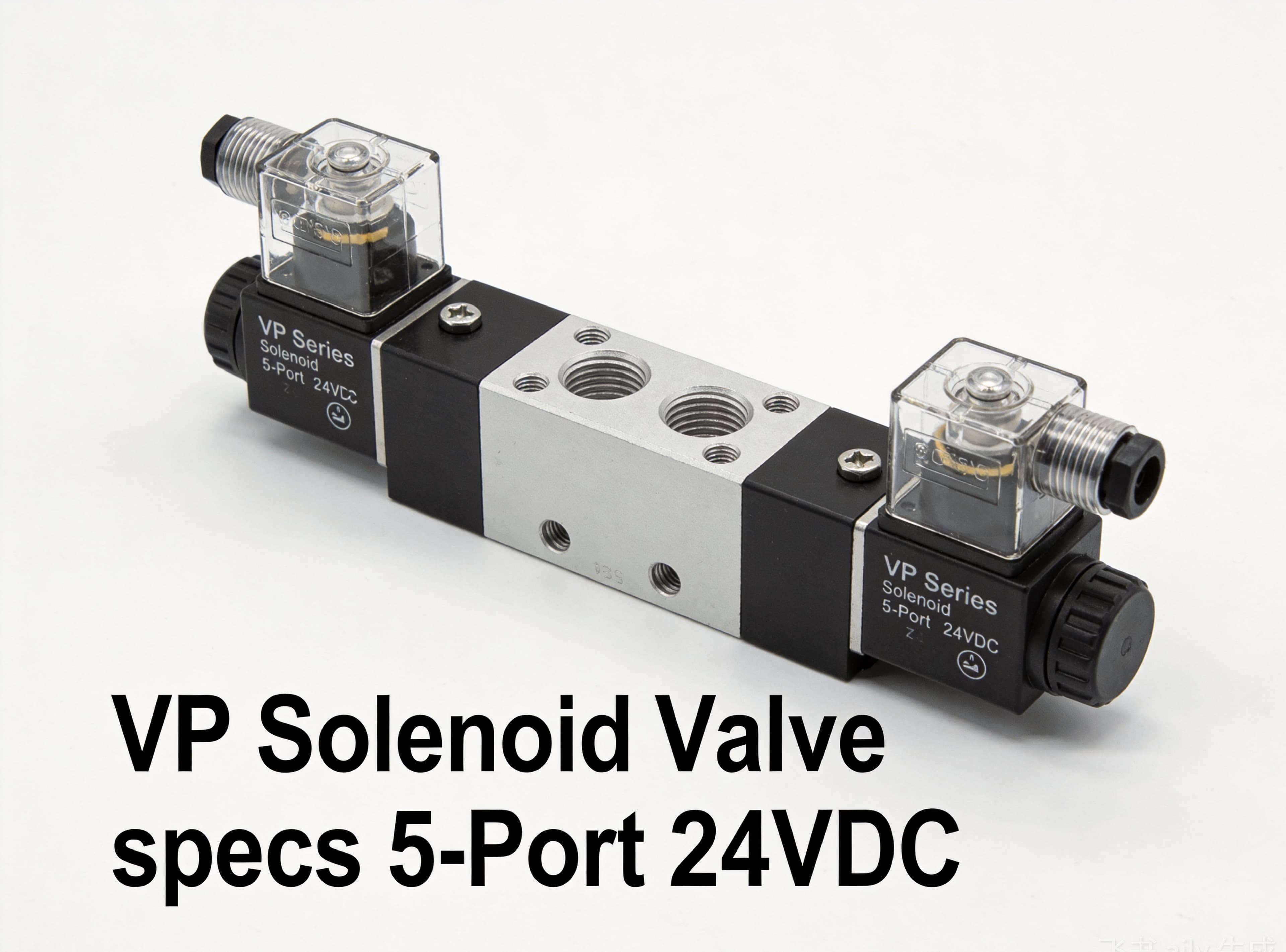

Solenoid Vp
