AirTAC 6SA Five-Port Air-Pilot Valves
6SA is a five-port, two-position and three-position air-pilot valve family. Confirm range, circuit, port, thread and any manifold-base requirement before RFQ.
Request type
AirTAC originalModel matchingChina-source alternative
6SAAir Pilot Valves
Ordering code matching

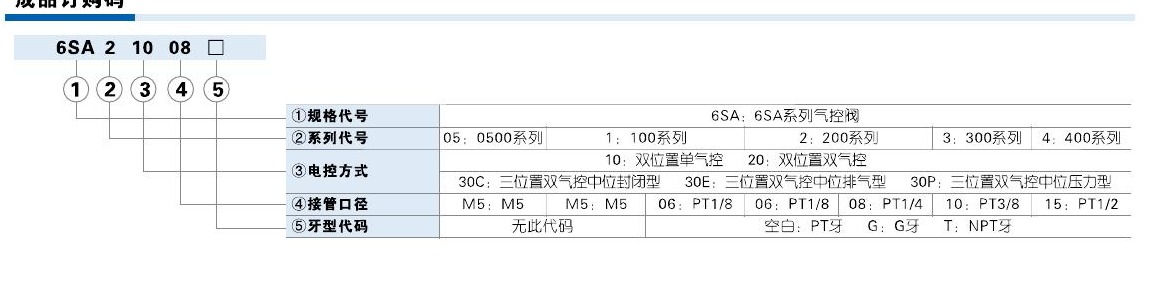

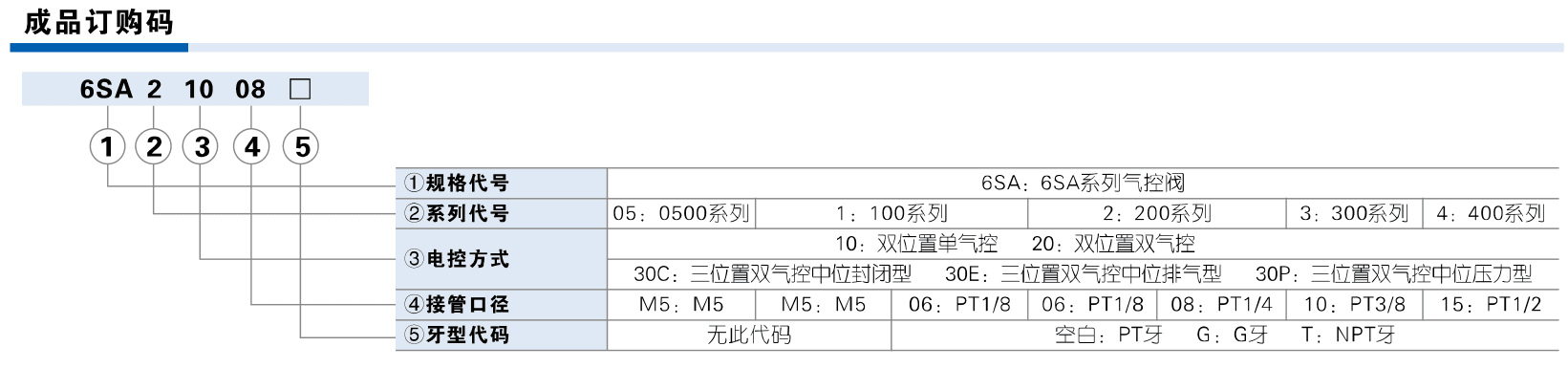

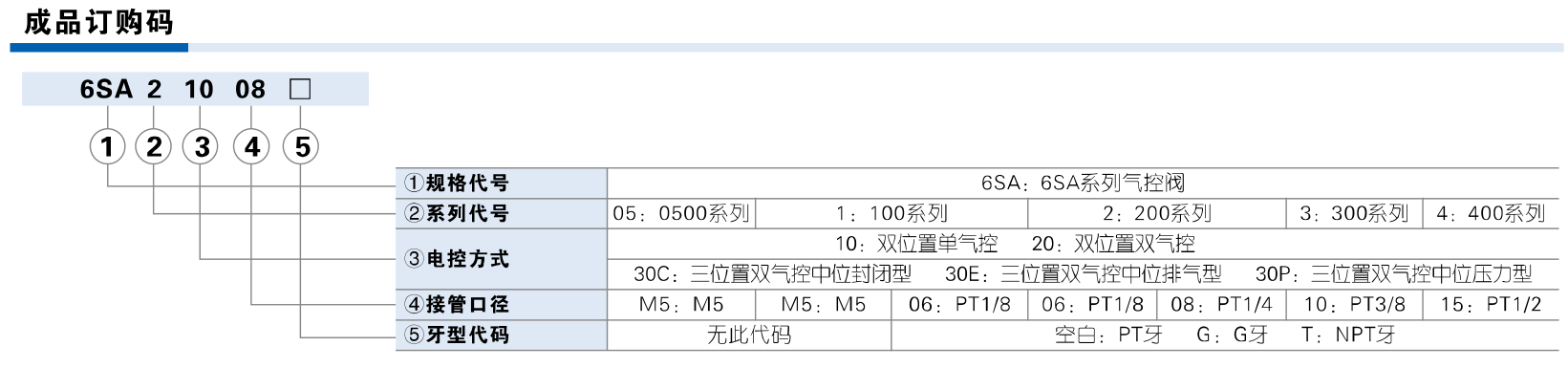

Match each code segment
Code format
6SA [05/1/2/3/4] [10/20/30C/30E/30P] [M5/06/08/10/15] [PT/G/NPT]Published 6SA valve code layout6SV[0500M/100M/200M/300M/400M] [1F–30F] [PT/G/NPT]Published 6SV manifold-base code layout6SA0510-M56SA120-066SA230-086SA430-156SV200M-5F| ①Range | ②Circuit | ③Port | ④Thread / base |
|---|---|---|---|
| 05: 0500; 1: 100; 2: 200; 3: 300; 4: 400. | 10/20 two-position; 30C closed centre, 30E exhaust centre, 30P pressure centre. | M5, 06 1/8, 08 1/4, 10 3/8, 15 1/2 as published by range. | Blank PT, G G-thread, T NPT; 6SV base uses its range and station code. |
About 6SA
6SA covers the published 0500, 100, 200, 300 and 400 ranges. The matching 6SV base must be treated as part of the installed assembly, not as a separate valve product.
Product matching reference
Compare the photo, drawing, and measurable details first
Drawing reference
- Confirm 6SA0500, 6SA100, 6SA200, 6SA300 or 6SA400 together with the installed valve or base
- Match 10/20/30C/30E/30P function, port code, PT/G/NPT thread and any 6SV manifold-base configuration
Key details for matching
Model patterns
- 6SA0500
- 6SA0510-M5
- 6SA120-06
- 6SA230-08
Reference details
- Product type: Five-port two-position and three-position air-pilot valve
- Published valve ranges: 0500, 100, 200, 300, 400
- Published operating pressure: 0.2–0.8 MPa for three-position; 0.15–0.8 MPa for other types
- Published temperature: −20 to +70 °C

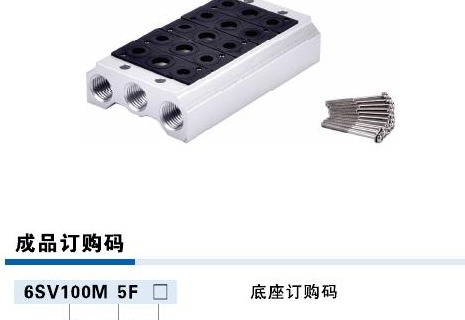

- Related manifold bases: 6SV0500M, 6SV100M, 6SV200M, 6SV300M, 6SV400M
- Reference pages: PDF pages 1–4
