6SV0500M / 6SV100M / 6SV200M / 6SV300M / 6SV400M
AirTAC 6SV Manifold Bases for 6SA / 6SV
Request a base alone or with valves. Send valve model, stations, thread, blank plates, quantity and destination.
Size and inlet matching
| Base | Valve | Inlet Q |
|---|---|---|
| 6SV0500M | 6SA050 / 6SV0500 | 1/8 |
| 6SV100M | 6SA100 / 6SV100 | 1/4 |
| 6SV200M | 6SA200 / 6SV200 | 1/4 |
| 6SV300M | 6SA300 / 6SV300 | 3/8 |
| 6SV400M | 6SA400 / 6SV400 | 1/2 |
Ordering field: 1F–30F; dimension tables: 1F–20F. Confirm larger assemblies and mixed sizes before installation. Do not assume interchangeability with 100M–400M for 4A or 3V bases.
6SA →Matching 6SV Solenoid Valves
6SA air-pilot valves and 6SV solenoid valves use different controls. Match the base size, then confirm installed dimensions and electrical clearance for the actual valve assembly.
6SV →Code and supply scope
6SV100M 5F G · 5 stations · G. Blank=PT; T=NPT. P-6SV100M-R2: blank-plate kit.
Base kit: manifold, seal, screws. Blank-plate kit: blank plate, screws. Specify valves and unused stations separately. Air filtered through 40 μm element; −20 to +70 °C. Separate base pressure is not stated: confirm assembly conditions together.

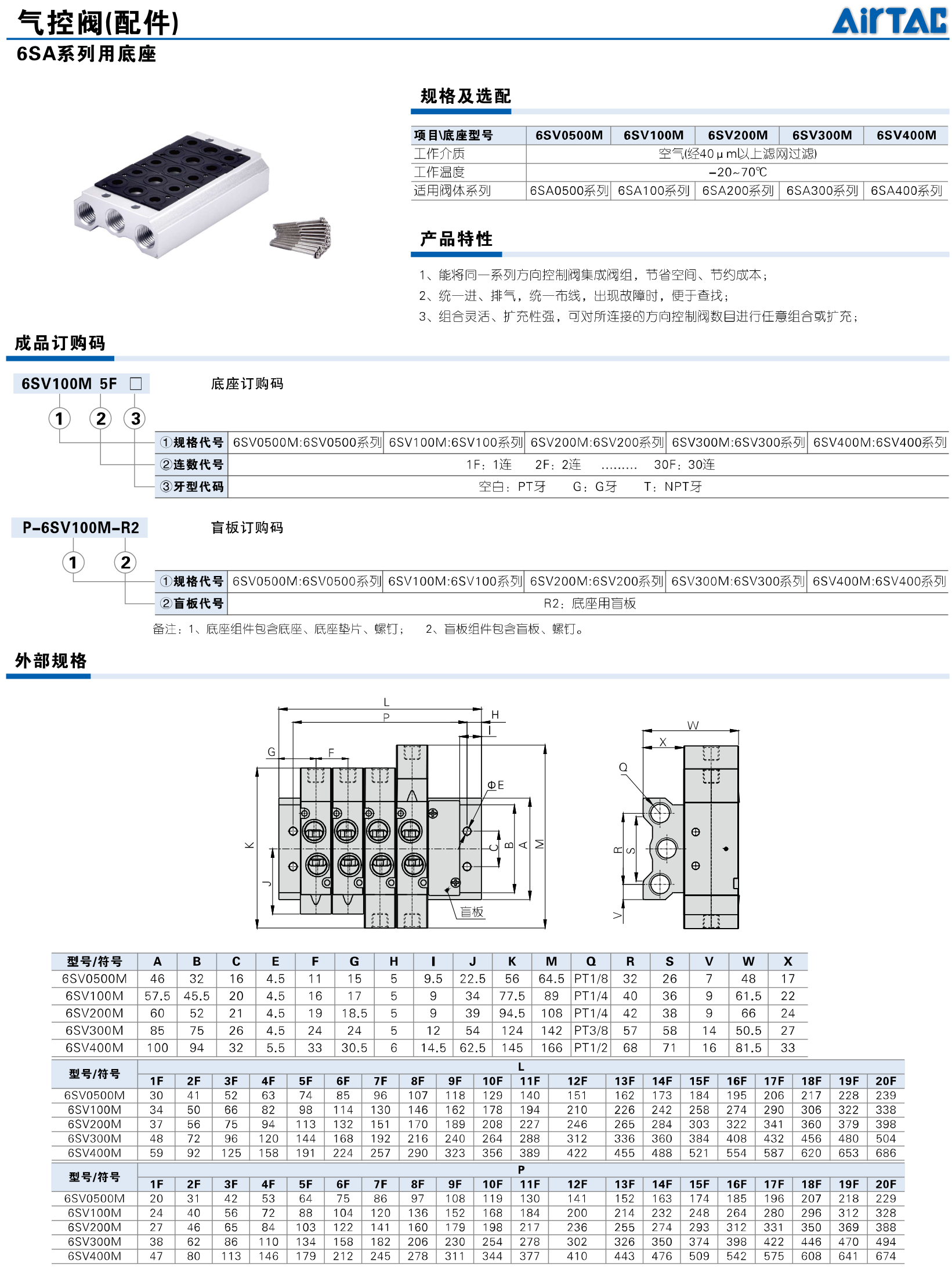

AirTAC official Chinese catalogue, printed page 139 · Confirm availability and supply scope through your inquiry.

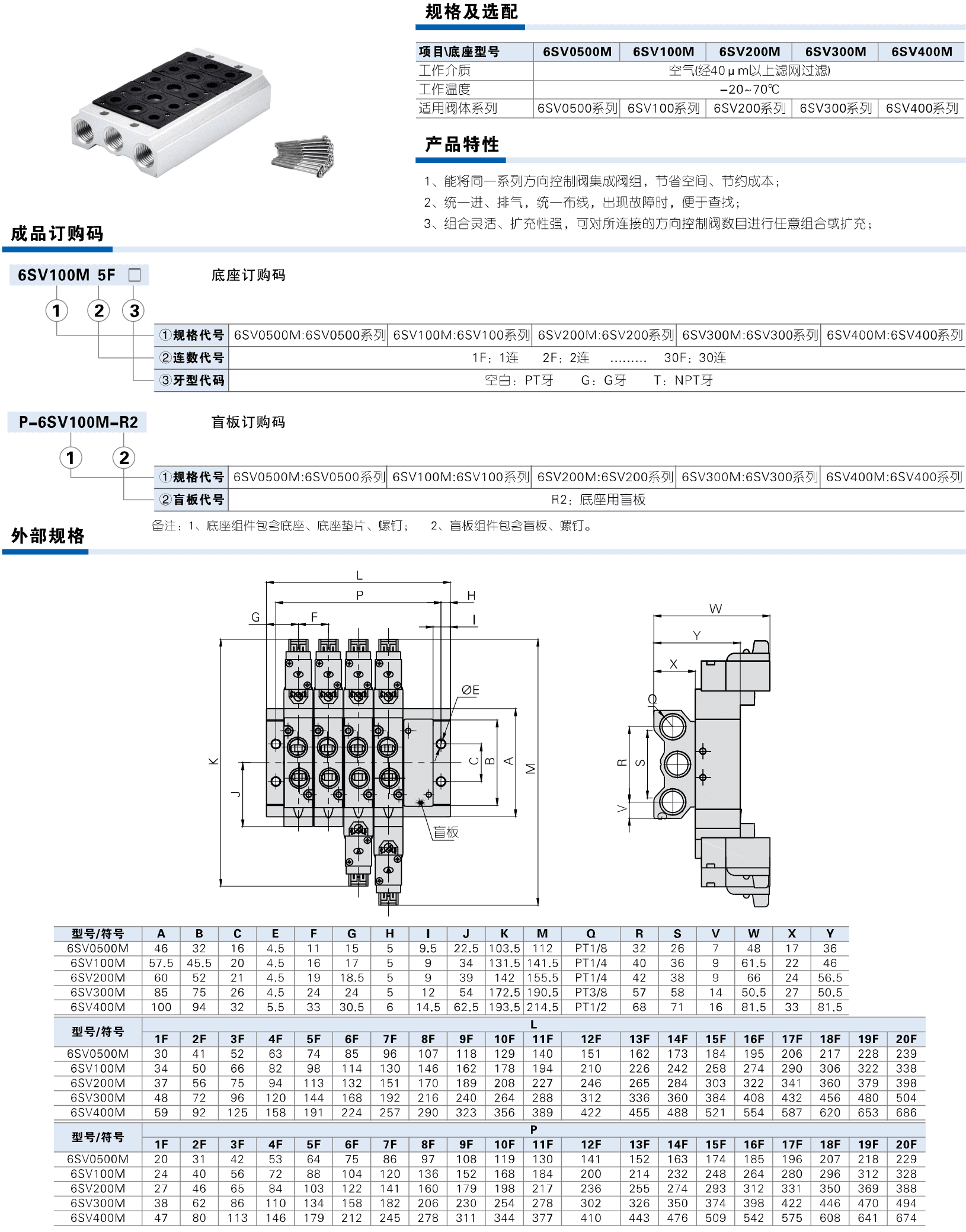

Assembly Reference with 6SV Solenoid Valves
6SV0500 is the smallest solenoid-valve size; complete valve codes start with 6SV05. Air-pilot and solenoid reference drawings describe their respective complete assemblies, without establishing identical installed dimensions.
